Summarization of Contents
1 DRO description

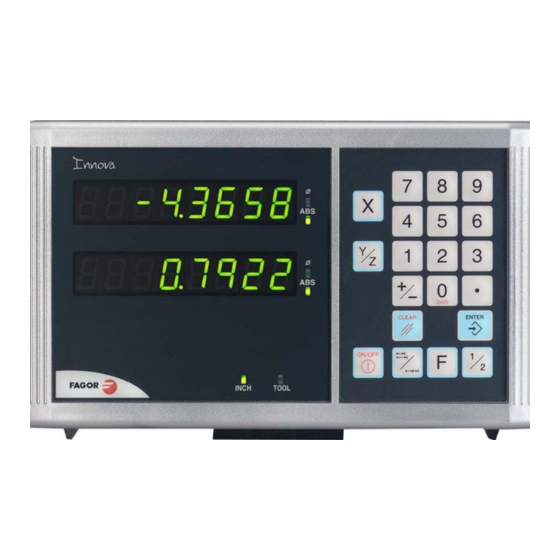

1.1 Front panel
Details the front panel layout, LEDs, and keys for operating the DRO unit.
1.2 Turning the unit on and off
Explains the procedure for powering the digital readout unit on and off, including precautions.
2 DRO operation
2.1 Display modes
Covers display modes like MM/INCH, resolution, decimal points, and radius/diameter.
2.2 Incremental, absolute and with respect to Machine Reference Zero
Explains coordinate systems: incremental, absolute, and home reference modes for axis positioning.
2.3 Machine Reference selection and search
Details how to set machine zero points using reference marks and home search sequences.
2.4 Operating with tools
Guides on entering and compensating for tool length during machining operations.
2.5 Special operations
Covers special functions like scaling factor and part centering for specific applications.
3 DRO installation
3.1 Installation of the built-in model
Provides dimensions and instructions for installing the DRO unit within an enclosure.
3.2 Rear panel
Describes the connectors and components found on the rear panel of the DRO unit.
3.3 General technical characteristics
Lists key technical specifications including power, temperature, humidity, and sealing.
3.4 Connections
Details the feedback system connection via SUB-D HD connectors and input characteristics.
3.5 Easy setup
Guides through the 'Easy Setup' mode for configuring feedback, resolution, and direction.
3.6 Installation parameters
Explains the system of installation parameters for configuring the DRO for specific applications.
3.7 Parameters to configure axis position reading and display
Details parameters for configuring axis display, feedback resolution, and counting direction.
4 Appendix
4.1 UL seal
Provides information and reference for the UL certification seal on the unit.
4.2 CE seal
Details the CE certification and includes the Declaration of Conformity.
4.2.2 Safety conditions
Outlines essential safety measures to prevent damage to personnel and equipment.
4.2.3 Warranty terms
Explains the warranty period, coverage, and excluding clauses for the DRO product.
4.2.4 Material returning terms
Provides instructions for packing and returning the unit for repair or other purposes.
4.3 Error codes
Lists and explains various error codes that may appear on the DRO display.
4.4 Maintenance
Offers guidance on cleaning the equipment and performing preventive inspections.
