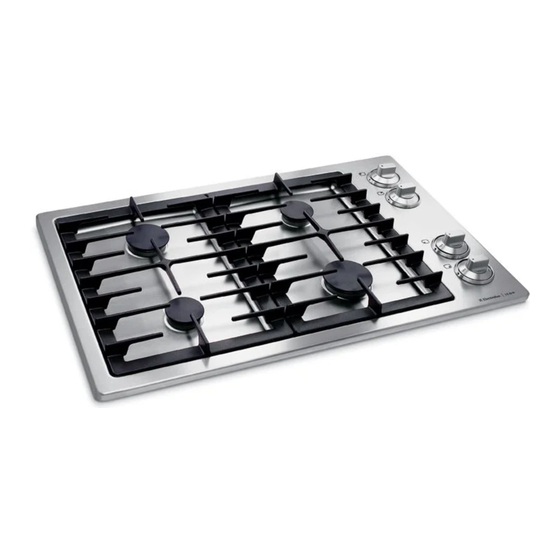

Electrolux E46GC67ESS - 46" Sealed Burner Gas Cooktop Installation Instructions Manual

Installation instructions
Hide thumbs

Advertisement

I n s t a l l a t i o n I n s t r u c t i o n s
I n s t a l l a t i o n I n s t r u c t i o n s
I n s t a l l a t i o n I n s t r u c t i o n s
I n s t a l l a t i o n I n s t r u c t i o n s
I n s t a l l a t i o n I n s t r u c t i o n s
E30GC64ESS
E36GC65ESS
C o o k t o p
E46GC66ESS
E46GC67ESS
5995426250

Advertisement

loading

  Related Manuals for Electrolux E46GC67ESS - 46" Sealed Burner Gas Cooktop

  Summary of Contents for Electrolux E46GC67ESS - 46" Sealed Burner Gas Cooktop

  • Page 1 I n s t a l l a t i o n I n s t r u c t i o n s I n s t a l l a t i o n I n s t r u c t i o n s I n s t a l l a t i o n I n s t r u c t i o n s I n s t a l l a t i o n I n s t r u c t i o n s I n s t a l l a t i o n I n s t r u c t i o n s...
  • Page 2: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS Safety Precautions Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Warning or Caution based on the risk type. Definitions This is the safety alert symbol.
  • Page 3: Safety Precautions

    Safety SAFETY PRECAUTIONS WARNING WARNING WARNING WARNING WARNING • Read all instructions before using the appliance. • Improper installation, adjustment, alteration, service, or maintenance can cause personal injury or property damage. Refer to these instructions and the accompanying Use & Care Manual. For assistance or additional information, consult a qualified installer, service agency, manufacturer (dealer), or the gas supplier.
  • Page 4 Safety WARNING WARNING WARNING WARNING WARNING • Based on safety considerations, the top burner flame should be adjusted so it does not extend beyond the edge of the cooking utensil. • Cooking utensils should not be used on the open top broiler section. •...
  • Page 5: Finding Information

    For toll-free telephone support in the U.S. and Canada: 1-877- 4ELECTROLUX (1-877-435-3287) For online support and Internet product information: www.electroluxusa.com ©2005 Electrolux Home Products, Inc. Post Office Box 212378, Augusta, Georgia 30917, USA All rights reserved. Printed in the USA...
  • Page 6: Table Of Contents

    Finding Information TABLE OF CONTENTS Safety ..............2 Definitions ............2 Important Safety Instructions ......2 Safety Precautions ..........3 Finding Information ........... 5 Please Read And Save This Guide ....5 Questions? ............5 Table Of Contents ..........6 Preparing for Installation ........
  • Page 7: Preparing For Installation

    Preparing for Installation VERIFY PACKAGE CONTENTS • Use & Care Manual • Cleaning Kit • Hold Down Bracket Kit • Grill Drip Pan (E46GC67ESS only) • Grate/Burner Cap Pack • Grill U-Burner (E46GC67ESS only) • Burner Set • Grill Heat Control Channels (E46GC67ESS only) •...
  • Page 8 Preparing for Installation IMPOR IMPOR IMPORT T T T T ANT IMPOR IMPOR • When installing the cooktop into a laminated (Formica, etc.) or synthetic (Corian, etc.) countertop, radius the corners of the cutout to prevent cracking of the countertop. •...
  • Page 9 Preparing for Installation Figure 3 4" (102mm) 21" Chassis height (533mm) 30" (762mm) 1/4" (6mm) Min. to combustibles Vertical below chassis combustible surface Rear 7 1/2" (191mm) Min. wall to combustible 3 1/8" side wall above (79mm) the cooktop 2 1/4" 27 1/2"...
  • Page 10: Making The Gas/Electric Connection

    Making the Gas/Electric Connection REQUIREMENTS WARNING WARNING WARNING WARNING WARNING • If the gas or electric service provided does not meet the product specifications, do not proceed with the installation. Call the selling dealer, the gas supplier, or a licensed electrical or plumbing contractor. •...
  • Page 11 Making the Gas/Electric Connection Gas and Electrical Supply Requirements The correct voltage, frequency and amperage must be supplied to the appliance from an isolated, grounded circuit which is protected by a properly sized circuit breaker or time-delay fuse. The cooktop must be connected to the power supply with copper wire only. The use of aluminum wire may result in unsatisfactory connections.
  • Page 12: Installation

    Installation INSTALLING THE COOKTOP Place and center the cooktop within the cutout. Secure the Figure 6 cooktop to the countertop utilizing the two (2) hold-down brackets provided. Do not overtighten the screws. See Figure 6. IMPOR IMPORT T T T T ANT IMPOR IMPOR IMPOR...
  • Page 13: Gas And Electric Requirements Table

    Installation GAS AND ELECTRIC REQUIREMENTS TABLE Refer to the following table for more information on gas and electric requirements. Model No. Electrical Total Gas type Manifold Minimum gas circuit connected pressure supply required load pressure Natural 4” Water Column 5” Water Column E30GC64ESS Natural 4”...
  • Page 14: Installing The Burner Components

    Installation INSTALLING THE BURNER COMPONENTS WARNING WARNING WARNING WARNING WARNING Never attempt to operate the cooktop with any of the burner rings, burner caps, grates or grill components removed. Burner Components Remove the brass burner rings, porcelain burner caps, and porcelain grates from their shipping packages.
  • Page 15: Making The Electrical Connection

    Installation MAKING THE ELECTRICAL CONNECTION WARNING WARNING WARNING WARNING WARNING • Ensure that the power supply is disconnected before proceeding. • Verify that the power supply matches the ratings found on the appliance data plate before proceeding. • The complete appliance must be properly grounded at all times when electrical power is applied.
  • Page 16: Operation

    Operation VERIFYING THE OPERATION WARNING WARNING WARNING WARNING WARNING • If the cooktop fails to operate properly, ensure that the electrical power supply and gas supply are turned on and that all installation steps have been carefully followed. Call a qualified service technician if the cooktop still does not operate properly.
  • Page 17 Operation Turn on the main gas supply to the cooktop by opening the gas shut-off valve. Test each burner separately by pressing and turning one control knob at a time counterclockwise to the “HI/LITE” position. All ignitors will spark simultaneously. (It will take approximately four seconds for ignition to occur, at which time all igniters will stop sparking.
  • Page 18 www.electroluxusa.com 1-877-4Electrolux www.electroluxca.com...
  • Page 19 Instructions for converting cooktop to operate on Liquefied Petroleum Gas INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: SAVE FOR BUILDING INSPECTORS USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. CAUTION This conversion kit must be installed by a qualified service technician in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 20 Instructions for converting cooktop to operate on Liquefied Petroleum Gas REFER TO THE TABLE FOR YOUR MODEL NUMBER AS IDENTIFIED IN STEP 1. ORIFICE SIZES ARE IN MILLIMETERS X 100 AND SHUTTER GAP IS IN INCHES. MODEL NUMBER: E30GC64ESS Kit PN: 76061-1 Burner Position Main Orifice Bypass Orifice...
  • Page 21 Instructions for converting cooktop to operate on Liquefied Petroleum Gas Tools required for LP Conversion: 1/8” FLAT BLADE SCREWDRIVER 10 MM OPEN END WRENCH 6” INCH/METRIC POCKET RULE 8” LONG ADJUSTABLE WRENCH AND 6” LONG ADJUSTABLE WRENCH BURNER RING REMOVAL TOOL (PROVIDED IN CONVERSION KIT) STEP 3: NOTE: ASSURE COOKTOP HOLD DOWN BRACKETS ARE INSTALLED SECURELY PRIOR TO...
  • Page 22 Instructions for converting cooktop to operate on Liquefied Petroleum Gas STEP 4: REPLACE THE MAIN ORIFICES AT EACH BURNER LOCATION WITH THE ORIFICE NUMBER LISTED IN THE TABLES ON PAGE 2. Refer to Figure 1 “ Burner Sizes and Identification” to assure the orifice is replaced at the correct location.
  • Page 23 Instructions for converting cooktop to operate on Liquefied Petroleum Gas STEP 6: REPLACE THE BYPASS ORIFICES WITHIN THE VALVE FOR EACH BURNER LOCATION WITH THE ORIFICE NUMBER LISTED IN THE TABLES ON PAGE 2. Refer to Figure 1 “ Burner Sizes and Identifi- cation”...
  • Page 24 Instructions for converting cooktop to operate on Liquefied Petroleum Gas STEP 8: ASSEMBLE IN REVERSE ORDER OF DISASSEMBLY. Leak test prior to operation. Verify inlet pressure, manifold pressure and proper operation of all burners. When satisfied that all burners are operating correctly, apply conversion label shown in Figure 7.
  • Page 25 Instructions for converting cooktop to operate on Liquefied Petroleum Gas Parts List for E Series Drop-in Cooktops P/N 76061-1, -2, -3, & -4 ITEM PART E46GC66ESS E46GC67ESS E36GC65ESS E30GC64ESS DESCRIPTION NUMBER -4/QTY. -3/QTY. -2/QTY. -1/QTY. 65481 BAG, PLASTIC, 6X10 65480A LABEL, LABEL, CONVERSION CONVERSION...
  • Page 26 Instructions for converting cooktop to operate on Liquefied Petroleum Gas ANGLE FITTING RETAINING NUT ORIFICE HOLD ANGLE FITTING WITH THE 8" ADJUSTABLE WRENCH. WITH THE 6" WRENCH, REMOVE ANGLE FITTING RETAINING NUT AND ORIFICE. REPLACE WITH THE ORIFICE FROM THE KITS AND ASSEMBLE IN REVERSE ORDER Close-up of OF DISASSEMBLY.
  • Page 27 Instructions for converting cooktop to operate on Liquefied Petroleum Gas IF RETURN TO NATURAL GAS SERVICE IS REQUIRED, REPEAT ALL STEPS EXCEPT USE THE FOLLOWING TABLES TO DETERMINE THE LOCATIONS FOR THE NATURAL GAS ORIFICES AND SHUTTER GAPS. ALL ORIFICE SHOULD HAVE BEEN SAVED FOR FUTURE USE. AGAIN SAVE THE LPG/PROPANE ORIFICES FOR THE CASE WHERE CONVERSION IS AGAIN REQUIRED.

This manual is also suitable for:

E30gc64essE36gc65essE46gc66ess5995426250
