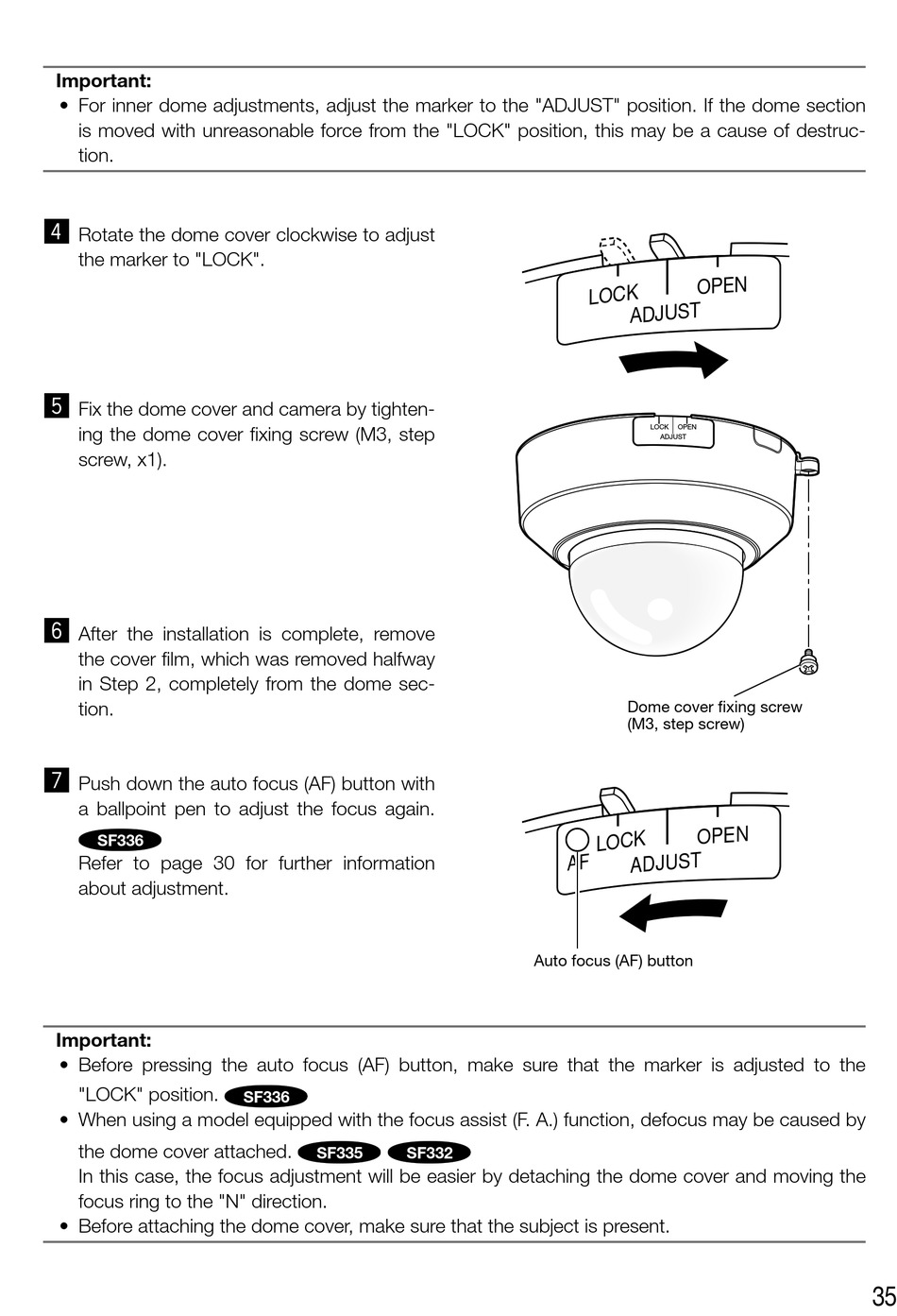

Panasonic WVSF332 - IP NETWORK CAMERA Installation Manual page 35

Important:
• For inner dome adjustments, adjust the marker to the "ADJUST" position. If the dome section
is moved with unreasonable force from the "LOCK" position, this may be a cause of destruc-
tion.
v
Rotate the dome cover clockwise to adjust
the marker to "LOCK".
b
Fix the dome cover and camera by tighten-
ing the dome cover fixing screw (M3, step
screw, x1).
n
After the installation is complete, remove
the cover film, which was removed halfway
in Step 2, completely from the dome sec-
tion.
m
Push down the auto focus (AF) button with
a ballpoint pen to adjust the focus again.
SF336
Refer to page 30 for further information
about adjustment.
Important:
• Before pressing the auto focus (AF) button, make sure that the marker is adjusted to the
"LOCK" position.
• When using a model equipped with the focus assist (F. A.) function, defocus may be caused by
the dome cover attached.
In this case, the focus adjustment will be easier by detaching the dome cover and moving the
focus ring to the "N" direction.
• Before attaching the dome cover, make sure that the subject is present.
SF336
SF335 SF332
LOCK OPEN
ADJUST
Dome cover fixing screw
(M3, step screw)
Auto focus (AF) button
