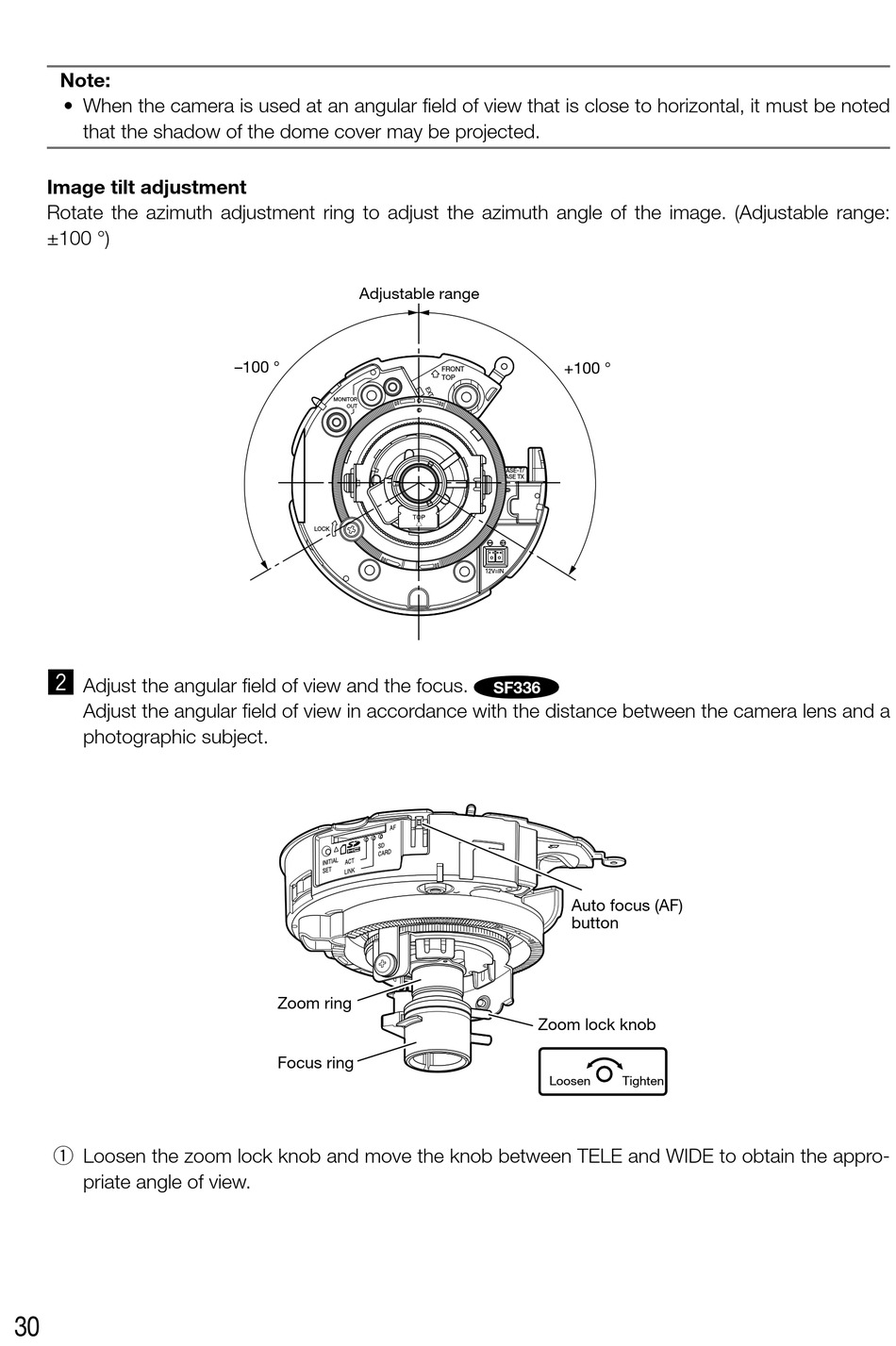

Panasonic WVSF332 - IP NETWORK CAMERA Installation Manual page 30

Note:
• When the camera is used at an angular field of view that is close to horizontal, it must be noted
that the shadow of the dome cover may be projected.
Image tilt adjustment
Rotate the azimuth adjustment ring to adjust the azimuth angle of the image. (Adjustable range:
±100 °)
x
Adjust the angular field of view and the focus.
Adjust the angular field of view in accordance with the distance between the camera lens and a
photographic subject.
q Loosen the zoom lock knob and move the knob between TELE and WIDE to obtain the appro-
priate angle of view.
30
Adjustable range
–100 °
MONITOR
OUT
LOCK
Zoom ring
Focus ring
+100 °
FRONT
TOP
BASE-T/
BASE TX
12V=IN
SF336
Auto focus (AF)
button
Zoom lock knob
Loosen Tighten
