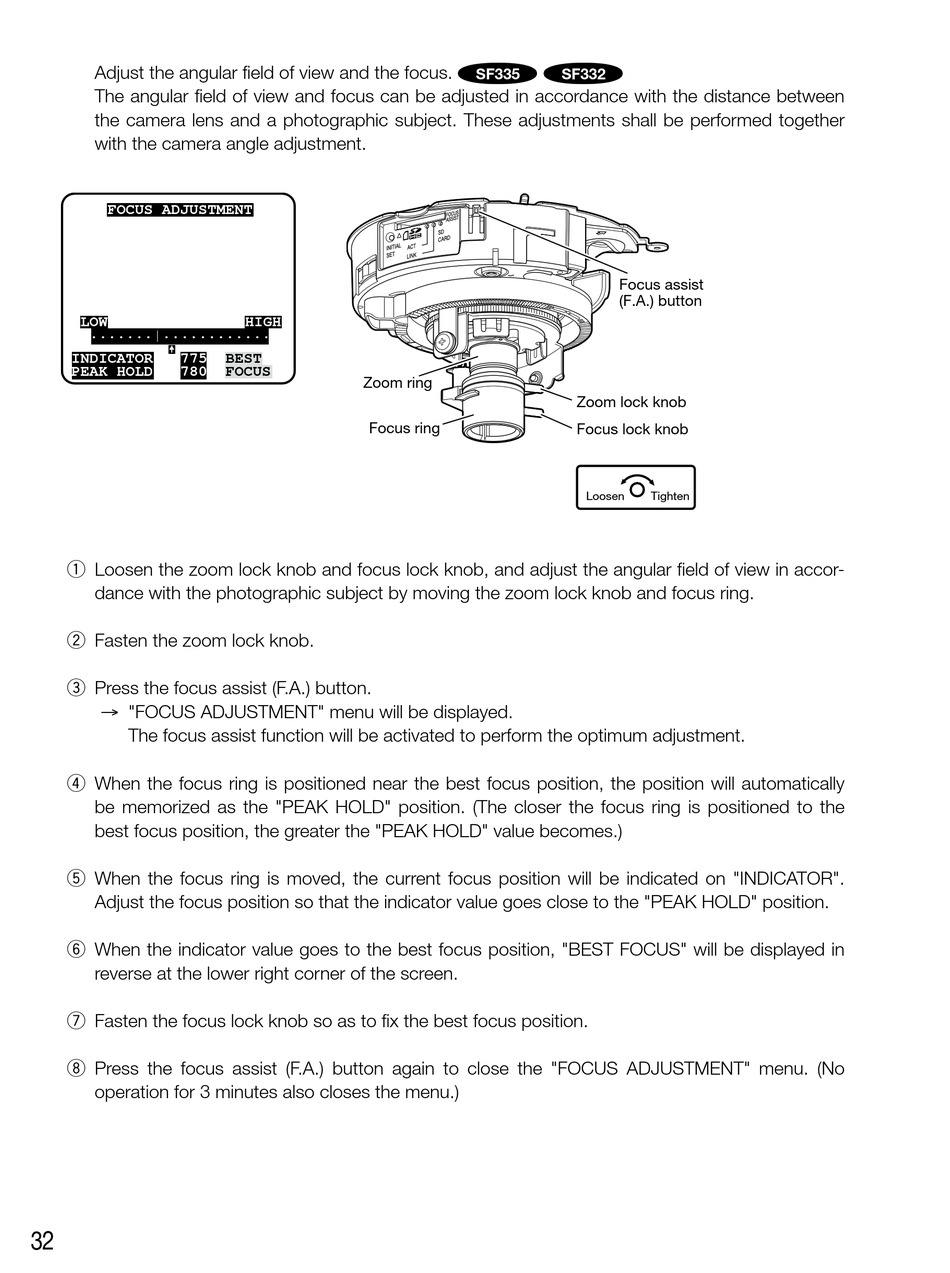

Adjust the angular field of view and the focus.
The angular field of view and focus can be adjusted in accordance with the distance between
the camera lens and a photographic subject. These adjustments shall be performed together
with the camera angle adjustment.
FOCUS ADJUSTMENT
LOW
....... | ............
INDICATOR 775
PEAK HOLD 780
q Loosen the zoom lock knob and focus lock knob, and adjust the angular field of view in accor-
dance with the photographic subject by moving the zoom lock knob and focus ring.
w Fasten the zoom lock knob.
e Press the focus assist (F.A.) button.
→ "FOCUS ADJUSTMENT" menu will be displayed.
The focus assist function will be activated to perform the optimum adjustment.
r When the focus ring is positioned near the best focus position, the position will automatically
be memorized as the "PEAK HOLD" position. (The closer the focus ring is positioned to the
best focus position, the greater the "PEAK HOLD" value becomes.)
t When the focus ring is moved, the current focus position will be indicated on "INDICATOR".
Adjust the focus position so that the indicator value goes close to the "PEAK HOLD" position.
y When the indicator value goes to the best focus position, "BEST FOCUS" will be displayed in
reverse at the lower right corner of the screen.
u Fasten the focus lock knob so as to fix the best focus position.
i Press the focus assist (F.A.) button again to close the "FOCUS ADJUSTMENT" menu. (No
operation for 3 minutes also closes the menu.)
32
HIGH
BEST
FOCUS
Zoom ring
Focus ring
SF335 SF332
Focus assist
(F.A.) button
Zoom lock knob
Focus lock knob
Loosen Tighten
