Pan/Tilt control

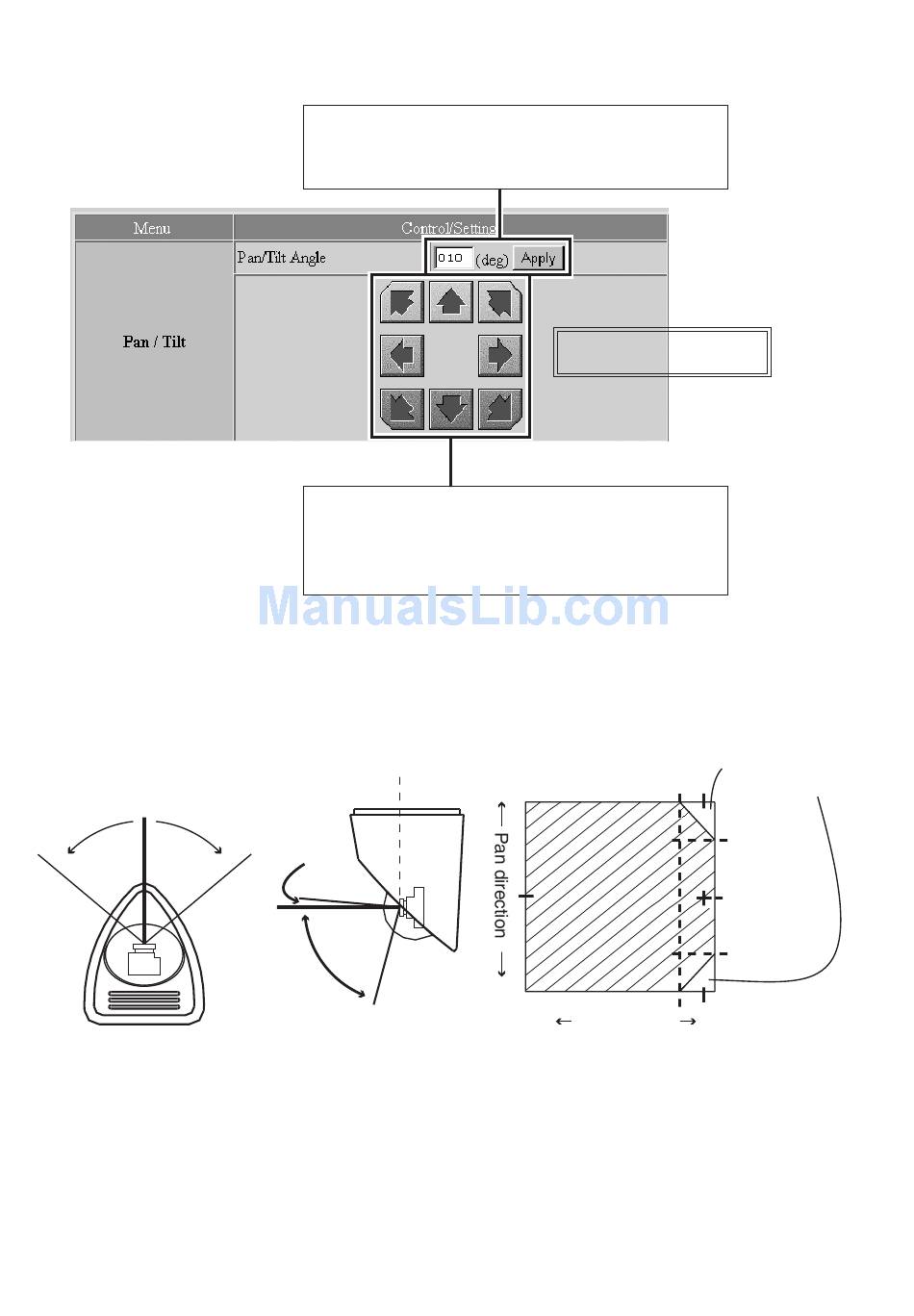

The Pan/Tilt position display is as shown in the illustration.
0°
+50°
Pan range
The current Pan/Tilt angle step is displayed here.
Angles (integer value) can be changed by
entering value and clicking on the Apply button.
The Pan/Tilt can be controlled with the 8 Pan/Tilt
operation buttons.
The amount of movement for each operation of
Pan/Tilt is the above Pan/Tilt Angle.
–50°
+5°
0°
–75°
Tilt range
VN-C2WU control page VN-C2WU control page
–10° a rea
50°
–50°
–75° Tilt direction
Pan/Tilt shoot range
Portion of the image
will be missing with
this range.
30° a rea
–30° a rea
+5°
