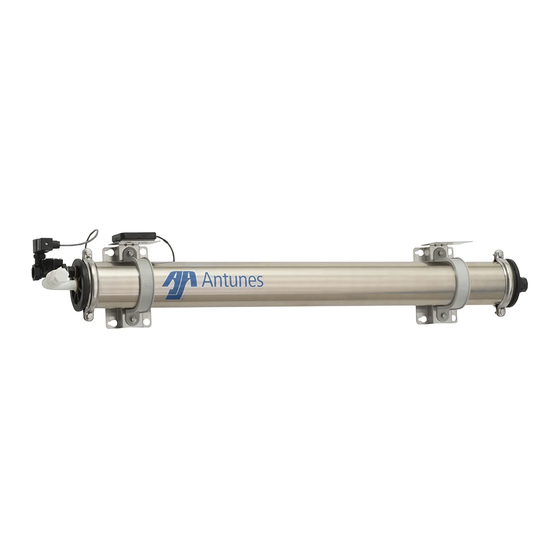

Antunes UFL-540 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
UFL-510
UFL-520
UFL-540
Water Filtration
Owner's Manual
Original Instructions
Manufacturing Numbers:
9710124, 9710125, 9710126
System Tested and Certified by NSF
International against NSF/ANSI
Standard 42 and 53 for the reduction of:
Standard No. 42: Aesthetic Effects
Nominal Particulate Reduction Class I
Standard No. 53: Health Effects
Cyst Reduction & Turbidity Reduction as
verified and substantiated by test data.
Original Instructions
www.antunes.com
CAUTION: Read all instructions before using the unit.
P/N 1012043 Rev B 11/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFL-540 and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes UFL-540

Summary of Contents for Antunes UFL-540

  • Page 1 ® UFL-510 UFL-520 UFL-540 Water Filtration Owner’s Manual Original Instructions Manufacturing Numbers: 9710124, 9710125, 9710126 System Tested and Certified by NSF International against NSF/ANSI Standard 42 and 53 for the reduction of: Standard No. 42: Aesthetic Effects Nominal Particulate Reduction Class I Standard No.

  • Page 2: Table Of Contents

    Sanitizing the System and Lines IMPORTANT Rinsing the UltraFilter Cartridge For sales in the state of Iowa: Maintenance Antunes reserves the right to change Replacing the UltraFilter Cartridge specifications and product design Seller Changing the Interval Setting without notice. Such revisions DO...

  • Page 3: Safety Information

    Water pressure must not by qualified personnel only. person. exceed 100 psig (690 kPa). Contact Antunes for repair. To reduce water pressure, install All electrical connections must be in a water pressure regulator and accordance with local electrical codes set to suit the application.

  • Page 4: Safety Information (Continued)

    UFL-500 SERIES Safety Information (Continued) Caution Protect from becoming dry This equipment is to be installed to comply with the basic plumbing code of the Building Officials and Code If the membrane dries out, irreversible damage to the UltraFilter Administrators, Inc. (BOCA) and the Food Service membrane may result.

  • Page 5: Specifications

    (2 Pin) BS 1363 AS/NZS 3112 (2 PIN) NOTE: Includes plug adaptors for US, Europe, Australia, and UK. BS 1363 Model Drain must accommodate flow up to: UFL-510 5.2 gpm UFL-520 8 gpm Figure 1. System Dimensions UFL-540 15 gpm System Dimensions Replacement Cartridges Model...

  • Page 6: Performance Claims

    ≥ 85% 99.5% Particles 0.5 to < particles /mL NSF Certified Rated Service Flow: 1µm UFL-510 5.2 gpm (19.7 l/m) UFL-520 7.9 gpm (30 l/m) based on the use of microspheres or Cryptosporium parvum oocysts UFL-540 13 gpm (49 l/m)

  • Page 7: Overview

    UFL-500 SERIES Overview The UFL system operates in two modes: System Flush Normal Operation Mode Solenoid Valve Flush Mode (Automatic) During Normal Operation Mode, Outlet water enters the Inlet and flows through the UltraFilter before exiting the Permeate Outlet as usable product water.

  • Page 8: Unpacking

    System Outlet 3/4" FNPT NOTE: If any parts are damaged, (Product Water) contact Antunes IMMEDIATELY Drain 3/4" FNPT at +1-877-392-7854. When making a plumbing connection to the system, use a back-up wrench on the supporting plumbing. Always use a quality, approved pipe sealant or thread seal tape on pipe threads.

  • Page 9: Installation

    Bracket. When mounting the system, pay attention to the following guidelines: y Allow sufficient access for cartridge replacement. The UFL-510 System should be mounted with 12 inches to the top or bottom of the system. The UFL-520 system should be mounted with 23 inches to the top or bottom of the system.

  • Page 10: Drain Valve Connection

    UFL-500 SERIES Drain Valve Connection The drain is for flushing particle buildup out of the system during self cleaning. Cut a length of tubing (not supplied) so it reaches the drain from the Drain Valve. Connect one end of the hose to the Drain Valve with an appropriate fitting (not supplied) (Figure 4).

  • Page 11: System Inlet Connection

    UFL-500 SERIES System Inlet Connection The System Inlet has a 3/4” FNPT thread at the Inlet Valve Outlet (Figure 6). DO NOT overtighten fittings as this could cause the plastic ball valve to crack. Use plastic fittings and a pipe thread sealant approved for use on PVC fittings when making connections.

  • Page 12: Sanitizing The System And Lines

    UFL-500 SERIES Rinsing the UltraFilter Cartridge Sanitizing the System and Lines The UltraFilter Cartridge comes pre-installed in the UFL The plumbing must be sanitized to eliminate possible contamination that may have occurred during the installation system. The UltraFilter Cartridge must be rinsed before the system is used to remove any air and protective solution.

  • Page 13: Maintenance

    UFL-500 SERIES Maintenance Replacing the UltraFilter Cartridge End Cap Clamps NOTE: Water may drain from the tubing as it is removed. Make sure there is enough room around the End Cap system to remove the cartridge. Cartridge UltraFilter O-Rings Turn off water to the system by closing the Inlet Ball Valve Cartridge and Outlet Ball Valve.

  • Page 14: Changing The Interval Setting

    UFL-500 SERIES Changing the Interval Setting Caution Changing the flush interval can cause the UltraFilter to plug prematurely and may reduce the life of the filter. Consult the factory for more information Though not recommended, the interval setting on the Universal Pulse Controller can be changed.

  • Page 15: Troubleshooting

    UFL-500 SERIES Troubleshooting Problem Possible Cause Corrective Action The power cord is not plugged into the Plug power cord into the appropriate outlet. appropriate outlet or control box. The unit is plugged into a switched Plug the power cord into an unswitched outlet. Unit does not have power.

  • Page 16: Replacement Parts

    UFL-500 SERIES Replacement Parts Parts list (See Exploded Views for more information) NOTICE Use only genuine Antunes replacement parts in this unit. Use of parts other than those supplied by the manufacturer will void the warranty. Item Part # Description Qty.

  • Page 17: Exploded View

    UFL-500 SERIES Exploded View UFL-510, UFL-520, and UFL-540 Systems P/N 1012043 Rev B 11/19 ®...

  • Page 18: Limited Warranty

    Equipment. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equipment DO NOT constitute a warranty charge.
