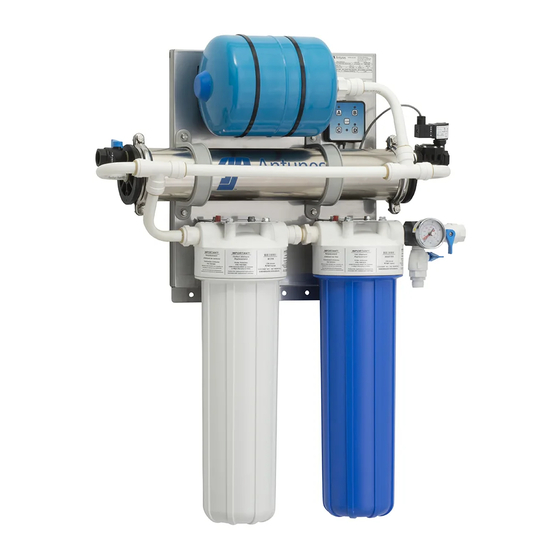

Antunes VZN-500 Series Owner's Manual

Water filtration
Hide thumbs Also See for VZN-500 Series:
Table of Contents

Advertisement

Quick Links

VZN-521H
VZN-541H
VZN-541V
Original Instructions
www.antunes.com
VZN-521HC
VZN-541HC
VZN-541VC
VZN-541VE
Water Filtration
Owner's Manual
Original Instructions
Manufacturing Numbers:
9710104, 9710105, 9710106, 9710107, 9710111,
9710113, 9710114, 9710115, 9710116, 9710117,
9710118, 9710119, 9710120, 9710128, 9710132
System Tested and Certified by NSF
International against NSF/ANSI
Standard 42 and 53 for the reduction of:
Standard No. 42: Aesthetic Effects
Nominal Particulate Reduction Class I
Chlorine Reduction (VZN-541VE ONLY)
Standard No. 53: Health Effects
Cyst Reduction & Turbidity Reduction as
verified and substantiated by test data.
CAUTION: Read all instructions before using the unit.
®
VZN-521H-T5 VZN-521HC-T5
VZN-541H-T5 VZN-541HC-T5
VZN-541V-T5
VZN-541VC-T5
P/N 1013008 Rev C 11/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VZN-500 Series and is the answer not in the manual?

Questions and answers

Nancy Johnson
August 19, 2025

How often should the filters be changed?

0

Related Manuals for Antunes VZN-500 Series

Summary of Contents for Antunes VZN-500 Series

  • Page 1 Nominal Particulate Reduction Class I Chlorine Reduction (VZN-541VE ONLY) Standard No. 53: Health Effects Cyst Reduction & Turbidity Reduction as Original Instructions verified and substantiated by test data. P/N 1013008 Rev C 11/19 www.antunes.com CAUTION: Read all instructions before using the unit.

  • Page 2: Table Of Contents

    In Case of Damage installation or operation of the unit, carbon element to provide the latest Service/Technical Assistance contact Antunes Technical Service at +1- innovation in filtration technology. Safety Information 877-392-7854 (toll free). Installation...

  • Page 3: Safety Information

    Water pressure must not by qualified personnel only. person. exceed 100 psig (690 kPa). Contact Antunes for repair. To reduce water pressure, install All electrical connections must be in a water pressure regulator and accordance with local electrical codes set to suit the application.

  • Page 4: Safety Information (Continued)

    VZN 500 SERIES Safety Information (Continued) Protect from becoming dry Caution If the membrane dries out, irreversible damage to the Ultra Filter This equipment is to be installed to comply with the membrane may result. Protect the filter from becoming dry by basic plumbing code of the Building Officials and Code keeping it wet and sealed at all times.

  • Page 5: Specifications

    VZN 500 SERIES Specifications Electrical Ratings System Dimensions Volts Watts Amps Hertz Model Width (A) Depth (B) Height (C) 100-240 50/60 VZN-521H 31" VZN-521HC (79 cm) Electrical Cord & Plug Configurations 9" 39" (23 cm) (99 cm) VZN-521H-T5 33" VZN-521HC-T5 (84 cm) Kit Model Number/ Configuration Description VZN-541H...

  • Page 6: Performance Data Sheet

    VZN 500 SERIES Performance Data Sheet Performance Claims for Percent Reduction Filter Cartridge Capacities Substance Influent Reduction Minimum Challenge Requirement Concentration Reduction Maximum Operating Pressure 100 psig (690 kPa) Maximum Operating Temperature 100°F (38°C) cyst Minimum 99.95% 99.95% 50,000/L Minimum Operating Temperature 40°F (4°C) Turbidity 11 ±...

  • Page 7: Overview

    VZN 500 SERIES Overview System Flush Solenoid Valve Inlet The VZN system operates in two (Automatic) Ball Valve modes: (Manual) Normal Operation Mode Ultra Filtration Cartridge Flush Mode During Normal Operation Mode, water enters the Inlet and flows through the Ultra Filter before exiting Outlet the Permeate Outlet as usable Ball Valve...

  • Page 8: Unpacking

    NOTE: If any parts are damaged, When making a plumbing connection to the system, use a back-up wrench on the contact Antunes IMMEDIATELY supporting plumbing. Always use a quality, approved pipe sealant or thread seal tape at +1-877-392-7854. on pipe threads. DO NOT allow pipe sealant inside pipes.

  • Page 9: Installation

    VZN 500 SERIES Installation The system is Caution designed to hang from Due to its weight and size, the the Mounting Bracket. VZN system MUST be mounted with the provided Mounting Bracket. Read the Mounting the System section before attempt- ing to mount the VZN system.

  • Page 10: Drain Valve Connection

    VZN 500 SERIES Drain Valve Connection The drain is for flushing particle buildup out of the system during self cleaning. Cut a length of tubing (not supplied) so it reaches the drain from the Drain Valve. Connect one end of the hose to the Drain Valve with an appropriate fitting (not supplied) (Figure 4).

  • Page 11: Rinse Valve Connection

    VZN 500 SERIES Rinse Valve Connection Obtain a length of 3/4” garden hose long enough to reach from the Rinse Valve to the drain. Install a gasket in the end of the hose (non-drain end). Rinse Valve Connection Connect the hose to the Rinse Valve fitting. Use a back- up wrench on the fitting if required (Figure 6).

  • Page 12: Installing A Bypass

    VZN 500 SERIES Rinsing the Ultra Filter Cartridge The Ultra Filter Cartridge comes pre-installed in the VZN system. The Ultra Filter Cartridge must be rinsed before the Bypass Example system is used to remove any air and protective solution. Inlet Ball Valve NOTE: Ultra Filter Cartridge must be rinsed to drain...

  • Page 13: Sanitizing The System And Lines

    VZN 500 SERIES Sanitizing the System and Lines Rinsing the Carbon Element and TAC Cartridge The plumbing must be sanitized to eliminate possible The Carbon Element and TAC Cartridge MUST be rinsed contamination that may have occurred during the installation before using the system the first time and immediately after the process.

  • Page 14: Maintenance

    VZN 500 SERIES Maintenance Replacing the Ultra Filter Cartridge End Cap Clamps NOTE: Always install new Carbon Element and new TAC Cartridge Element after replacing the Ultra Filter End Cap Cartridge. Cartridge NOTE: Water may drain from the tubing as it is removed. UltraFilter O-Rings Cartridge...
  • Page 15 VZN 500 SERIES Rinsing and Replacing the Carbon Element NOTE: Remove the TAC Cartridge Element, if present, and Red Pressure re-attach the TAC Housing before proceeding. Relief Button O-rings Turn off the water to the system by closing the Inlet Ball Carbon Valve and Outlet Ball Valve.

  • Page 16: Replacing The Tac Cartridge

    VZN 500 SERIES Rinsing and Replacing the TAC Cartridge Turn off water to the system by closing the Inlet Ball Valve and then close the Outlet Ball Valve. Press the FLUSH button to initiate the flush cycle. Repeat several times to ensure the permeate tank is empty. Press and hold the Red Pressure Relief Button on the top of the TAC Housing Remove the TAC Housing (Figure 11).

  • Page 17: Changing The Interval Setting

    VZN 500 SERIES Semi-Annual Task Changing the Interval Setting Caution Check Permeate Tank Air Pre-Charge Changing the flush interval can cause the Ultra Filter to plug It is recommended the permeate tank air charge be checked prematurely and may reduce the life of the filter. Consult the every six months.

  • Page 18: Troubleshooting

    VZN 500 SERIES Troubleshooting Problem Possible Cause Corrective Action The power cord is not plugged into the Plug power cord into the appropriate outlet. appropriate outlet or control box. The unit is plugged into a switched Plug the power cord into an unswitched outlet. Unit does not have power.
  • Page 19 VZN 500 SERIES 521H, 521HC, 541H, 541HC Replacement Parts Item Item Part # Description Qty. Part # Description Qty. 7001576 Universal Pulse Controller Assembly 2190210 Adaptor, Tube to 1" NPT 0012412 Outlet Assembly 2190210 Fitting, 3/4" NPT X 3/4" CTS Stem 0400381 Grommet, 1.75 OD X 1.1887 ID 3000116...
  • Page 20 VZN 500 SERIES VZN-521H-T5, VZN-521HC-T5, VZN 541H-T5, AND VZN-541HC-T5 SYSTEMS 6 6 6 Item Item Part # Description Qty. Part # Description Qty. 7001576 Universal Pulse Controller Assembly 2190167 Garden Hose adaptor, 3/4" NPT x 3/4" 0012467 Outlet Assembly 2190189 Adaptor, Tube to 1'' NPT 0400381 Grommet, 1.75 OD X 1.1887 ID...
  • Page 21 VZN 500 SERIES VZN-541V, VZN-541VC & VZN-541VE SYSTEMS Item Part # Description Qty. 7001576 Universal Pulse Controller 0012467 Outlet Assembly 3/4'' 0400381 Grommet, 1.75OD X 1.187 ID 0508919 Housing 4" DIA x 40" L 0509332 Back Plate, VZN-541 0505871 Mounting Bracket 2010243 Tubing UF-Bend 180°, 31.21 LG 2010244...
  • Page 22 VZN 500 SERIES VZN-541V-T5 AND VZN-541VC-T5 SYSTEMS Item Part # Description Qty. 7001576 Universal Pulse Controller 0012467 Outlet Assembly 3/4'' 0400381 Grommet, 1.75OD X 1.187 ID 0508919 Housing 4 DIA x 40" L 0509344 Back Plate, VZN 521/541 -T5 0505871 Mounting Bracket 2010243 Tubing, UF-Bend 180°, 31.21 LG...

  • Page 23: Notes

    VZN 500 SERIES Notes P/N 1013008 Rev C 11/19 ®...

  • Page 24: Limited Warranty

    Equipment. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equipment DO NOT constitute a warranty charge.
