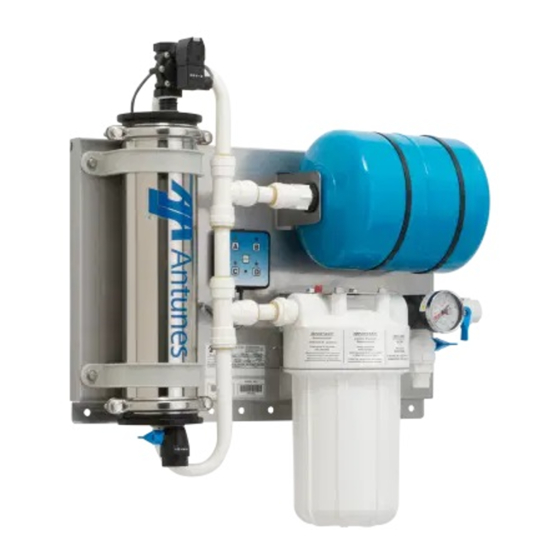

Antunes VZN 500 Series Owner's Manual

Hide thumbs Also See for VZN 500 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
®

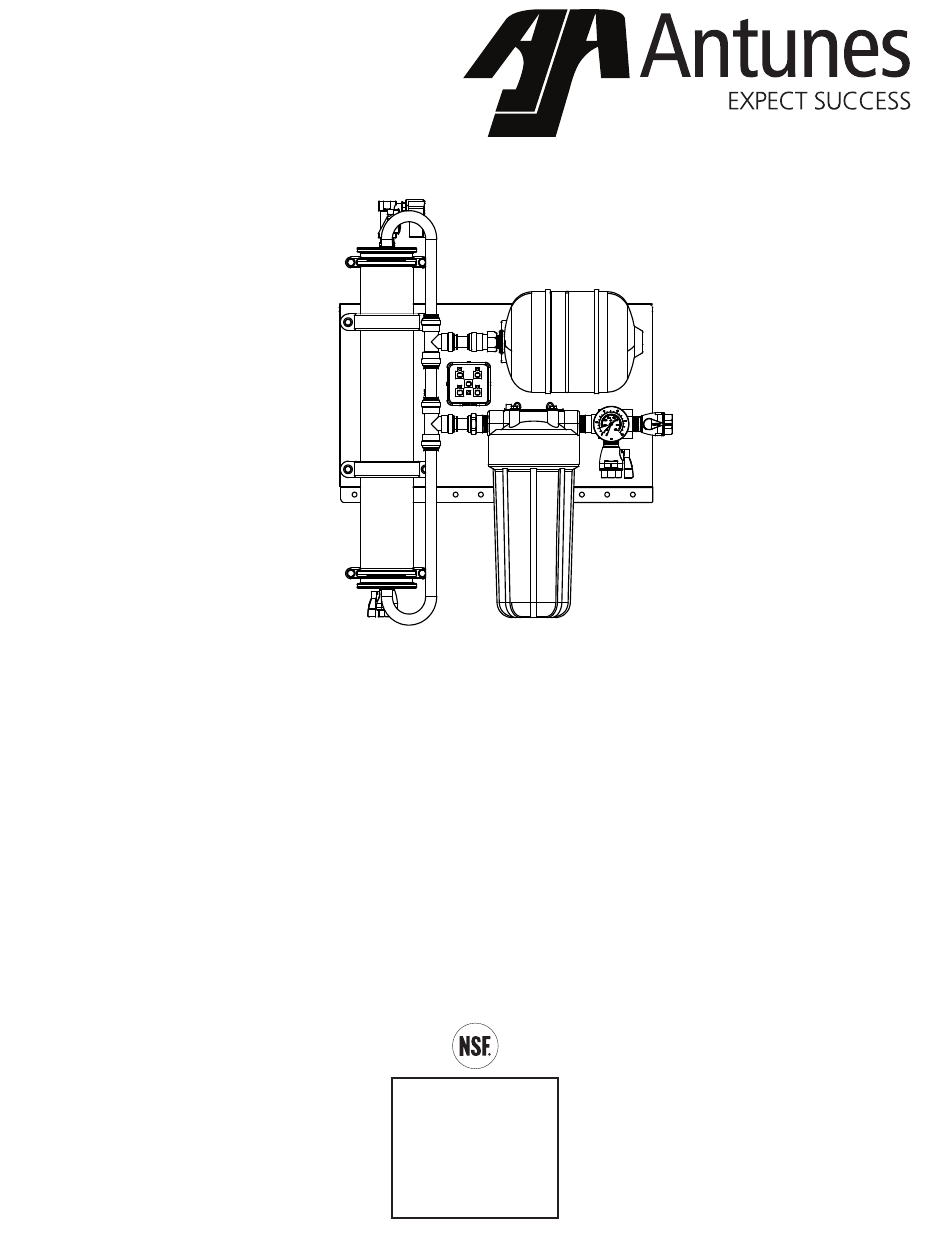

VZN-511V
Water Filtration
Owner's Manual
Original Instructions
Manufacturing Numbers:
9710122
System Tested and Certified by NSF
International against NSF/ANSI
Standard 42 and 53 for the reduction of:
Standard No. 42: Aesthetic Effects
Nominal Particulate Reduction Class I
Standard No. 53: Health Effects
Cyst Reduction & Turbidity Reduction as
verified and substantiated by test data.
Original Instructions
P/N 1012047 Rev D 06/20
www.antunes.com
CAUTION: Read all instructions before using the unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VZN 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes VZN 500 Series

Summary of Contents for Antunes VZN 500 Series

  • Page 1 Standard No. 42: Aesthetic Effects Nominal Particulate Reduction Class I Standard No. 53: Health Effects Cyst Reduction & Turbidity Reduction as verified and substantiated by test data. Original Instructions P/N 1012047 Rev D 06/20 www.antunes.com CAUTION: Read all instructions before using the unit.

  • Page 2: Table Of Contents

    For sales in the state of Iowa: Starting the Controller Rinsing the Ultra Filter Cartridge IMPORTANT Seller Sanitizing the System and Lines Antunes reserves the right to change Rinsing the Carbon Element specifications and product design Date Maintenance without notice. Such revisions DO...

  • Page 3: Safety Information

    VZN 500 SERIES Safety Information Maintenance WARNING y DO NOT use corrosive ELECTRICAL SHOCK HAZARD. Installation chemicals in this equipment. Failure to follow the instructions in y Read and understand all y DO NOT clean the unit with a this manual could result in serious instructions before installing water jet or steam cleaner.

  • Page 4: Safety Information (Continued)

    VZN 500 SERIES Safety Information (Continued) Protect from becoming dry Caution If the membrane dries out, irreversible damage to the Ultra Filter This equipment is to be installed to comply with the membrane may result. Protect the filter from becoming dry by basic plumbing code of the Building Officials and Code keeping it wet and sealed at all times.

  • Page 5: Specifications

    VZN 500 SERIES Specifications Electrical Ratings Volts Watts Amps Hertz System Dimensions 100-240 50/60 Model Width (A) Depth (B) Height (C) Electrical Cord & Plug Configurations 25" 9" 27" VZN-511V (63.5 cm) (23 cm) (69 cm) Kit Model Number/ Configuration Description Kit 0012146 DC Power Supply...

  • Page 6: Performance Data Sheet

    VZN 500 SERIES Performance Data Sheet Performance Claims for Percent Reduction Filter Cartridge Capacities Substance Influent Reduction Minimum Challenge Requirement Concentration Reduction Maximum Operating Pressure 100 psig (690 kPa) Maximum Operating Temperature 100°F (38°C) cyst Minimum 99.95% 99.95% 50,000/L Minimum Operating Temperature 40°F (4°C)

  • Page 7: Overview

    VZN 500 SERIES Overview System Flush The VZN system operates in two Solenoid Valve modes: (Automatic) Normal Operation Mode Flush Mode During Normal Operation Mode, water enters the Inlet and flows through the Ultra Filter before exiting Outlet Ultra Filtration...

  • Page 8: Unpacking

    VZN 500 SERIES Unpacking Equipment Setup Open the large box. It should General contain: When placing the system into service, pay attention to the following guidelines: A. Panel mounted VZN system with y DO NOT immerse cord or power plug in water an Ultra Filter Cartridge installed.

  • Page 9: Installation

    VZN 500 SERIES Installation The system is Caution designed to hang from Due to its weight and size, the the Mounting Bracket. VZN system MUST be mounted with the provided Mounting Bracket. Read the Mounting the System section before attempt- ing to mount the VZN system.

  • Page 10: Drain Valve Connection

    VZN 500 SERIES Drain Valve Connection The drain is for flushing particle buildup out of the system during self cleaning. Cut a length of tubing (not supplied) so it reaches the drain from the Drain Valve. Connect one end of the hose to the Drain Valve with an appropriate fitting (not supplied) (Figure 4).

  • Page 11: Rinse Valve Connection

    VZN 500 SERIES Rinse Valve Connection Obtain a length of 3/4” garden hose long enough to reach from the Rinse Valve to the drain. Install a gasket in the end of the hose (non-drain end). Connect the hose to the Rinse Valve fitting. Use a back- up wrench on the fitting if required (Figure 6).

  • Page 12: Installing A Bypass

    VZN 500 SERIES Rinsing the Ultra Filter Cartridge The Ultra Filter Cartridge comes pre-installed in the VZN system. The Ultra Filter Cartridge must be rinsed before the system is used to remove any air and protective solution. NOTE: Ultra Filter Cartridge must be rinsed to drain before use.

  • Page 13: Sanitizing The System And Lines

    VZN 500 SERIES Sanitizing the System and Lines Rinsing the Carbon Element The plumbing must be sanitized to eliminate possible The Carbon Element MUST be rinsed before using the system contamination that may have occurred during the installation the first time and immediately after the Carbon Element has process.

  • Page 14: Maintenance

    VZN 500 SERIES Maintenance Replacing the Ultra Filter Cartridge End Cap Clamps NOTE: Always install new Carbon Element after replacing the Ultra Filter Cartridge. End Cap NOTE: Water may drain from the tubing as it is removed. Cartridge Make sure there is enough room around the...

  • Page 15: System Sanitation

    VZN 500 SERIES Rinsing and Replacing the Carbon Element Turn off the water to the system by closing the Inlet Ball Valve and Outlet Ball Valve. O-rings Open the Rinse Ball Valve and allow the system to drain to Carbon ensure the permeate tank is empty.

  • Page 16: Changing The Interval Setting

    VZN 500 SERIES Semi-Annual Task Changing the Interval Setting Caution Check Permeate Tank Air Pre-Charge Changing the flush interval can cause the Ultra Filter to plug It is recommended the permeate tank air charge be checked prematurely and may reduce the life of the filter. Consult the every six months.

  • Page 17: Troubleshooting

    VZN 500 SERIES Troubleshooting Problem Possible Cause Corrective Action The power cord is not plugged into the Plug power cord into the appropriate outlet. appropriate outlet or control box. The unit is plugged into a switched Plug the power cord into an unswitched outlet.

  • Page 18: Replacement Parts

    VZN 500 SERIES REPLACEMENT PARTS Parts list Item Part # Description Qty. 7001576 Universal Pulse Controller 0012467 Outlet Assembly 3/4'' 0400381 Grommet, 1.75OD X 1.187 ID 0508911 Housing 4" DIA x 14" L 0509332 Back Plate, VZN-541 0505871 Mounting Bracket 2010240 Tubing UF-Bend 180°, 8.535"...

  • Page 19: Notes

    VZN 500 SERIES Notes P/N 1012047 Rev D 06/20 ®...

  • Page 20: Limited Warranty

    Equipment. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equipment DO NOT constitute a warranty charge.
