Summary of Contents for TP-Link TD-8800
- Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd.
-
Page 3: Table Of Contents
Package contents......................1 Chapter 1: Product Overview..................2 1.1 Product main specification................. 2 1.2 Supporting protocol ................... 2 1.3 Transmit data-rate ..................... 2 1.4 ATM property ..................... 3 1.5 System support ....................3 1.6 Working environment..................3 1.7 Electric parameter ..................... 3 Chapter 2: Hardware Installation Guide ................ -
Page 4: Package Contents
One Resource CD for TD-8800 Ethernet ADSL Router, including: • This Guide • ADSL.exe Wall-mounting screws Note:If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the TD-8800 Ethernet ADSL Router for assistance. - 1 -... -
Page 5: Chapter 1: Product Overview
TD-8800 adopts single chip AFE, insuring you good performance and reliability. TD-8800 is a complete plug-and-play solution. With standard Ethernet interface, it can be directly connected to any 10M/100M Ethernet devices. TD-8800 can be configured and monitored via html (web mode through Ethernet port), telnet (command line mode through Ethernet port) and external utility software. -
Page 6: Atm Property
TD-8800 Ethernet ADSL Router User Guide 1.4 ATM property AAL type: AAL5 ATM service type UBR ATM UNI 3.1, UNI 4.0* 1.5 System support UP to 8 PVCs Support NAT, DHCP Server Standard Ethernet interface, true Plug and Play function 1.6 Working environment... -
Page 7: Chapter 2: Hardware Installation Guide

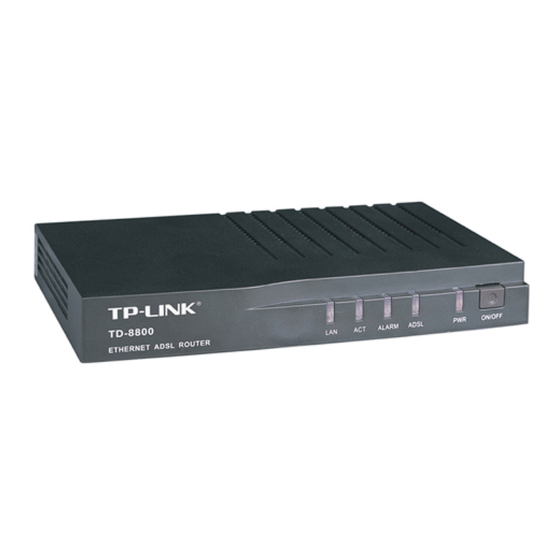

Ethernet ADSL Router to your computer, with operating system supporting the TCP/IP protocol. 2.2 LED explanation The panel of the TD-8800 Ethernet ADSL Router includes one power button, one power indicator (RED) and four function indicators (GREEN), and these five indicators are explained as chart 1-1:... - Page 8 TD-8800 Ethernet ADSL Router User Guide jack. 2. Connect category 5 cable with RJ45 jack to the Ethernet ADSL Router’s LAN port and your computer’s NIC. 3. Plug one end of the AC Power Adapter into the Power Jack on the Ethernet ADSL Router and the other end to a standard electrical outlet.
-
Page 9: Chapter 3: Quick Setup
TD-8800 Ethernet ADSL Router User Guide Chapter 3: Quick Setup 3.1 Computer Configuration 1. Connect the cable according to Chapter 2, turn on the power. 2. Change the IP address of your PC: Open TCP/IP Properties of the LAN card in your PC, enter the IP address as 192.168.1.* (* is any value between 2 to 254, subnet... -
Page 10: Login
TD-8800 Ethernet ADSL Router User Guide … If the screen likes the following, you fail. Please try again. Pinging 192.168.1.1 with 32 bytes of data: Request timed out. … 3.2 Login Double-click ADSL.exe, the Login screen appears. Figure 3-2 At first, the default IP address is 192.168.1.1, both the User name and the Password are admin. -
Page 11: Quick Setup
TD-8800 Ethernet ADSL Router User Guide The following screen will appear after successful login. There are four function modules in left. They are Quick Setup, Set DHCP, Mode, and Show Status. The information of default parameters are on the right hand. -
Page 12: Eoa (Rfc 1483 Bridged)
TD-8800 Ethernet ADSL Router User Guide PPPoE (RFC 2516) (adapt to dial users) Note:The protocol will vary depending on different places. Select the corresponding one according to your ISP’s parameters. 3.3.1 EoA (RFC 1483 Bridged) 1. Choose EoA (RFC 1483 Bridged), press Next to ATM VC Config (See Figure 3-5) 2. -
Page 13: Eoa (Rfc 1483 Routed)
TD-8800 Ethernet ADSL Router User Guide Figure 3-8 5. The Dial users should run the dialing software such as WinPoet or EnterNet to do the virtual dialing. 3.3.2 EoA (RFC 1483 Routed) 1. Choose EoA (RFC 1483 Routed) in the screen like Figure 3-5, press Next. -
Page 14: Ipoa (Rfc 1577)
TD-8800 Ethernet ADSL Router User Guide 4. Press Submit. If you succeed, the SUBMIT SUCCESS screen should appear (See Figure 3-8). Press OK to finish the configuration. 3.3.3 IPoA (RFC 1577) 1. Choose IPoA (RFC 1577) in Figure 3-5, press Next. -
Page 15: Pppoa (Rfc 2364)
TD-8800 Ethernet ADSL Router User Guide 3.3.4 PPPoA (RFC 2364) 1. Choose PPPoA (RFC 2364) in Figure 3-5, press Next. 2. Enter the VPI/VCI value, choose the Capsulation type, press Next. Figure 3-13 3. As Figure 3-14, enter the Username, password and Encrypt protocol provided by your ISP. -
Page 16: Pppoe (Rfc 2516)
TD-8800 Ethernet ADSL Router User Guide 3.3.5 PPPoE (RFC 2516) 1. Choose PPPoE (RFC 2516) in Figure 3-5, press Next. 2. Enter the VPI/VCI value, choose the Capsulation type, press Next. Figure 3-15 3. As Figure 3-16, enter the Username, password and Encrypt protocol provided by your ISP. -
Page 17: Dhcp Config
TD-8800 Ethernet ADSL Router User Guide 3.4 DHCP Config If you need to revise the default parameters of DHCP server, you can choose DHCP Config to enter the screen like Figure 3-17. Figure 3-17 You can open or close the DHCP server function through choosing the DHCP check box, and revise the DHCP address segment through configing the Start and End IP address, and config the default address of the DNS server. -
Page 18: Current Status
TD-8800 Ethernet ADSL Router User Guide 3.6 Current Status Choose Show Status in the function menu. Press Refresh to check the current status. The content will be different according to different protocol. If you choose PPPoE or PPPoA connection protocol, the PPP Connection situation screen will appear. If your Ethernet ADSL Router has been linking to the Telecom, it will list a Disconnect button on the left.
