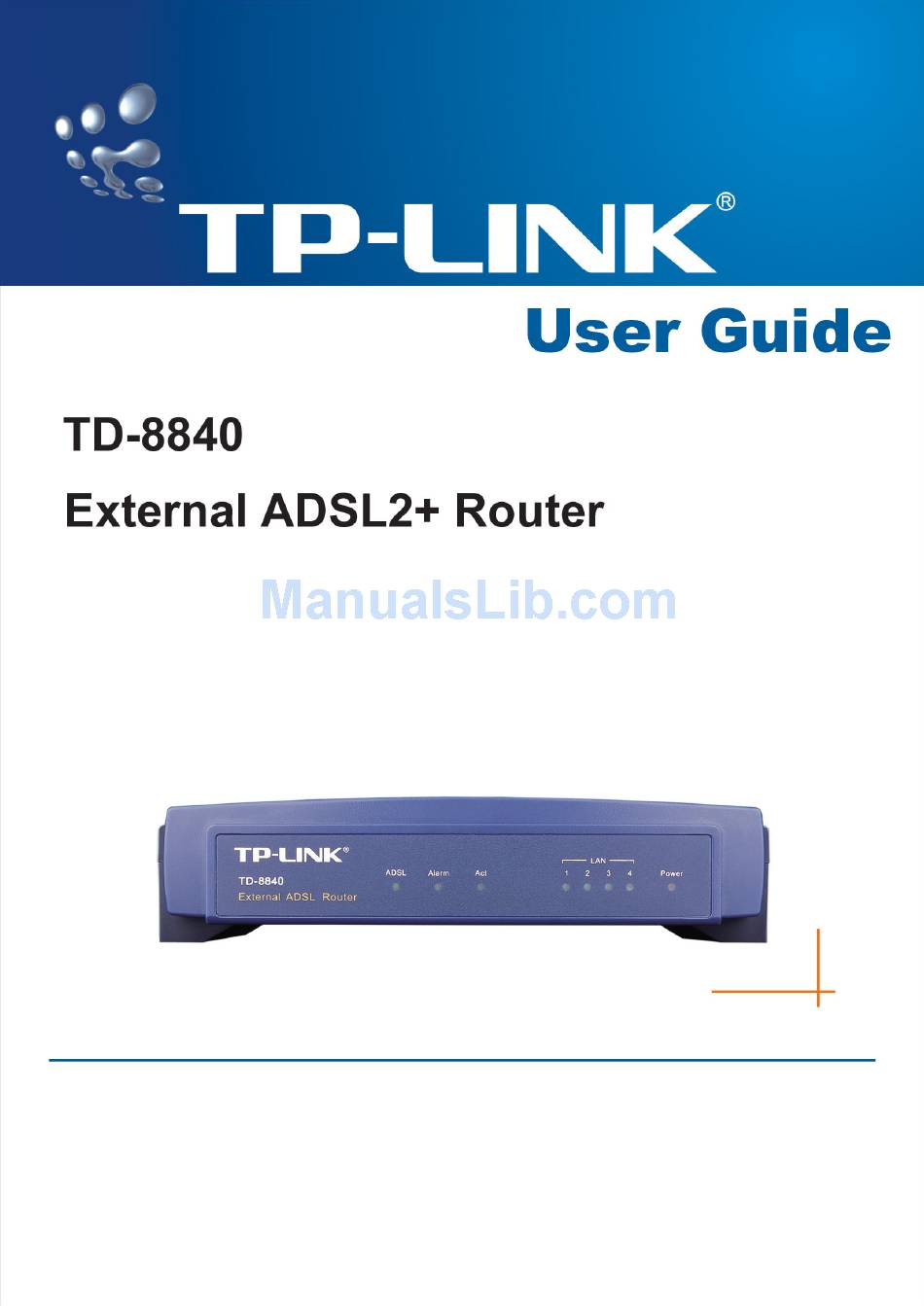

TP-Link TD-8840 User Manual
  1. Manuals
  2. Brands
  3. TP-Link Manuals
  4. Network Router
  5. TD-8840
  6. User manual
TP-Link TD-8840 User Manual

TP-Link TD-8840 User Manual

External adsl2+ router
Hide thumbs Also See for TD-8840:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-8840 and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link TD-8840

Summary of Contents for TP-Link TD-8840

  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd.

  • Page 3: Table Of Contents

    Package contents......................2 Chapter 1: Product Overview .................... 3 1.1 Product main specification ................... 3 1.2 Supporting protocol....................3 1.3 Transmit data-rate....................4 1.4 ATM property......................4 1.5 System support ....................4 1.6 Working environment ................... 4 1.7 Electric parameter....................4 Chapter 2: Hardware Installation Guide ................

  • Page 4: Package Contents

    Quick installation Guide One RJ45 cable Two RJ11 cable One ADSL splitter Note: If any of the above items are damaged or missing, please contact the retailer from whom you purchased the TD-8840 External ADSL2+ ROUTER for assistance. - 2 -...

  • Page 5: Chapter 1: Product Overview

    The TD-8840 is a complete plug-and-play solution. With standard Ethernet interface, it can be directly connected to any 10M/100M Ethernet devices, support Auto-MDIX. The TD-8840 not only uses html (web mode through Ethernet port) to configure the ROUTER but also uses external utility software. You can download it from our website (http://www.tp-link.com).

  • Page 6: Transmit Data-Rate

    TD-8840 External ADSL2+ Router User Guide - Supports RFC2364 (PPPoA) - Supports RFC2516 (PPPoE) - Supports RFC1483 (EoA)(Bridged *and Router) - Supports RFC1577 (IPoA) NOTE. “*” Needs the third-party software. 1.3 Transmit data-rate Max download data-rate: 24Mbps Max upload data-rate: 1Mbps Max line length: 6Km 1.4 ATM property...

  • Page 7: Chapter 2: Hardware Installation Guide

    External ADSL2+ Router User Guide Chapter 2: Hardware Installation Guide The TD-8840 maintains five separate interfaces, four Ethernet and one ADSL interface. The Router should not be located where it will be exposed to moisture or excessive heat. Place the Router in a location where it can be safely connected to the various devices as well as to a power source.

  • Page 8: Hardware Installation Procedures（Figure2-1

    The procedure to install the Router can be described in general terms in the following steps: First Step: Connecting the MODEM port of Splitter with the TD-8840 ADSL2+ ROUTER LINE port by telephone line. While you need to use a telephone, please attach telephone line into the phone of Splitter.

  • Page 9: Chapter 3: System Configuration

    TD-8840 External ADSL2+ Router User Guide Chapter 3: System Configuration 3.1 Computer Configuration Connect the cable according to Chapter 2, turn on the power. Change the IP address of your PC （Figure 3-1） : Open TCP/IP Properties of the LAN card in your PC, enter the IP address as 192.168.1.* (* is any value between 2 to...

  • Page 10: Login

    TD-8840 External ADSL2+ Router User Guide The users of Windows 2000/NT/XP can do the following: Right-click Network Neighbor -> Choose Properties -> Right-click Local Connection -> Choose Properties -> Double-click Internet Protocol (TCP/IP). NOTE: The words in fact may be different with this guide.
  • Page 11 TD-8840 External ADSL2+ Router User Guide Then you will see the Figure 3-3. You will see some information such as link rate and so Figure 3-3 Default value of user name and password is “admin”; if you want to change them, please go to “Management”...

  • Page 12: Web Setup

    TD-8840 External ADSL2+ Router User Guide 3.3 Web Setup Choose “Advanced Setup” ”WAN”, you will enter the page of Wide Area Network (WAN) Setup, you will see the Figure 3-5. Figure 3-5 There are 7 PVC links in the WAN setup page, choose the fit PVC according to your...
  • Page 13 TD-8840 External ADSL2+ Router User Guide Enter VPI/VCI value and service category which is provided by your ISP, click next to enter the next step. You will see the figure 3-7. NOTE: The type of network protocol selected may be different in different area, there are five types（Figure 3-7）, So you should ask your ISP to acquire the local type of network...
  • Page 14 TD-8840 External ADSL2+ Router User Guide Figure 3-8 You will see the figure 3-9. Then turn on the selected functions according to your demands. Clicking the next button to enter the next step, you will see the Figure 3-10, finally click save to complete the configuration.
  • Page 15 TD-8840 External ADSL2+ Router User Guide Figure 3-10 PPP over Ethernet (PPPoE) If you select the protocol of PPP over Ethernet (PPPoE), you will see the figure 3-11, enter the value of user name and password which is provided by your ISP, after selecting the other function(often using the default setup), click the next button.
  • Page 16 TD-8840 External ADSL2+ Router User Guide Clicking the next button to enter the next step, you will see the Figure 3-13, finally click save to complete the configuration. Figure 3-12 Figure 3-13 MAC Encapsulation Routing (MER) - 14 -...
  • Page 17 TD-8840 External ADSL2+ Router User Guide If you select the protocol of MAC Encapsulation Routing (MER), you will see the page(Figure 3-14). Enter the parameter and the way which is provided by your ISP, then click the next button. Figure 3-14 You will see the figure 3-15.
  • Page 18 TD-8840 External ADSL2+ Router User Guide Figure 3-16 IP over ATM (IPoA) If you select the protocol of IP over ATM (IPoA), you will see the figure 3-17, enter the parameter and the way which is provided by your ISP, then click the next button.
  • Page 19 TD-8840 External ADSL2+ Router User Guide finally press save to complete the configuration. Figure 3-18 Figure 3-19 Bridging If you select the Bridging protocol, you just open the bridge service function options, you will see the figure 3-20, then click the next button, you will see the Figure 3-21,finally press save to complete the configuration.
  • Page 20 TD-8840 External ADSL2+ Router User Guide Figure 3-20 Figure 3-21 NOTE: After you complete the settings, the new settings must be saved and the Router must be restarted for the settings to go into effect. Please press the Save/Reboot button to restart, referring to the Figure 3-22.

  • Page 21: Software Dial

    NOTE: All of the above setup is under windows XP OS. 3.4 Software Dial If TD-8840 CPE work in bridged (RFC 1483 Bridged) mode when it connects Internet. You must to install dial software on your PC. There are some software working on WINDOWS in market, example for EnterNet3000、RASPPPoE、WinPeET.

  • Page 22: Chapter 4: Advantage Management Setup

    Configure the DNS parameters Configure RIP(Routing Information Protocol） Configure IP route Configure Security rule Configure DSL parameter NOTE: If you want to acquire further details, please access our website （www.tp-link. com）and consult the advantage user guide of TD-8840. - 20 -...

  • Page 23: Chapter 5: Fqa

    TD-8840 External ADSL2+ Router User Guide Chapter 5: FQA What related parameters are required to acquire ISP when you want to access the internet by ADSL2+ ROUTER? Dial user: Connection protocol, User name, Password, Value of VCI/VPI, Encapsulation mode of AAL5 and so on.

  • Page 24: Appendix A: Default Configuration

    TD-8840 External ADSL2+ Router User Guide Appendix A: Default Configuration USER NAME admin PASSWORD admin IP ADDRESS 192.168.1.1 VPI/VCI 0/32,1/33,0/35,0/100,0/200,8/35,8/81 - 22 -...

  • Page 25: Appendix B: Contact Information

    TD-8840 External ADSL2+ Router User Guide Appendix B: Contact Information For help with the installation or operation of the TP-LINK TD-8840 External ADSL2+ ROUTER, please contact us. E-mail: support@tp-link.com Website: http://www.tp-link.com - 23 -...
