SuperSnap™ with Rod Connector
Parts
Cable Clip
06-5050
Instructions for assembly
Step 1
Place cable into inner channel of
CableClip. The cable should
snap into place. Fig. 1
Align one end of the CableClip with
the top channel of the plastic holder.
Then insert one round end, press
down on the other round end and
slide CableClip into rail. Fig. 2
Note: Position CableClip about
halfway down each SuperSnap. Fig. 3
Step 2
Push rod halfway into clip rail
of one SuperSnap. Fig. 4
Step 3
Insert rod into top clip rail of second
SuperSnap until both holders meet.
Fig. 5 & 6 Repeat steps 2-3 for
additional SuperSnaps.
Page 1 of 2
The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products.
Part #02INSSuperSnapRodCCSaucer
Incept-11.13.02

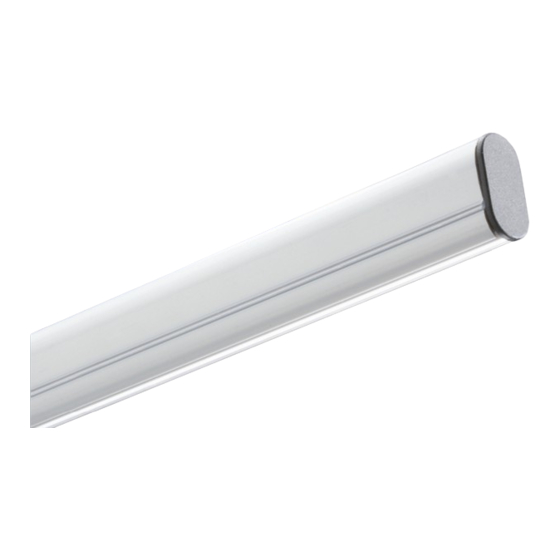

SuperSnap
