SuperSnap™ with AnoConnector

Parts

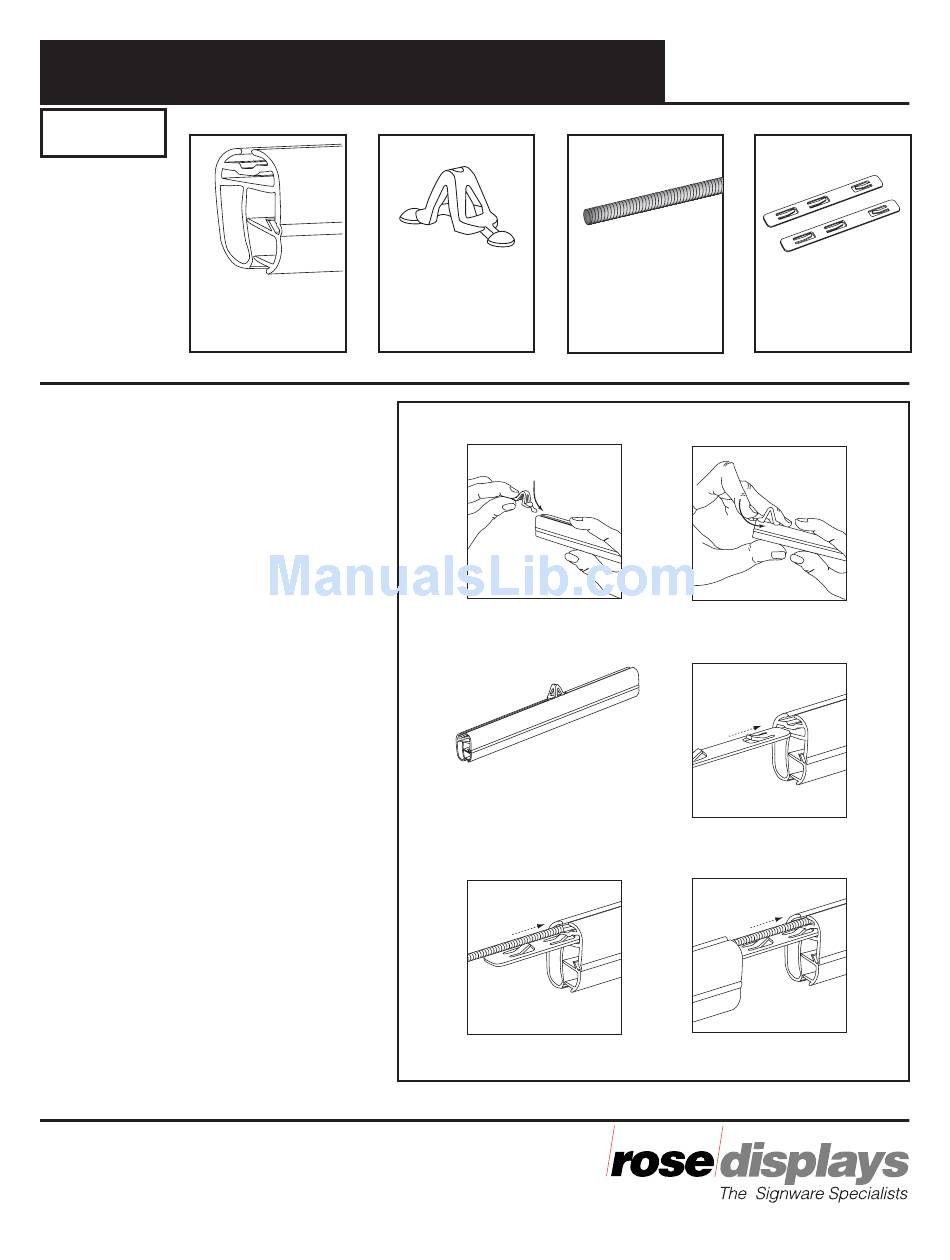

Instructions for assembly

Step 1

Slide MultiClip into top of the
SuperSnap. Holding clip at a slight
angle, first insert one round end,
then press down on other round
end and push MultiClip into
position. Fig. 1 & 2
Note: Position MultiClip about
halfway down each SuperSnap. Fig. 3

Step 2

Insert AnoConnector into rail of one
SuperSnap. Make sure tabs face
upward. The side with one tab must
go in first. Fig. 4

Step 3

Insert threaded rod halfway into clip
rail of the same SuperSnap. Fig. 5

Step 4

Push the second piece of SuperSnap
onto both AnoConnector and the
threaded rod. Push together until
both holders meet. Fig. 6 Repeat
steps 2-4 for additional SuperSnaps.
Page 1 of 2
The SuperSnap and AnoConnector are trademarks of Rose Displays, Ltd.
Neither the manufacturer nor any sales agent may be held liable for
injury, loss or damage resulting from the use of these products.
Part #02INSSuperSnapAnoConnector
Incept-9.12.02
SuperSnap
12S300
Multi Clips
1UP-0100
Figure 1
Figure 3
Figure 5
Instruction Sheet
AnoConnector
6" Rod
97-0304-06
Figure 2
Figure 4
Figure 6
