- Page 1 IM3147 06/2021 REV04 ® SPEEDTEC 400SP & 500SP OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment in case of Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX SPEEDTEC ® 400SP K14258-1 SPEEDTEC ® 500SP K14259-1 INPUT Input Voltage U EMC Class Frequency 400SP 400V ± 15% 50/60Hz 3-phase 500SP Input Power at Rated Cycle Input Amperes I 1max 20 kVA @ 100% Duty Cycle 400SP 28 A (40°C) - Page 4 DIMENSION Weight Height Width Length 400SP 53,5 kg 550 mm 295 mm 625 mm 500SP 54,5 kg 550 mm 295 mm 625 mm OTHERS Protection Rating Operating Humidity (t=20°C) 400SP IP23 ≤ 90 % 500SP Operating Temperature Storage Temperature 400SP from -10 ºC to +40 ºC from -25 ºC to +55 ºC 500SP...
-
Page 5: Eco Design Information
ECO design information The equipment has been designed in order to be compliant with the Directive 2009/125/EC and the Regulation 2019/1784/EU. Efficiency and idle power consumption: Efficiency when max power Index Name Equivalent model consumption / Idle power consumption Level I: 39W No equivalent model K14258-1 SPEEDTEC... - Page 6 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminium 0,8 ÷...
-
Page 7: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. This equipment does not comply with IEC 61000-3-12. If it is connected to a public low-voltage system, it is responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment may be connected. -
Page 8: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 9 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 10: Intoduction

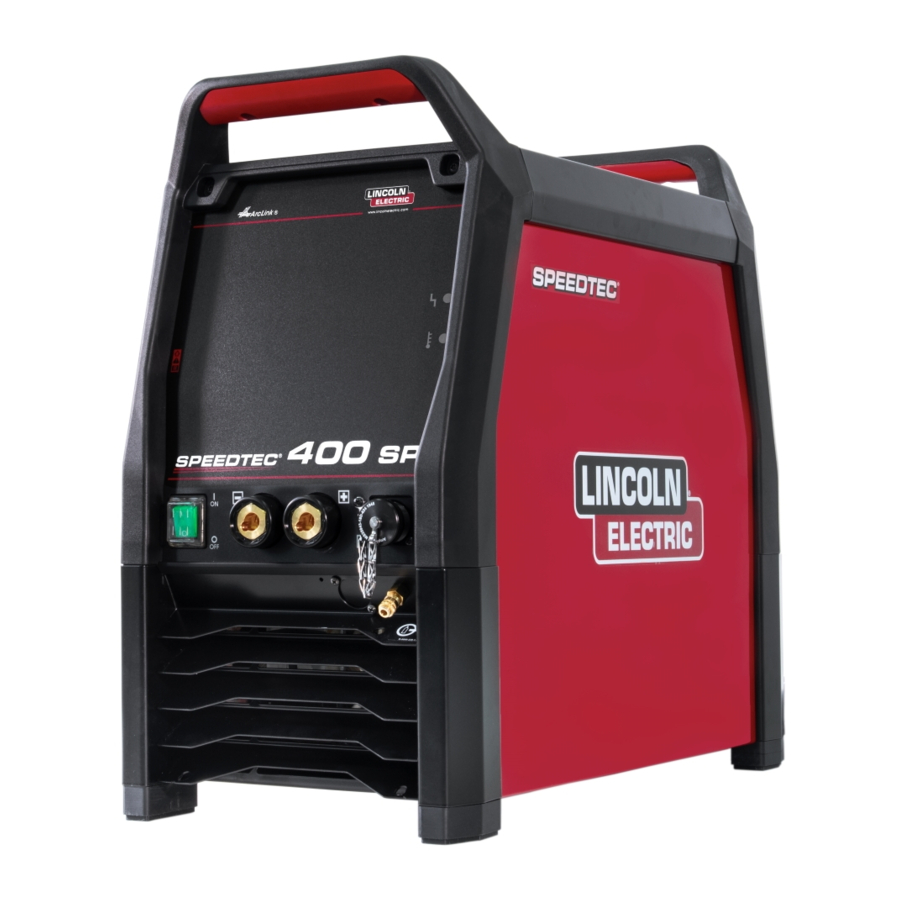

Intoduction ® SPEEDTEC 400SP&500SP are multi-process inverter The complete packaging includes the following items: power sources that work with digital wire feeders and the Power source ® ArcLink protocol is used for communication. USB with Operator’s Manual Power source with wire feeder allows the welding of: ... - Page 11 ON again. If the error remains, a maintenance is required. Please contact the nearest authorized technical service center or Lincoln Electric and report the error code read. Indicate no communication between the power source and device which...
- Page 12 Welding Cables Connection Insert the plug of the work lead into the socket [5]. The other end of this lead connects to the work piece with the work clamp. Connect the wire feeder to the power source: Insert the positive welding cable into the output socket [6].
- Page 13 Connection to the Ethernet network ® SPEEDTEC 400SP&500SP is equipped with an ethernet communication interface (RJ45 socket). Default power source settings are designated to Direct Connection where PC IP address is set to range 169.254.0. ® SPEEDTEC default factory settings DHCP IP Address 169.254.0.2...
- Page 14 2. Local Area Network In order to change SPEEDTEC ® IP address use Direct ® Connection first (see chapter 1) to change SPEEDTEC a) Static IP Addresses configuration. When SPEEDTEC ® is connected to the network which is ® connect to SPEEDTEC by Direct Connection equipped with a Hub or Switch (no DHCP server) it is...
- Page 15 b) Dynamic IP Addresses (DHCP Server, e.g. Router) Machine and Circuit Protection ® When SPEEDTEC is connected to the network which is Power Source is protected against overheating, overload equipped with a DHCP server it is required to set proper and accidental short-circuits.
- Page 16 Transport & Lifting Maintenance WARNING WARNING For any repair operations, modifications or maintenances, it is recommended to contact the nearest Technical Falling equipment can cause injury and damage to unit. Service Center Lincoln Electric. Repairs modifications performed by unauthorized service or personnel will cause, that the manufacturer’s warranty will become null and void.
- Page 17 Electric for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
-
Page 18: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 19: Accessories Suggested
Accessories Suggested K14335-1 LF 52D K14336-1 LF 56D ® K14297-1 COOLARC W000010167 FREEZCOOL 9,6L K14298-1 4-WEELS CART K14337-1 OUTPUT CONNECTION KIT (400SP&500SP) Welding cables GRD-400A-70-5M GROUND CABLE 400A/70MM²; 5 m GRD-400A-70-10M GROUND CABLE 400A/70MM²; 10 m GRD-400A-70-15M GROUND CABLE 400A/70MM²; 15 m GRD-600A-95-5M GROUND CABLE 600A/95MM²;... -
Page 20: Connection Configuration
Connection configuration English English...
