Summary of Contents for TREND PH/JIG/AK

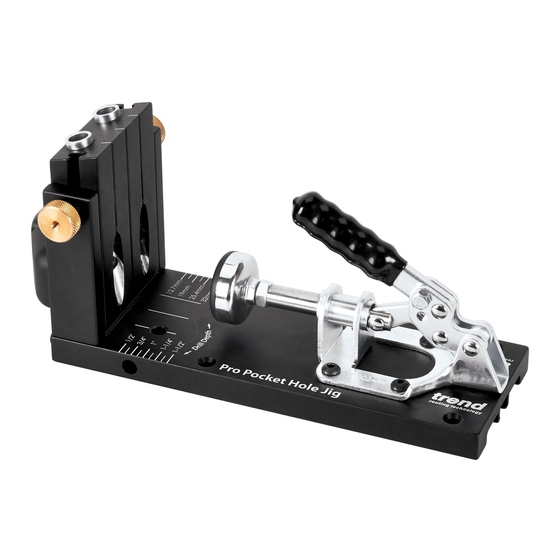

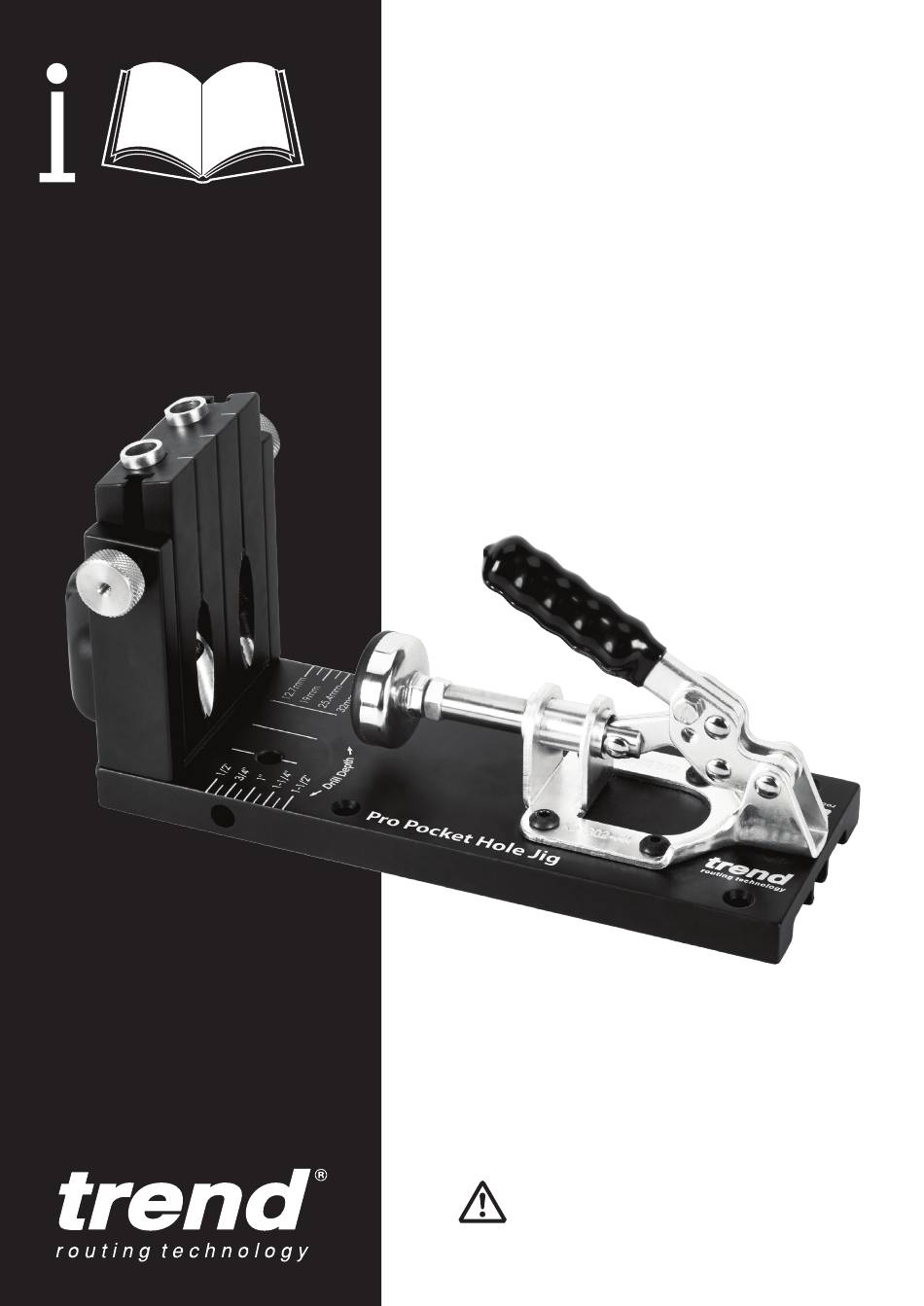

- Page 1 PRO POCKET HOLE JIG Please read these instructions before use.
-
Page 2: Table Of Contents
PH/JIG/AK Dear Customer TECHNICAL DATA Thank you for purchasing this Trend product, Material thickness: Min. 12.7mm we hope you enjoy many years of creative and Max. 38mm productive use. Material width: Min. 38mm Please remember to return your guarantee card within 28 days of purchase. - Page 3 PH/JIG/AK 5. Consider working environment. Do SAFETY 17. Don’t abuse the cable. Never carry not use the product in the rain or power tool or accessory by cord or in a damp environment. Keep work WARNING: pull it to disconnect from the socket. area well lit.
-
Page 4: Items Enclosed
PH/JIG/AK ITEMS ENCLOSED DESCRIPTION OF PARTS 1 x Pro pocket hole jig Pocket hole jig body Guide block with solid hardened bushes 1 x Hex shank quick release stepped drill 9.5mm ( ”) diameter HSS Solid bush drill guide hole... - Page 5 PH/JIG/AK 12.7 mm 1/2” 19 mm 3/4” 25.4 mm 1” 32 mm 1-1/4” 38 mm 1-1/2”...
-
Page 6: Assembly & Adjustment Setting Up The Jig
PH/JIG/AK ASSEMBLY & ADJUSTMENT Setting the Push-Pull Clamp To bore the pocket holes you will need to set Setting Up The Jig the clamp position to ensure it holds the material securely. The jig has a guide on the base to The jig can be used both fixed to a bench or help set the clamp to the correct thickness of portable depending on the application. -
Page 7: Setting The Drill Bit Depth
PH/JIG/AK Setting the Drill Bit Depth Check the collar position is correct before drilling to drill. If the depth collar is set too deep the The depth collar on the drill is used to control the screw may protrude through the face of the depth of the pocket, which also sets the length jointing piece. -
Page 8: Operation
PH/JIG/AK OPERATION Using the Portable Base The Adjustable pocket hole jig can be turned into Pocket Hole Spacing a portable jig by removing the drill guide block and guide columns, then attaching the portable When boring framing material, two pocket holes base plate. - Page 9 PH/JIG/AK For use as end stops insert the bar into the hole Using the Stabilising Bars in the side of the jig as shown across the page. The stabilising bars and supports/end stops can Push the end stops on to the bar through the be used to stabilise the workpiece or to hold the hole in the front as shown below.
-
Page 10: Drilling The Pocket Holes
PH/JIG/AK Drilling the Pocket Holes Do not push hard on the drill until the drill pilot tip of the Boring the counter-bored hole involves drilling drill bit is fully into the work with a stepped drill into one of the joint pieces. piece and the counterbore Fit the material to be drilled into the jig and section is actually cutting. -
Page 11: Assembling The Joint
” quick change shank and can be used directly into a drill chuck or more conveniently into a Trend Snappy quick change drill chuck Ref. SNAP/QC. If a torque control screwdriver is not available start to screw with a conventional drill and then... -
Page 12: Applications
PH/JIG/AK Square Corner Joints – faster and stronger APPLICATIONS than dowel and biscuits. Self clamping whilst Frame Corner Joints – faster and stronger than glue is drying. dowel and biscuits. Self clamping whilst glue is drying. T- Joints – faster and stronger than dowel and biscuits. - Page 13 PH/JIG/AK Angled Joints – eliminates difficult clamping Curved Joints – this uses the same technique up. The joint is created not by cutting each mitre as the angled joint, but the angles will be to half the angle but by cutting angle on one shallower (5°...
- Page 14 PH/JIG/AK Edge to Edge Joints – allows narrow strips Edging of countertops or shelving – quick and to be jointed to create wider boards such as a easy way to join edging onto plywood, MDF or table top. Particle board shelves. Jig making –...
-
Page 15: Accessories
PH/JIG/AK PH/JIG/AK ACCESSORIES MAINTENANCE Please use only Trend original accessories. Please use only Trend original spare parts and accessories. Self Tapping Screws Square Drive The accessory has been designed to operate Fine Thread over a long period of time with minimum of maintenance. -
Page 16: Spare Parts List
PH/JIG/AK Please use only Trend original spare parts. PH/JIG/AK - SPARE PARTS LIST v1.0 08/2018 Qty. Desc. Ref. Jig Base WP-PHJA/01 Guide Block with Solid Bushes WP-PHJA/02 Drill Depth Turret WP-PHJA/03 Guide Block Column WP-PHJA/04 Guide Block Column Adjustment Knobs... -
Page 17: Spare Parts Diagram
PH/JIG/AK PH/JIG/AK - SPARE PARTS DIAGRAM v1.0 08/2018 -16-... -
Page 18: Trouble Shooting
PH/JIG/AK TROUBLE SHOOTING Fault Cause Remedy n Drill guide columns move Fixing screw not tight. Tighten fixing screw with hex. when drilling. n Screw protrudes through Depth collar set too high causing Adjust height of collar on face of mating piece. drill bit to drill too deep. - Page 19 RECYCLABLE www.trend-uk.com © Copyright Trend 2018. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools...
