Summary of Contents for TREND PH/JIG/M

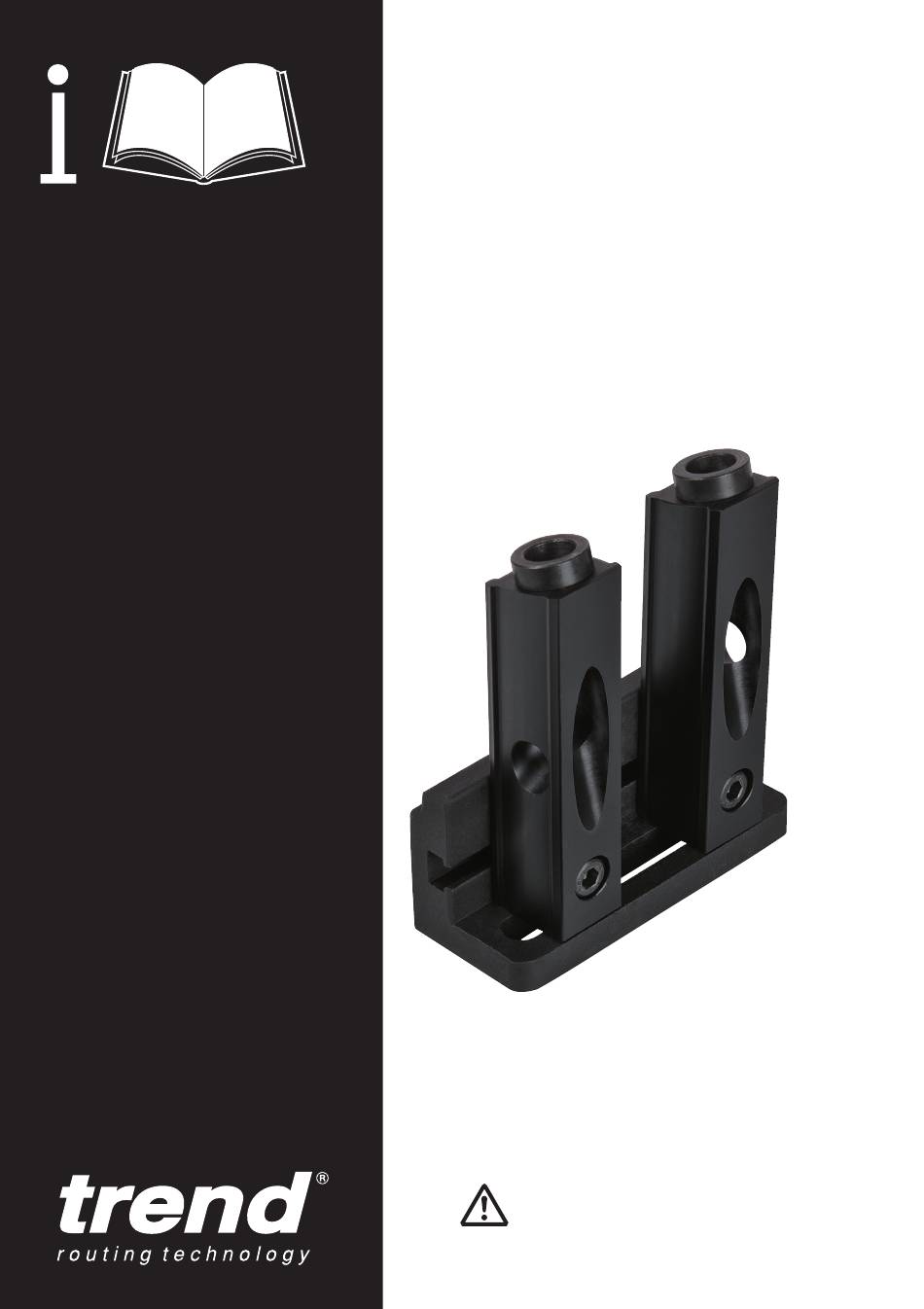

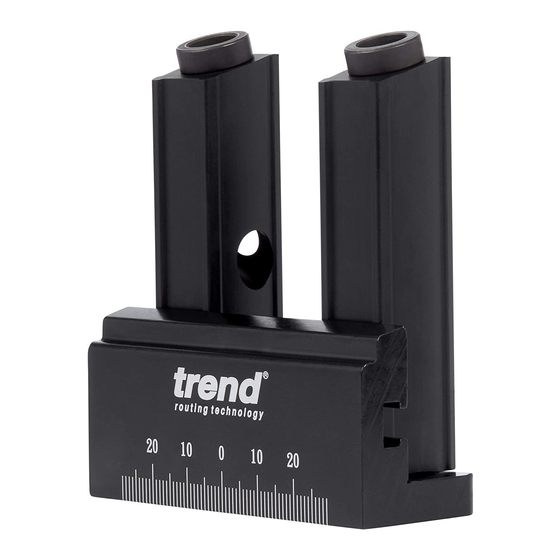

- Page 1 PH/JIG/M Please read these instructions before use.
-
Page 2: Table Of Contents
PH/JIG/M Dear Customer TECHNICAL DATA Thank you for purchasing this Trend product, Material thickness: Min. 16mm we hope you enjoy many years of creative and Max. 38mm productive use. Material width: 38mm Please remember to return your guarantee card within 28 days of purchase. -
Page 3: Safety Precautions
PH/JIG/M SAFETY 5. Consider working environment. Do 17. Don’t abuse the cable. Never carry not use the product in the rain or in power tool or accessory by cord or a damp environment. Keep work pull it to disconnect from the socket. -
Page 4: Pocket Hole Concept
PH/JIG/M POCKET HOLE CONCEPT ITEMS ENCLOSED A pocket hole concept involves clamping a Mini Pocket Hole Jig with long base and pocket hole jig to one piece of the material to columns be joined in the jig and boring two counter- bored holes with a special stepped drill. -
Page 5: Description Of Parts
PH/JIG/M DESCRIPTION OF PARTS C K E I P O M I N E J I H O L Square drive self-tapping screw Jig base Scale marker Short (flush base) Scale marker fixing screw Guide columns with solid bushes Guide column locking screw... -
Page 6: Assembly & Adjustment
H O L PH/JIG/M The jig has scale markers that screw into the ASSEMBLY & ADJUSTMENT underside of the guide columns and can be used Setting up the Long or Short Base to position the guide columns to a scale on the The jig is supplied with two bases long and short. -
Page 7: Setting The Drill Bit Depth
PH/JIG/M through the face of the jointing piece. If too Setting the Drill Bit Depth shallow the screw may not enter into the joint The depth collar on the drill is used to control the sufficiently. depth of the pocket, which also sets the length... -
Page 8: Operation Material Thickness
PH/JIG/M OPERATION For timber 32mm to 38mm thick set the collar 110mm from the drill tip, and the base 19mm Material Thickness from the edge of the timber. Long Base 110mm For timber from 16mm to 38mm the long base is used. -
Page 9: Pocket Hole Spacing
PH/JIG/M n Switch on drill at full speed (clockwise Pocket Hole Spacing direction) and drill into the component until the When boring framing material, two pocket holes collar touches the bush. Gently pulling drill in should be used to keep the timber from twisting. -
Page 10: Assembling The Joint
The screwdriver bits have 1/4” quick change shanks and can be used directly into a drill chuck or more conveniently into a Trend Snappy quick change drill chuck Ref. SNAP/QC. If a torque control screwdriver is not available... -
Page 11: Applications
PH/JIG/M APPLICATIONS Frame Corner Joints – faster and stronger than Square Corner Joints – faster and stronger dowel and biscuits. Self clamping whilst glue is than dowel and biscuits. Self clamping whilst drying. glue is drying. T- Joints – faster and stronger than dowel and biscuits. - Page 12 PH/JIG/M Angled Joints – eliminates difficult clamping up. The joint is created not by cutting each mitre to half the angle but by cutting angle on one jointing piece and drilling pocket holes into the square piece. The method results in the mitred edge having an overhang, which will need to be removed by plane or sander.
- Page 13 PH/JIG/M Edge to Edge Joints – allows narrow strips to Edging of countertops or shelving – quick and be jointed to create wider boards such as a table easy way to join edging onto plywood, MDF or top. Particle board shelves.
-
Page 14: Accessories
PH/JIG/M ACCESSORIES MAINTENANCE Please use only Trend original accessories. Please use only Trend original spare parts and accessories. Self Tapping Screws Square Drive The accessory has been designed to operate Standard Thread No.7x30mm. over a long period of time with minimum of Pack 500 maintenance. -
Page 15: Spare Parts List
PH/JIG/M PH/JIG/M Please use only Trend original spare parts. PH/JIG - SPARE PARTS LIST v1.0 01/2014 Qty. Desc. Ref. Base Long WP-PHJM/01 Base Short WP-PHJM/02 Guide Column with Solid Bush WP-PHJM/03 Machine Screw Cap M5 x 20mm Skt WP-SCW/122 Hex Nut M5... -
Page 16: Spare Parts Diagram
PH/JIG/M PH/JIG/M - SPARE PARTS DIAGRAM v1.0 01/2014 C K E I P O M I N E J I H O L C K E I P O M I N E J I H O L -15-... -
Page 17: Trouble Shooting
PH/JIG/M TROUBLE SHOOTING Fault Cause Remedy n Drill guide columns move Fixing screw not tight. Tighten fixing screw with hex key. when drilling. n Screw protudes through Depth collar set too high causing Adjust height of collar on drill bit face of mating piece. - Page 18 RECYCLABLE © Copyright Trend 2014. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools...
