BWA für Austauschmesserset KTP 1000 / SPZ 1000 / STZ 1000
GB: Instructions for replacement blade set KTP1000 / SPZ 1000 / STZ 1000
F : Instructions spécifiques au kit de tranchant de rechange KTP1000 / SPZ 1000 / STZ 1000
I: Istruzioni per il kit della lama di ricambio KTP1000 / SPZ 1000 / STZ 1000
NL: Handleiding voor vervangende messenset KTP1000 / SPZ 1000 / STZ 1000
PL: Instrukcja - zestaw wymiany no a KTP1000 / SPZ 1000 / STZ 1000

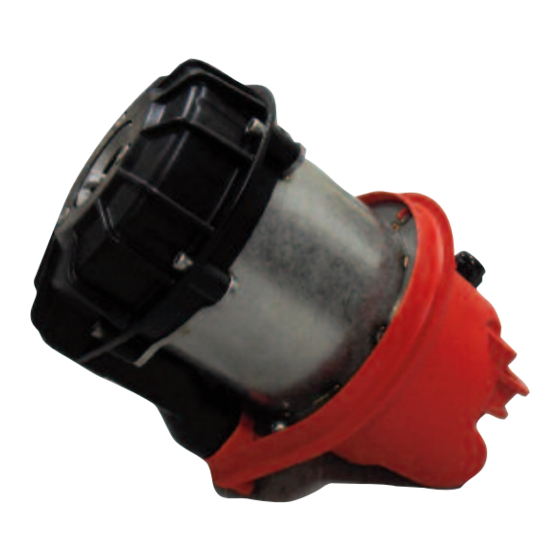

KTP 1000
D
Beachten Sie die Sicherheitshinweise und weitere Beschreibung in den zugehörigen Einbauanleitungen.
GB
Please head the safety instructions and more detailed description in the respective installation manuals.
F
Respectez les consignes de sécurité et autres descriptions données dans les instructions de montage
respectives.
I
Osservare le istruzioni di sicurezza e le ulteriore descrizione nelle relative istruzioni di montaggio.
NL
Neem de veiligheidsinstructies en de overige omschrijving in de bijbehorende montagehandleidingen in
acht.
PL
Nale y przestrzega wskazówek bezpiecze stwa oraz odpowiednich opisów umieszczonych we
wła ciwych instrukcjach monta owych.
010 006
SPZ 1000 / STZ 1000
2014/10
Advertisement
Related Manuals for Kessel STZ 1000
Summarization of Contents
Blade Set Replacement Instructions
General Safety and Operation
System must be put out of operation before fitting work. Use emergency-stop or remove mains plug.
Staff Qualification Requirements
Operators must be at least 18, trained, and familiar with safety rules for installation and service.
Tools Required for Installation
List of necessary tools including spanner, Allen key, and screwdriver for blade set installation.
Housing Identification and Initial State
Identifying Required Housing
Guidance on selecting the correct housing for the KTP 1000 or SPZ 1000 / STZ 1000 units.
Initial Housing Condition
Describes the initial state of the spiral casing, noting the presence of rivets.
Blade Set Replacement Procedure
Removing the Spiral Casing
Loosen specific screws (M5x25/M5x20) with TX10 socket to remove the spiral casing.
Opening Blade Bolt
Use a 10mm spanner socket to open the hexagon bolt of the blade.
Removing the Blade
Instructions for detaching the blade from the pump assembly.
Removing the Impeller
Instructions for detaching the impeller from the pump assembly.
Centring Mandrel Tightening
Hand-tighten the centring mandrel with the M6x30 flange screw.
Aligning Cutting Plate
Place and align the cutting plate on the centring mandrel.
Mounting New Spiral Casing
Fit the new spiral casing onto the pump, aligning holes with the cutting plate.
Securing Spiral Casing
Fix the spiral casing using two pan head screws.
Centred Holes Fastening
Screw centred holes using 3 serrated washers and 3 flange screws (M6x8) at 4Nm.
Re-loosening Casing Screws
Loosen the 2 screws fixing the spiral casing to remove it after initial assembly.
Dismantling Mandrel and Impeller
Dismantle the centring mandrel and the impeller.
Resetting the Blade
Instructions for placing the blade back into position.
Securing with Hexagon Bolt
Tighten both parts using the M6x12 hexagon bolt (4.5 Nm).
Re-attaching Spiral Casing
Attach the previously removed spiral casing with the cutting plate.
Cross-wise Tightening of Screws
Cross-wise tighten M5x25 screws to ensure proper centring (2.5 Nm).
Tightening Sequence for Screws
Follow the specified sequence for tightening the M5x25 pan head screws.
Completed Blade Set
Indicates the final state of the blade set after successful assembly.
