16-Port Fast Ethernet Switch


   Also See for ENCORE ENH916P-NWY

   Related Manuals for ENCORE ENH916P-NWY

   Summary of Contents for ENCORE ENH916P-NWY

  • Page 1: User Guide

    ENH916P-NWY 16-Port Fast Ethernet Switch User Guide...

  • Page 2

    FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limitations are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Unpacking Information

    1. Unpacking Information Thank you for purchasing the 16-Port Fast Ethernet Switch. Before you start, please check all the contents of this package. The product package should include the following: 1. One 16-Port Fast Ethernet Switch 2. One power adapter 3.

  • Page 4

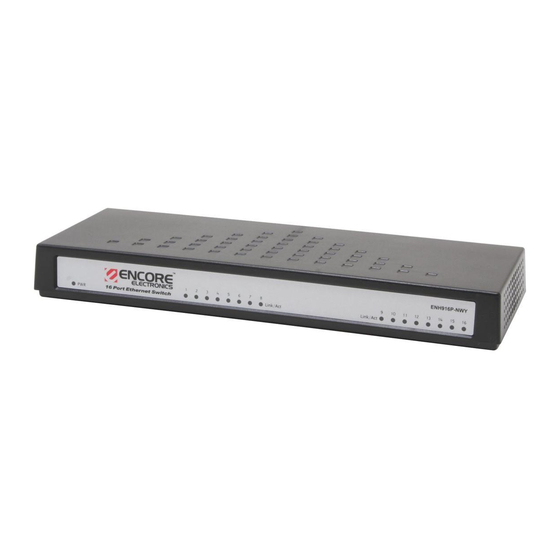

    2. Introduction General Description The device is a powerful, high-performance Fast Ethernet switch, with all 16 ports capable of 10 or 100Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications.

  • Page 5

    2.2 The Front Panel The auto-negotiation feature of the switch allows each port of the device running at one of the following four operation modes: 1. 100Mbps full-duplex 2. 100Mbps half-duplex 3. 10Mbps full-duplex 4. 10Mbps half-duplex *Each 10/100Mbps port supports auto MDI-X capability that is the port could connect either the PC or switch without any cable adjustment.

  • Page 6

    3. Installing and Using the Switch 3.1 Installing The 16-Port Fast Ethernet Switch Desktop Installation Locate the switch on the desktop and place the switch on a clean, flat desk or table close to a power outlet. Plug in all network connections and the power cord, then the system is ready. When deciding where to put the switch, you must ensure: It is accessible and cables can be connected easily ...

  • Page 7: Product Specifications

    Product Specifications IEEE802.3, 10BASE-T IEEE802.3u, 100BASE-TX Standard IEEE802.3x Full Duplex operation Flow Control Interface 16 * RJ-45 NWay switching ports RJ-45 (10BASE-T) : Category 3,4,5 UTP/STP Cable Connections RJ-45 (100BASE-TX) : Category 5 UTP/STP Network Data Rate Auto-negotiation (10Mbps, 100Mbps) Auto-negotiation Transmission Mode (Full-duplex, Half-duplex)
