Encore EN-2000 Quick Configuration Manual

EN-2000™ Quick Configuration
Guide
T
he is

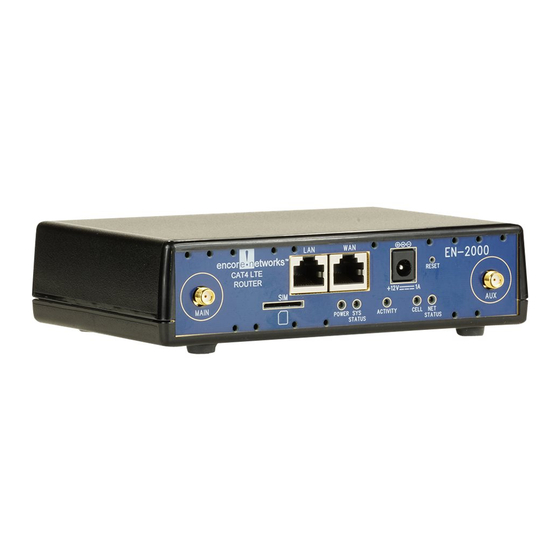

EN-2000™
LTE public and private networks. This compact IP router provides IP, VPN, firewall,
Ethernet and IP interworking with an embedded Verizon LTE cell module. The EN-2000
supports remote monitoring, video/alarm panel surveillance, business continuity, and
enterprise support.
The EN-2000 router supports cellular data and traditional broadband networks such as DSL,
cable, and Ethernet. The EN_2000 chassis can also support a 5 GHz 802.11 wireless module.
Disaster-recovery failover and business-continuity failover are standard.
This document provides information to configure the EN-2000 router quickly. For details of
configuration, see the EN-2000 customer documentation.
Note: If you have any problems when configuring the EN-2000, contact your EN-2000
distributor.
Connecting the EN-2000
1 Use an Ethernet cable to connect a management PC to the LAN port on the EN-2000.
Note: For details of hardware connection, see the EN-2000™ Quick Installation Guide. To
interpret the EN-2000's LEDs, see the Quick Guide to EN-2000™ LED Codes.
2 Power up the EN-2000.
3 On the management PC, open a browser and type the IP address 192.168.10.1 in the
browser's address field.
4 Log in with the user name (admin) and the password (encore!1).
❖ The management system's Status Overview screen opens.
For information on trademarks, safety, limitations
of liability, and similar topics, see
http://www.encorenetworks.com/disclaimer.htm.
a high-performance, low-cost VPN router designed for Verizon Wireless

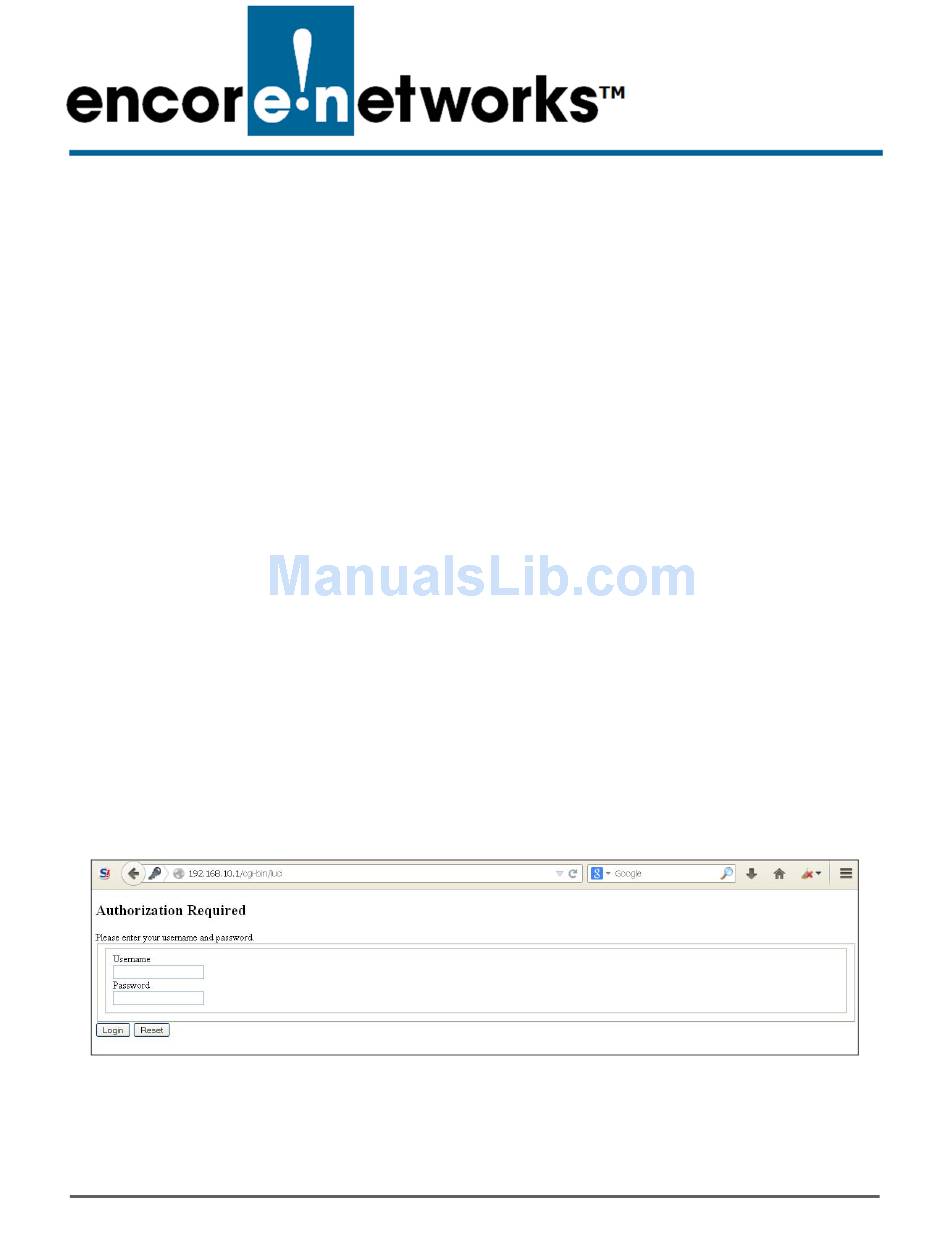

EN-2000 Log-In Screen
Document Part Number 17539.0000
Version A.4, March 2015
© 2015 Encore Networks, Inc. All rights reserved.
Verizon Wireless has certified the EN-2000™
for use in its 4G LTE networks.
