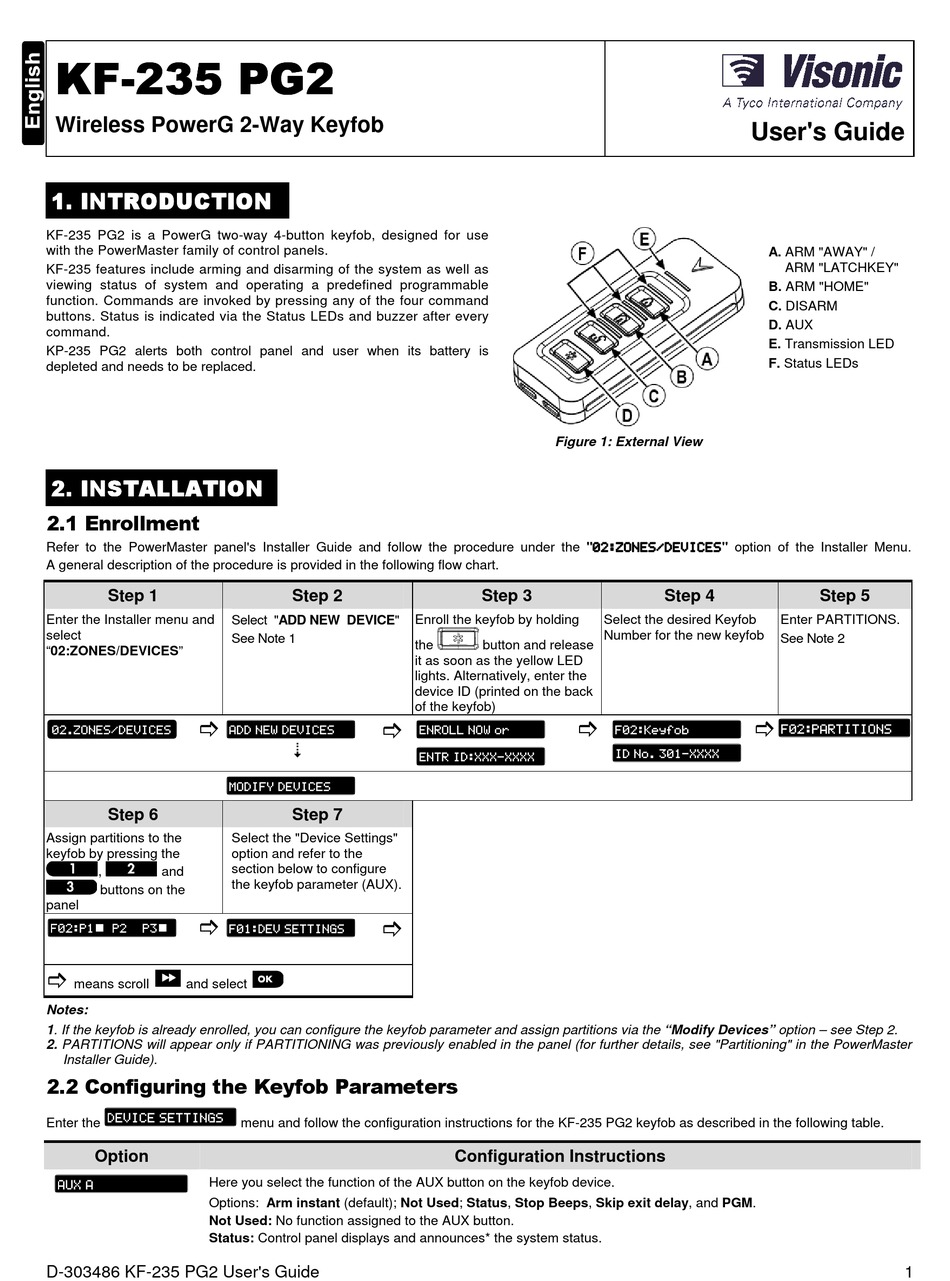

Visonic KF-235PG2 User Manual

KF KF- - - - 235 235 PG2
KF KF 235 235
Wireless PowerG 2-Way Keyfob
1. INTRODUCTION 1. INTRODUCTION 1. INTRODUCTION 1. INTRODUCTION
KF-235 PG2 is a PowerG two-way 4-button keyfob, designed for use
with the PowerMaster family of control panels.
KF-235 features include arming and disarming of the system as well as
viewing status of system and operating a predefined programmable
function. Commands are invoked by pressing any of the four command
buttons. Status is indicated via the Status LEDs and buzzer after every
command.
KP-235 PG2 alerts both control panel and user when its battery is
depleted and needs to be replaced.
2 2 2 2 . . . . INSTALLATION INSTALLATION INSTALLATION INSTALLATION
2.1 Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES
A general description of the procedure is provided in the following flow chart.
Step 1
Enter the Installer menu and
select
"02:ZONES/DEVICES"
02.ZONES/DEVICES
Step 6
Assign partitions to the
keyfob by pressing the
, and
buttons on the
panel
F02:P1 P2 P3
means scroll and select
Notes:
1. If the keyfob is already enrolled, you can configure the keyfob parameter and assign partitions via the "Modify Devices" option – see Step 2.
2. PARTITIONS will appear only if PARTITIONING was previously enabled in the panel (for further details, see "Partitioning" in the PowerMaster
Installer Guide).
2.2 Configuring the Keyfob Parameters
DEVICE SETTINGS
Enter the
Option
Here you select the function of the AUX button on the keyfob device.
AUX A
Options: Arm instant (default); Not Used; Status, Stop Beeps, Skip exit delay, and PGM.
Not Used: No function assigned to the AUX button.
Status: Control panel displays and announces* the system status.
D-303486 KF-235 PG2 User's Guide
PG2
PG2 PG2
Step 2
Select "ADD NEW DEVICE"
See Note 1
ADD NEW DEVICES
MODIFY DEVICES
Step 7
Select the "Device Settings"
option and refer to the
section below to configure
the keyfob parameter (AUX).
F01:DEV SETTINGS
menu and follow the configuration instructions for the KF-235 PG2 keyfob as described in the following table.
Figure 1: External View
02:ZONES/DEVICES" option of the Installer Menu.
02:ZONES/DEVICES 02:ZONES/DEVICES
Step 3
Enroll the keyfob by holding
the button and release
it as soon as the yellow LED
lights. Alternatively, enter the
device ID (printed on the back
of the keyfob)
ENROLL NOW or
ENTR ID:XXX-XXXX
Configuration Instructions
User's Guide
A. ARM "AWAY" /
B. ARM "HOME"
C. DISARM
D. AUX
E. Transmission LED
F. Status LEDs
Step 4
Select the desired Keyfob Enter PARTITIONS.
Number for the new keyfob
See Note 2
F02:PARTITIONS
F02:Keyfob
ID No. 301-XXXX
ARM "LATCHKEY"
Step 5
1
