Visonic KF-235 PG2 User Manual

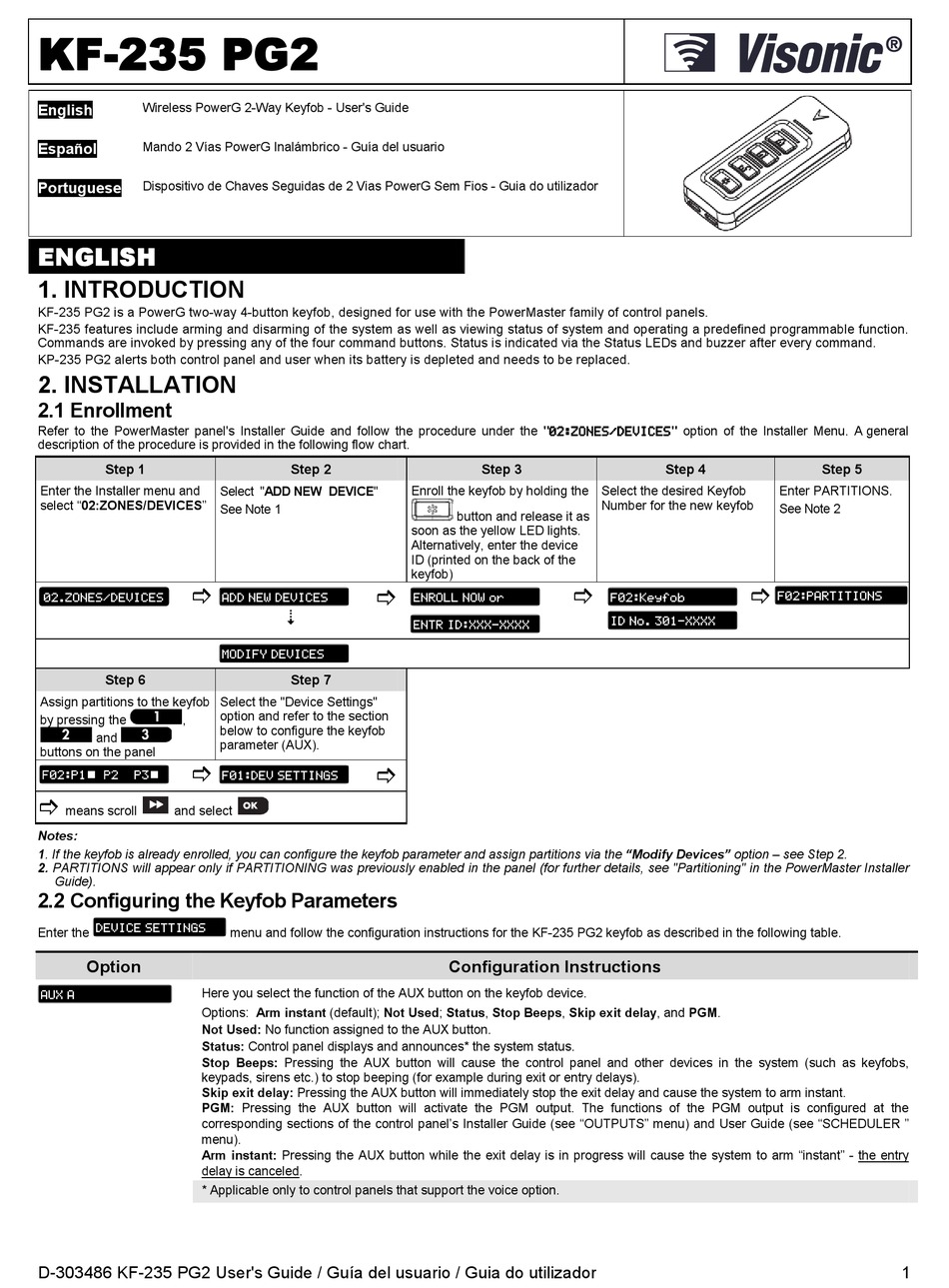

KF-235 PG2
Wireless PowerG 2-Way Keyfob - User's Guide
English
Español Mando 2 Vías PowerG Inalámbrico - Guía del usuario
Portuguese Dispositivo de Chaves Seguidas de 2 Vias PowerG Sem Fios - Guia do utilizador
ENGLISH
1. INTRODUCTION

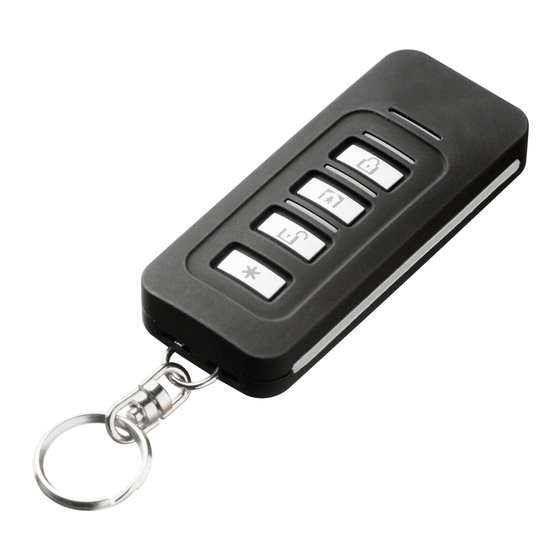

KF-235 PG2 is a PowerG two-way 4-button keyfob, designed for use with the PowerMaster family of control panels.
KF-235 features include arming and disarming of the system as well as viewing status of system and operating a predefined programmable function.
Commands are invoked by pressing any of the four command buttons. Status is indicated via the Status LEDs and buzzer after every command.
KP-235 PG2 alerts both control panel and user when its battery is depleted and needs to be replaced.
2. INSTALLATION
2.1 Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu. A general
description of the procedure is provided in the following flow chart.
Step 1
Enter the Installer menu and
select "02:ZONES/DEVICES"

02.ZONES/DEVICES
Step 6
Assign partitions to the keyfob
by pressing the ,
and
buttons on the panel

F02:P1 P2 P3

means scroll and select
Notes:
1. If the keyfob is already enrolled, you can configure the keyfob parameter and assign partitions via the "Modify Devices" option – see Step 2.
2. PARTITIONS will appear only if PARTITIONING was previously enabled in the panel (for further details, see "Partitioning" in the PowerMaster Installer
Guide).
2.2 Configuring the Keyfob Parameters
DEVICE SETTINGS
Enter the
Option
Here you select the function of the AUX button on the keyfob device.
AUX A
Options: Arm instant (default); Not Used; Status, Stop Beeps, Skip exit delay, and PGM.
Not Used: No function assigned to the AUX button.
Status: Control panel displays and announces* the system status.
Stop Beeps: Pressing the AUX button will cause the control panel and other devices in the system (such as keyfobs,
keypads, sirens etc.) to stop beeping (for example during exit or entry delays).
Skip exit delay: Pressing the AUX button will immediately stop the exit delay and cause the system to arm instant.
PGM: Pressing the AUX button will activate the PGM output. The functions of the PGM output is configured at the
corresponding sections of the control panel's Installer Guide (see "OUTPUTS" menu) and User Guide (see "SCHEDULER "
menu).
Arm instant: Pressing the AUX button while the exit delay is in progress will cause the system to arm "instant" - the entry
delay is canceled.
* Applicable only to control panels that support the voice option.
D-303486 KF-235 PG2 User's Guide / Guía del usuario / Guia do utilizador
Step 2
Select "ADD NEW DEVICE"
See Note 1

ADD NEW DEVICES

MODIFY DEVICES
Step 7
Select the "Device Settings"
option and refer to the section
below to configure the keyfob
parameter (AUX).

F01:DEV SETTINGS
menu and follow the configuration instructions for the KF-235 PG2 keyfob as described in the following table.
Step 3
Enroll the keyfob by holding the
button and release it as
soon as the yellow LED lights.
Alternatively, enter the device
ID (printed on the back of the
keyfob)

ENROLL NOW or
ENTR ID:XXX-XXXX
Configuration Instructions
Step 4
Select the desired Keyfob Enter PARTITIONS.
Number for the new keyfob
See Note 2

F02:PARTITIONS
F02:Keyfob
ID No. 301-XXXX
Step 5
1
