Visonic KF-235 PG2 User Manual

KF- - - - 235 PG2 KF KF KF 235 PG2 235 PG2 235 PG2
ENG Wireless PowerG 2-Way Keyfob - User's Guide
Mando 2 Vías PowerG Inalámbrico - Guía del usuario
ES
PT Dispositivo de Chaves Seguidas de 2 Vias PowerG Sem Fios - Guia do utilizador
ENG ENG ENG ENG
1. INTRODUCTION

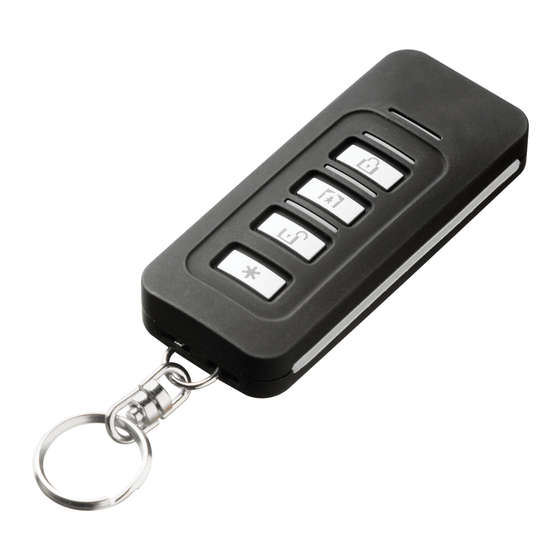

KF-235 PG2 is a PowerG keyfob, for use with the PowerMaster panels.
Commands are invoked by pressing any of the four command buttons. Status is indicated via the Status LEDs and buzzer after every command.
2. INSTALLATION
2.1 Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES
Step 1
Enter the Installer menu and select
"02:ZONES/DEVICES"
02.ZONES/DEVICES
Step 5
Enter PARTITIONS.
See Note 2
F02:PARTITIONS
2.2 Configuring the New Keyfob Template
DEVICE SETTINGS
Enter the
Option
AUX A
Here you select the function of the "
Options: Arm instant (default); Not Used; Status, Stop Beeps, Skip exit delay, and PGM*.
Not Used: No function assigned to the AUX button.
Status: Control panel displays and announces** the system status.
Stop Beeps: The control panel and other devices in the system stop beeping (for example during exit or entry delays).
Skip exit delay: Immediately stops the exit delay and causes the system to arm.
PGM: Activates the PGM output.**
Arm instant: While exit delay is in progress, this will cause the system to arm instant – (the entry delay is canceled).
* For UL Listed product, it is not permitted to enable either Stop Beeps or PGM.
** Applicable only to control panels that support the voice option.
3. USING THE KEYFOB
3.1 Keyfob Functionality
Step Functions
Arm AWAY
1
Arm HOME
D-303486 KF-235 PG2 User's Guide / Guía del usuario / Guia do utilizador
Step 2
Select "ADD NEW DEVICE"
See Note 1
ADD NEW DEVICES
MODIFY DEVICES
Step 6
Assign partitions by pressing the
, and
buttons
F02:P1 P2 P3
means scroll and select
menu and follow the configuration instructions for the KF-235 PG2 keyfob as described in the following table.
∗ ∗ ∗ ∗
User Actions
02:ZONES/DEVICES" option of the Installer Menu.
02:ZONES/DEVICES 02:ZONES/DEVICES
Step 3
Enroll the keyfob by holding the
button and release it as soon
as the yellow LED lights, or, enter the
device ID (on the back of keyfob)
ENROLL NOW or
ENTR ID:XXX-XXXX
Step 7
Select "Device Settings" and see
below to configure the (AUX) button.
F01:DEV SETTINGS
Configuration Instructions
" button on the keyfob device.
Blue LED above AWAY button lights
Blue LED above HOME button lights
Step 4
Select the desired Keyfob Number
for the new keyfob
F02:Keyfob
ID No. 301-XXXX
Notes:
1. If the keyfob is already enrolled,
you can configure the keyfob
parameter and assign partitions
via the "Modify Devices" option
– see Step 2.
2. PARTITIONS will appear only if
PARTITIONING was previously
enabled in the panel.
ARM/DISARM LED Indication
1
