1. INTRODUCTION 1. INTRODUCTION 1. INTRODUCTION 1. INTRODUCTION
The MCM-140/MCM-140+ is a wireless remote control unit for the PowerMax
family control panels. The MCM-140 and MCM-140+ differ in their transmitted
ID type and functions, as detailed in the Specifications.
The MCM-140/MCM-140+ enables the user to arm/disarm the alarm
system, to initiate emergency/fire/panic alarms, to perform one of the AUX
(auxiliary) functions (see Note 2 and 3 in Section 7) and to turn lighting
devices on and off. The keypad includes an RF transmitter that sends out
a differently coded RF signal for each command.
For PowerMax, the MCM-140 enables activation of the Aux (Auxiliary),
seven home control outputs (X-10), one PGM output, Fire and Emergency
functions. Each button needs to be individually defined for the AUX, PGM or
X-10 functions at the corresponding points of the define panel and define
outputs menu of the control panel.
For PowerMax+, PowerMax Pro, PowerMaxComplete or PowerMaxExpress
all the functionality is implemented automatically without using space of the
zones.
The main features of the MCM-140/MCM-140+ are:
• Automatic reporting of low battery voltage.
• Visual indications by red/green/amber LED.
• Keypad back lighting (selectable).
• Various audible signals sounded by the buzzer in response to specific
actions.
• Automatic supervision messages at 60 minute intervals or according to
the local standards.
• Long-life 3 year battery life expectancy (for typical user) 3 VDC
lithium battery.
• Wall mounting option.
• Friendly programming.
The red LED lights during transmission. The amber LED lights during the
programming process (and during transmission if battery voltage is low). The
green LED lights upon each keystroke.
2. SPECIFICATIONS 2. SPECIFICATIONS 2. SPECIFICATIONS 2. SPECIFICATIONS
Transmitted ID Type and Functions:
Transmitted
ID Type MCM-140
Used for Lights 1-7,
PowerCode
Light 8 (PGM control),
Fire and Emergency
functions
CodeSecure - Used for
CodeSecure
Home arming, Away
arming, Disarming, Aux
and Panic (*) functions
* Panic alarm is not operative in ACPO compliant products (UK).
Operating Frequency (MHz): 315, 433.9 and 868.95, 869.2625 or
according to requirement in country of use.
Battery: 3 VDC, Lithium battery 1450 mA/h, CR123A
Low Battery Threshold: 2.7V
3. MOUNTING 3. MOUNTING AND BATTERY REPLACEMENT AND BATTERY REPLACEMENT
3. MOUNTING 3. MOUNTING AND BATTERY REPLACEMENT AND BATTERY REPLACEMENT
Drill 2 holes in mounting surface, insert wall
anchors and fasten the bracket with 2 screws
1
Figure 2 - Mounting
DE2461U MCM-140, MCM-140+ User's Guide
MCM MCM- - - - 140+ MCM 140+ 140+ 140+
Functions
MCM-140+
-
Home arming, Away arming,
Disarming, Aux, Panic (*),
Lights 1-7, Duress, Fire and
Emergency.
Slide the keypad
into the bracket
2
3-color
Buzzer LED
Away
2
Home
5
8
Aux
0
#
*
Emer-
gency
Panic

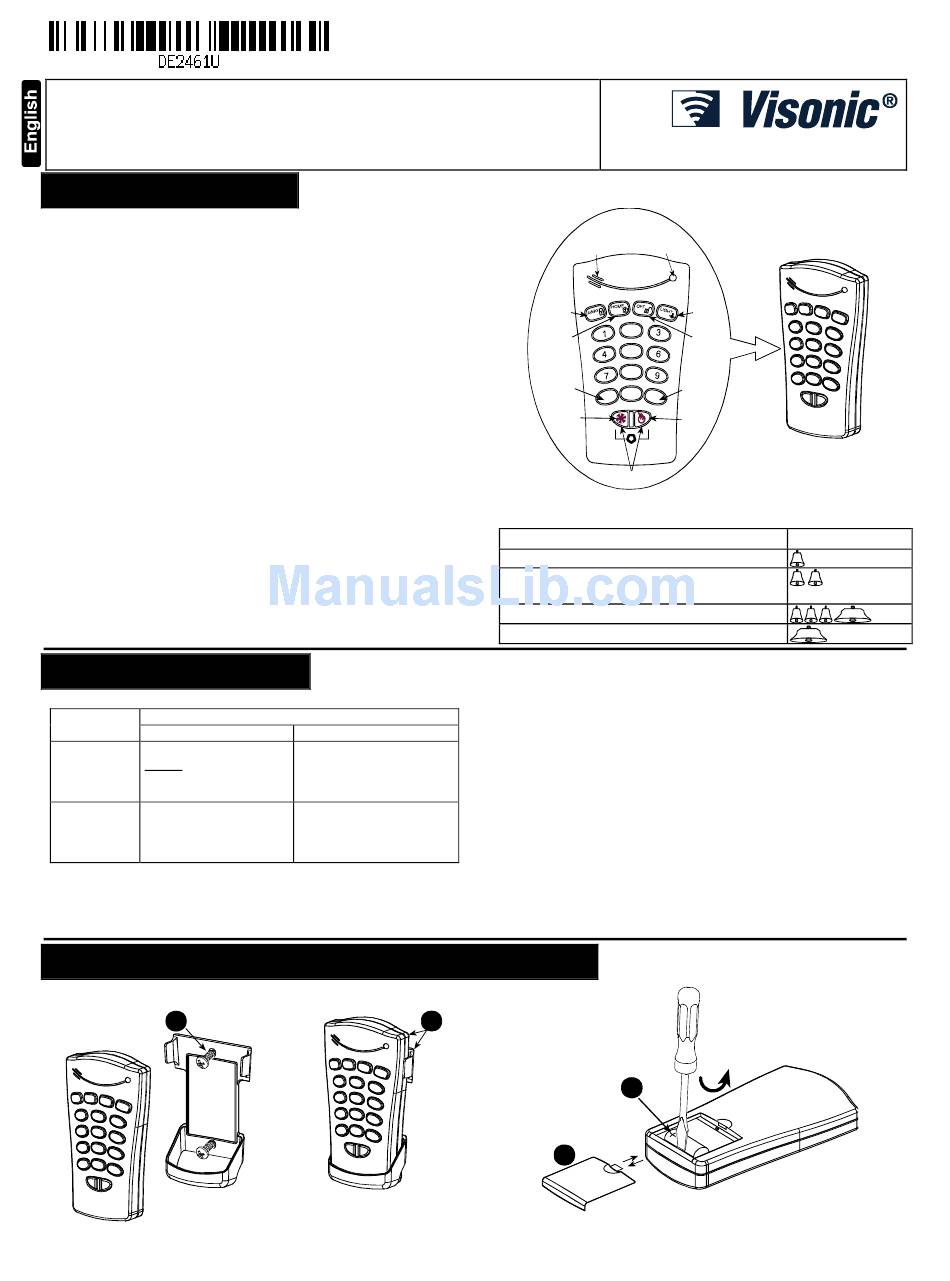

Figure 1 - External View
Keypad Buzzer Sound
Description
Short single beep, upon pressing a key
2 short beeps, in the programming process (par.
4.3 & 4.5)
Success (victory) melody
Failure beep
Caution! Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the manufacturer's instructions.
Current Consumption: 10 µA approx. (STBY), 95mA (in transmission,
including LED and back light currents)
Battery Life Expectancy: 3 years (for typical use)
Back light illumination: Selectable on/off
Dimensions (HxWxD): 127 x 70 x 24 mm (5 x 2-3/4 x 31/32 in.)
Operating Temperatures: 0°-49°C (32°-120°F)
Weight: 105g (3.7oz)
Compliance with Standards: FCC part 15, IC:1467102181.
The term "IC" before the certification/registration number only signifies that the
Industry Canada technical specifications were met.
The MCM-140/MCM-140+ is compatible with the RTTE requirements -
Directive 1999/5/EC of the European Parliament and of the Council of 9
March 1999 and EN50131-1, EN 50131-3, EN 50131-6, Type C Grade 2
Class II. Certified by Applica T&C.
Replace battery
(verify proper
polarity) and
close cover
2
Slide out
the cover
1
Figure 3 - Battery Replacement
User's Guide
Light
Off
Prog.
mode
Fire
Symbol
1
