LEGRAND 5 553 Series Technical Data Manual

Plugs, mobile sockets,
panel mounting sockets,
surface mounting sockets,
P17 Tempra Pro IP44 and low voltage 66/67
IP44
1. GENERAL CHARACTERISTICS
- 16 to 32A IP44 AND IP66/67
- Material: PA6 RAL 7042
- IK 09
The surface mounting sockets and mobile sockets are used for current
distribution
The plugs are to be equipped with portable or mobile electrical
equipment (i.e.: lamp, air compressor, welding units, etc...)
Connected to a mobile socket, they together form an extension.
2. USE
A. Panel mounting sockets and surface mounting sockets
- For fixing using captive screws
- 5.5 screw PZ2 with mixed head (flat or Pozidriv screwdriver 5.5)
- Incline:
- 15° for panel mounting sockets
- 5 or 25° for surface mounting sockets
- Removable contact support for surface mounting sockets.
- On surface mounting sockets, 4 sealed and threaded entries for
cable gland ISO mounting.
B. Mobile plugs and sockets
- For fixing using captive screws
- 5.5 screw PZ2 with mixed head (flat or Pozidriv screwdriver 5.5)
- Quarter-turn closing of the product without fixing screw and locking
(supplied unlocked) by locking slat
- Integrated cable gland with locknut claws
- Automatic sealing with cable insertion
- Cable splicing with simple tightening of the cable gland
- Captive cable gland
- Number of openings/closures tested: 30
Technical data sheet: F01811EN/02
Catalogue number(s): 5 551 01/02/04/05/06/07/08/09/10/12/13/21/
IP66/67
2. USE (CONTINUED)
Easy and quick cabling
Automatic sealing with
cable insertion
3. RANGE/EQUIVALENCE TABLE

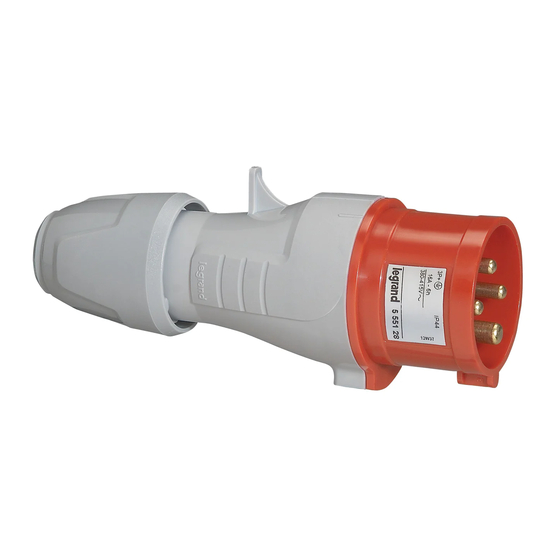

16A straight plug
100/130V
200/250V
380/415V
440/460V
480/500V
Updated: 27/11/2015
22/24/25/ 26/27/28/29/30/32/33/51/52/54/55/
56/57/58/59/60/62/63/81/84/85/86/88/89/90/
92/93 - 5 552 11/14/15/16/17/18/19/20/22/23/
31/34/35/36/37/38/39/40/42/43/51/54/55/56/
57/58/59/60/62/63/81/84/85/86/88/89/90/92/
93 - 5 553 01/04/05/06/08/09/12/21/24/25/26/
28/29/32/51/54/55/56/58/59/62/81/84/85/86/
88/89/92 - 5 554 14/15/16/18/19/21/22/31/34/
35/36/38/39/41/42/43/51/54/55/56/58/59/62/
63/81/84/85/86/88/89/91/92
CONTENTS
1. General characteristics . . . . . . . . . . . . . . . . . . .1
2. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
3. Range/Equivalence table . . . . . . . . . . . . . . . . .1
4. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Technical characteristics . . . . . . . . . . . . . . . . . .6
6. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
7. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8. Standards & regulations . . . . . . . . . . . . . . . . 10
9. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1/4 turn closing without fixing
screw and locking by metal slat
IP44
P17 Tempra P17 Tempra P17 Sherpa
Name
Pro IP 44 IP 44 IP 44
2P+E 5 551 21 0 574 21 0 574 31
3P+E 5 551 22 0 574 22
2P+E 5 551 24 0 574 24 0 574 34
3P+E 5 551 25 0 574 25
4P+E 5 551 26 0 574 26
2P+E 5 551 27 0 574 27
3P+E 5 551 28 0 574 28 0 574 38
4P+E 5 551 29 0 574 29 0 574 39
3P+E 5 551 30 6 573 07
3P+E 5 551 32 0 563 59
4P+E 5 551 33 0 563 60
Page
IP66/67
P17 Tempra P17 Tempra
Pro IP 66/67 IP 66/67
5 553 21 0 563 00
5 553 24 0 563 03
5 553 25 0 563 04
5 553 26 0 563 05
5 553 28 0 563 07
5 553 29 0 563 08
5 553 32
Created: 08/01/2014
1/10
