- Page 1 250 750 IP 30 IK 04...

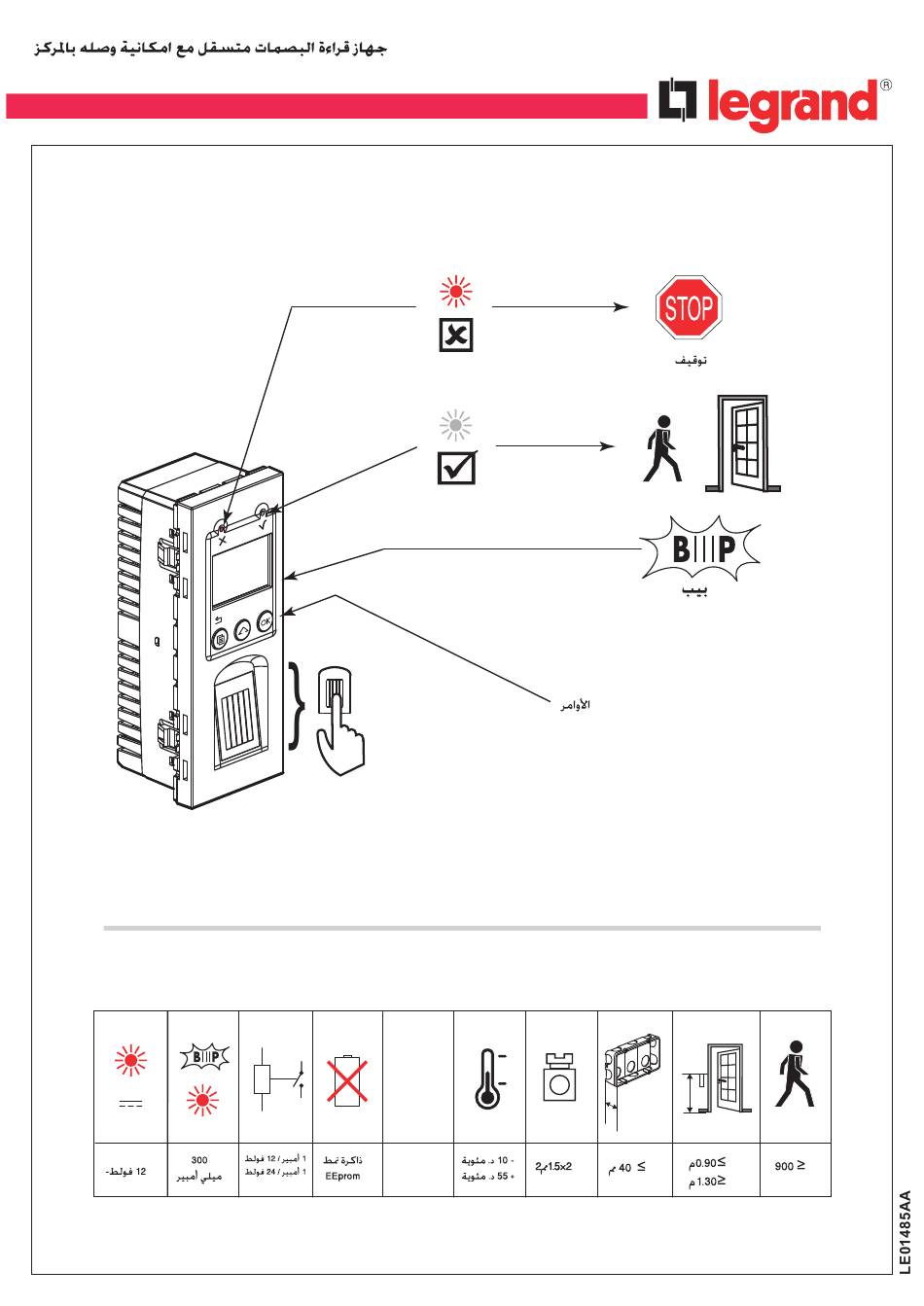

- Page 2 Centralisable standalone biometric reader 572 250 750 Controls 1 A / 12 V - 10°C > 0.90 m IP 30 12 VDC 300 mA EEprom > 40 mm < 900 1 A / 24 V IK 04 + 55°C 1.5 mm...
-
Page 3: Factory Settings
Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up the device. All Legrand products must be exclusively opened and repaired by personnel trained and approved by LEGRAND. Any unauthorised opening or repair completely cancels all liabilities and the rights to... - Page 5 0V B A T R C - +...
- Page 6 0V B A T R C - + Reset Reset Door controller Relay...
- Page 7 230 V 50/60 Hz 0V B A T R C - + (+) 12 V 1.5 mm 30 m 1.5 mm 60 m (-) 0 V 04795 / 04792 767 07 1.5 mm 60 m 1N4007 408 98...
- Page 8 0V B A T R C - + 04795 / 04792 767 07 1N4007 408 98...
- Page 10 Cancel / Back Scroll Confirm Display in normal operation : waiting for a fingerprint...
- Page 11 First startup or reinstallation Note : On the Administrator functions: - max. 5 Administrator order numbers, - preferably 2 fingers recorded (2 order numbers) for 2 Administrators Flashing Flashing Flashing Administrator General - Accessing management menus Flashing In normal use, press the two keys simultaneously...
- Page 14 Note : Main functions of this biometric reader: - Manages fingerprints of up to 5 Administrators and 999 users, - Relay open time adjustable between 1 and 255 s and switchable (switch function), - Release signal received from a pushbutton (inside the premises), - Can be configured in “Open”...
-
Page 15: Delete A User
Register a user You can choose another free number using the scrolling key ( Flashing - short press: slow scroll - long press: fast scroll Flashing Flashing Menu “User finger learning” User Caution : It’s preferable to record 2 fingers per user (e.g. in case of injury to a finger) (i.e. - Page 18 Next available order number flashes Flashing When of registration : OK : Normal use screen You can present another user finger (increment the order number) Caution : To delete all users, select “DEL” (after the last order number) by scrolling through the numbers using the scroll key ( Flashing Normal use screen...
- Page 19 Timer - Latch Adjust relay open time. Factory setting : 5 s. You can choose another relay Flashing open time (between 5 and 255 sec) by pressing the scroll key : - short press : slow scroll - long press : fast scroll Flashing Flashing Menu...
- Page 22 Flashing Example : setting the timer to 255 s You can choose another timer period (up to 255 s) Example : setting the timer to 6 s Flashing Normal use screen Next available order number flashes End of Flashing When OK : registration : You can present Normal use screen...
-
Page 23: Delete An Administrator
SEC and SEN : these functions are optimised in their factory setting and should only be changed (values 001 to 005) in the event of a problem with fingerprint identification. First contact Legrand. Factory settings: 003 for both. Flashing Confirm ALL : “free access”... - Page 26 Flashing Normal use screen Previously recorded security level, flashing Flashing Select Previously recorded sensitivity level, flashing Flashing Select Flashing Previously recorded status, flashing Flashing Select Previously recorded status, flashing Flashing Select Normal use screen...
- Page 27 Central control mode : connected to door controller Cat. No. 767 04 (see specific user instructions) Flashing Previously recorded status Flashing Confirm : Menu “Central control” Flashing Confirm : Central control menu functions : OFF : reader operating in standalone mode. Factory setting : OFF .
- Page 30 Flashing Confirm : Normal use screen...
