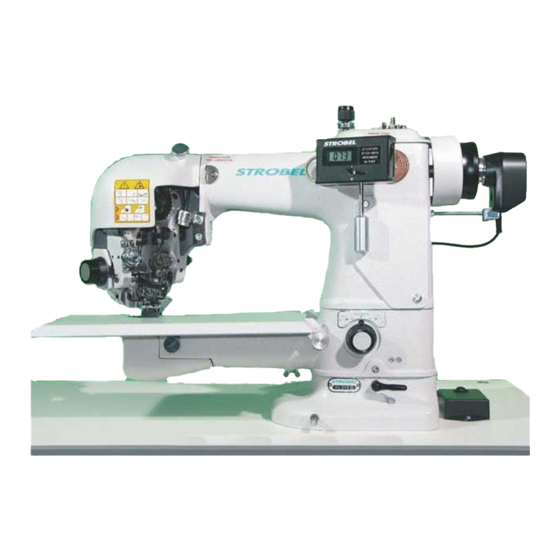

Strobel 14 Mechanic's Instructions
  1. Manuals
  2. Brands
  3. Strobel Manuals
  4. Sewing Machine
  5. 14
  6. Mechanic's instructions

Strobel 14 Mechanic's Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For the professional user
Für den professionellen Anwender
Mechanic's Instructions
Mechanikeranleitung
Class:
Klasse:
Model:
Ausführung:
Dated:
Stand:
170-22D
14
S p e z i a l m a s c h i n e n G m b H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14 and is the answer not in the manual?

Questions and answers

Related Manuals for Strobel 14

Summary of Contents for Strobel 14

  • Page 1 For the professional user Mechanic‘s Instructions Für den professionellen Anwender Mechanikeranleitung Class: 170-22D Klasse: Model: Ausführung: Dated: Stand: S p e z i a l m a s c h i n e n G m b H...
  • Page 2 The sign of quality ou find the Strobel trademark on every Strobel machine leaving our works. And with good reason. This symbol is a guarantee of the high quality of our products. Quality which creates trust – trust in our technology, our service and, not least of all, in our good name.
  • Page 3 Justify your trust. If you wish to profit from the performance and efficiency of your Strobel machine as long as possible, exact handling and thorough care is necessary. For this reason we kindly request that you read the operating instructions closely.

  • Page 5: Table Of Contents

    Mechanic’s Instructions STROBEL Class 170-22 Contents General notes on safety .................... 5 General ........................7 Operating instructions ..................7 Class identification, serial number and orientation of the machine ....7 Range of applications ..................7 Technical data ....................8 Brief setting instruction for Cl.170 ..............9 Hints for repair and settings ..................
  • Page 6 Plunger ......................21 3.7.1 Replacing the plunger shaft (Fig. 11) ..........21 3.7.2 Setting the plunger (Fig. 12) ............. 22 3.7.3 Setting the cloth support arm (Fig. 14) ..........23 3.7.4 Setting the pretension of the spring in spring-loaded plungers..23 Setting the digital stitch depth indicator (Fig.
  • Page 7 Appendix Circuit diagrams Electric mains, sewing drive - sewing machine lamp: 258.00.35 Mains connection plan cl. general (AB611A with/without sewing machine lamp gen.) Connecting the sewing machine: 258.21.63 Electrical connection plan cl. 45, 58, 103, 120, 170, VEB 259.00.37 Pneumatic circuit diagram cl. gen. with pneum. lifting 259.10.37 Pneumatic construction circuit diagram cl.
  • Page 8 MA_170-22D_A14_181015_en...

  • Page 9: General Notes On Safety

    General notes on safety Every person in charge of setting up, operating, servicing and repairing the machine must first read and understand the operating instructions and particularly the safety instructions before starting up the machine. Failure to comply with the following safety instructions can lead to bodily injury or damage to the machine.
  • Page 10 14. Warning instructions given in the operating instructions that pertain to especially dangerous parts of the machine must be indicated at these positions using a safety symbol. Warning instructions given in the operating instructions that pertain to special injury hazards for operating personnel or technicians must be indicated at these positions using a safety symbol.

  • Page 11: General

    General Operating instructions Any person involved in the installation, operation, maintenance and repair of the machine must have read and understood the operating instructions and mainly the safety instructions before starting the machine. Class identification, serial number and orientation of the machine The operating side of the machine is the basis for descriptions referring to sides.

  • Page 12: Technical Data

    Technical data Recommended rated speed: 3200 min Machine pulley diameter dw 80 mm Min. motor power 550 W V-belt profile 10 x 6 mm Toothed belt pulley/machine Z=38 Toothed belt profile HTD 5M-9 Stitch length-upper feed 5 - 8 mm (depend on fabric) Kind of stitch single thread chain stitch blind stitch...

  • Page 13: Brief Setting Instruction For Cl.170

    Brief setting instruction for Cl.170 Theoretic needle radius: 41.3 mm Left needle guide: 41.33 +0.02 mm Needle glide plate: 41.30 ±0.01 mm Right needle guide: 41.40 +0.02 mm Needle stroke, needle eye to looper finger: 1.5 +0.5 mm Ball pin to needle shaft: 4 ±0.5 mm Slot ball pin: approx.

  • Page 14: Hints For Repair And Settings

    Hints for repair and settings A t t e n t i o n , d a n g e r ! Observe safety and operating instructions before realizing any maintenance and repair works. Failure to do so may result in heavy bodily injuries. Mounting the needle plate A t t e n t i o n ! Switch off machine electrically!

  • Page 15: Setting The Needle Plate (Fig. 2)

    Fig. 1 3.1.3 Setting the needle plate (Fig. 2) The theoretic needle radius of 41.3 mm should be 0.03mm to 0.05 mm larger at the left needle guide, 0.01 mm smaller to 0.01 mm larger at the needle glide plate and 0.06 mm to 0.08 mm larger at the right needle guide. The settings should be realized with a gauge.

  • Page 16: Setting The Cloth Retainer (Fig. 3)

    3.1.5 Setting the cloth retainer (Fig. 3) After replacing the needle plate check if the cloth retainer is placed centrically to the plunger. This refers mainly to the roof-shaped cloth retainer to guarantee that the material is caught perfectly during sewing. Fig.

  • Page 17: Needle Lever

    Needle lever 3.2.1 Mounting the Needle lever (Fig. 4) A t t e n t i o n ! Switch off machine electrically! Release screw (1), swivel the thread take-up and remove the needle lever. When mounting the needle lever make sure that the needle is mounted centrically to the needle channel and that the needle point is flushed with the right hand edge of the left hand needle guide.
  • Page 18 Fig. 5 MA_170-22D_A14_181015_en...

  • Page 19: Setting The Needle Stroke (Fig. 5 And Fig. 6)

    3.2.2 Setting the needle stroke (Fig. 5 and Fig. 6) Set the needle stroke in a way that at a loop stroke of 2.8 +0.3 mm the left side of the needle eye has a distance of approx. 1.5 +0.5 mm to the right hand edge of the large looper finger, being the point of the large looper finger above needle center.

  • Page 20: Loop Stroke (Fig. 6)

    Loop stroke (Fig. 6) The loop stroke is the needle's way from its right cusp point to the point where the point of the large looper finger is placed above needle center. 3.3.1 Setting the loop stroke (Fig. 5 and Fig. 6) A t t e n t i o n ! Switch off machine electrically! At factory the loop stroke is set to 2.8 +0.3 mm.

  • Page 21: Looper

    Looper 3.4.1 Removing and remounting the looper (Fig. 5) A t t e n t i o n ! Switch off machine electrically! Release cap screw (7) and pull the looper (8) towards the front. When remounting the looper make sure that it is completely pushed in and that its positioning surface fits exactly to the looper take-up.

  • Page 22: Setting The Looper (Fig. 5, Fig. 6 And Fig. 8)

    3.4.4 Setting the looper (Fig. 5, Fig. 6 and Fig. 8) In the moment of the loop take-up the looper fingers should be placed 0.1 -0.2 mm above the needle, also when a thicker needle is used. The needle should not be touched! The horizontal distance from the large looper finger to the needle eye should be 1.5 +0.5 mm ( Fig.

  • Page 23: Feed Dog (Upper Feed)

    Feed dog (upper feed) The machine is equipped with a saw-teethed feed dog. Its movement in relation to the needle plate can be adjusted after releasing screws. Or it can be replaced by pyramid-teethed saw-teethed feed dog. 3.5.1 Setting the feed dog (Fig. 9) A t t e n t i o n ! Switch off machine electrically! Set stitch length to 8 mm.

  • Page 24: Feed Plates

    Feed plates 3.6.1 Setting the feed plates (Fig. 9 and Fig. 11) A t t e n t i o n ! Switch off machine electrically! The feed plate position is given by the symmetrical position of the angle levers to the plunger.

  • Page 25: Plunger

    Plunger A t t e n t i o n ! Switch off machine electrically! The class 170-22 is equipped with a spring-suspended, roof-shaped plunger, radius 24.5 mm. 3.7.1 Replacing the plunger shaft (Fig. 11) Remove cloth support arm extension (2). Remove cover.

  • Page 26: Setting The Plunger (Fig. 12)

    3.7.2 Setting the plunger (Fig. 12) Release the clamp screw (3) at lever (4). ( Fig. 11) Settings for blindstitch according to Fig. 12b for thick and Fig. 12c for thin fabrics. For a uniform throughstitch a stepped plunger as per Fig. 12a is needed to prevent the needle from damages.

  • Page 27: Setting The Cloth Support Arm (Fig. 14)

    3.7.3 Setting the cloth support arm (Fig. 14) Tension spring until fabric carrier arm is in contact with the stop with 16N. Measuring point is the suspension point at the ball bolt (1). Turn main screw until the needle point stand approx. 1-2 mm to the centre of the plunger.

  • Page 28: Setting The Digital Stitch Depth Indicator (Fig. 15)

    Setting the digital stitch depth indicator (Fig. 15) A t t e n t i o n ! Switch off machine electrically! Pull the mains plug! If the regulating button (1) is turned left to the stop, the toothed wheel (2) must be screwed onto the screw of the helipot in such a way, that a value of between 003 and 006 is shown on the digital display.

  • Page 29: Thread Trimmer (Fig. 16)

    Thread trimmer (Fig. 16) The blade of the thread trimmer is activated by a rotary magnet, to which an electric release control system (microswitch) is connected. This prevents the machine from starting when the blade is no longer in its inital position. Thus the release control system prevents a possible collision between blade and looper.
  • Page 30 Fig. 16 MA_170-22D_A14_181015_en...

  • Page 31: Adjustment (Fig. 16 And Fig. 17)

    3.9.2 Adjustment ( and Fig. 17) Fig. 16 The thread trimmer drive must be inserted as far as it will go into the needle plate clamp. Swivel the drive backwards so that there is a gap of about 1 mm between the drive and the sewing head.

  • Page 32: Replacing The Knife (Fig. 16 And Fig. 17)

    The machine should be positioned in such a way as the pedal is stepped back that the distance between looper and blade in cutting position is approx. 1 mm. For Strobel and EFKA controls, this corresponds to parameter 171, position P2E.

  • Page 33: Pneumatic Lifting

    3.10 Pneumatic lifting A t t e n t i o n ! Danger of finger bruises in the area of pneumatically operated parts. The clearance of class 170 can be carried out manually with the pedal or pneumatically. The suspension points in the fabric carrier arm are different. When using an end-stop tack, generally a pneumatic clearance must be used.
  • Page 34 258.00.35 Netz-Anschlussplan Kl. allg. (AB611A mit/ohne Nähleuchte allg.) Mains connection plan cl. gen. (AB611A with/without sewing light gen.) Kabelbefestigung mit Kabelbinder cable mounting with cable strap Nähleuchte (allg.) 3x 293.0290 sewing light (gen.) Kabelzugentlastung cable strain relief 193.0992 Netzanschluss Rechtes Gehäuseteil power connection right casing gn-ge / gn-ye...
  • Page 35 LÜ ( MV1 ) 6,5A +24V(1) +24V(1) Control box Efka drive (1) Nominal voltage 24V, idle voltage max. 30V Designation Designation Colour code 37 pin Strobel operating manual Efka operating manual connection cable Sub-D Thread trimmer (FA) Output 1 (M1) yellow brown...
  • Page 36 259.00.37 Pneumatischer Schaltplan Kl. allg. mit pneum. Lüftung (Efka-DC1200/DC1210) Pneumatic circuit diagram cl. gen. with pneum. lifting (Efka DC1200/DC1210) 1V10 0 Z 1 10bar max 6bar 195.0513 0 Z 1 Wartungseinheit Service unit 1 V 1 3/2-Magnetventil "Lüftung" 3/2-solenoid-way valve "lifting" 1 V 10 Drosselrückschlagventil "Lüftung"...
  • Page 37 259.10.37 Pneumatischer Bauschaltplan Kl. allg. mit pneum. Lüftung (Efka-DC1200/DC1210) Pneumatic construction circuit diagram cl. gen. with pneum. lifting (Efka-DC1200/DC1210) Wartungseinheit service unit 293.0975 (293.0841) (293.0850) Magnetventil solenoid valve 293.0469 193.0658 193.0530 298.0179 297.0170 293.0852 1 V 1 P (R) 293.0850 193.0473 450 lg 298.0077 293.0470...
  • Page 38 258.21.24 Elektrischer Anschlussplan Kl. 170, 560, ZM Digitalanzeige Electric connection diagram cl. 170, 560, ZM Digital display Steck-Adapter EA 9044 ws / wh socket adapter EA 9044 gn / gn br / bn 137kΩ 9 10 Widerstand resistor 5kΩ lin. Drehpotentiometer rotary potentiometer Kippschalter...
  • Page 39 258.21.47 Elektrischer Anschlussplan Kl. allg. Fadenabschneider Electric connection diagram cl. gen. Thread trimmer Fadenabschneider Thread trimmer Spule Kontakt (NC) (NO) Drehmagnet Laufsperre Spool Contact solenoid run inhibition Spannung/Voltage: + 24 VDC (FA in Ruhestellung = Strom/electricity: Kontakt geschlossen) (FA at rest = contact closed) Benennung/Description Kontakt Laufsperre...
  • Page 41 Und wir können noch mehr für Sie tun! Unser Lieferprogramm bietet für jede Branche und jegliche Anforderung genau die richtige Problemlösung. And we can do a lot more for you! Our range offers the correct problem solution for every branch and for all requirements. Für die Bekleidungs- Für die Schuh- Für die Polster-...
  • Page 42 Then phone, write or simply come and see us. You can have further information about our products at any time, or experience the Strobel machines live in our show room. We’re looking forward to meeting you! Spe zi a l ma s c hine n G m bH...
