Martin Audio WAVEFRONT COMPACT - APPLICATIONS GUIDE Application Manual page 226

< >
CONTENTS
A2.3.2
Cable run vs copper core cross sectional area
Up to 50m
Up to 100m
Q. Why the odd sizes?
A. Loudspeaker cables are available in a limited range of standard copper core sizes -
ie. 1.5mm², 2.5mm², 4mm², 6mm², 10mm² and 35mm².
A2.4 System patching
Refer to
Bass sub-mix operation
Many mix operators prefer to create a separate sub-mix for bass/mid-bass sections.
This is good practice as it helps provide main system headroom for those all-
important vocals and solos whilst allowing for larger-than-life percussion and bass
instrument mixes without intermodulation and distortion.

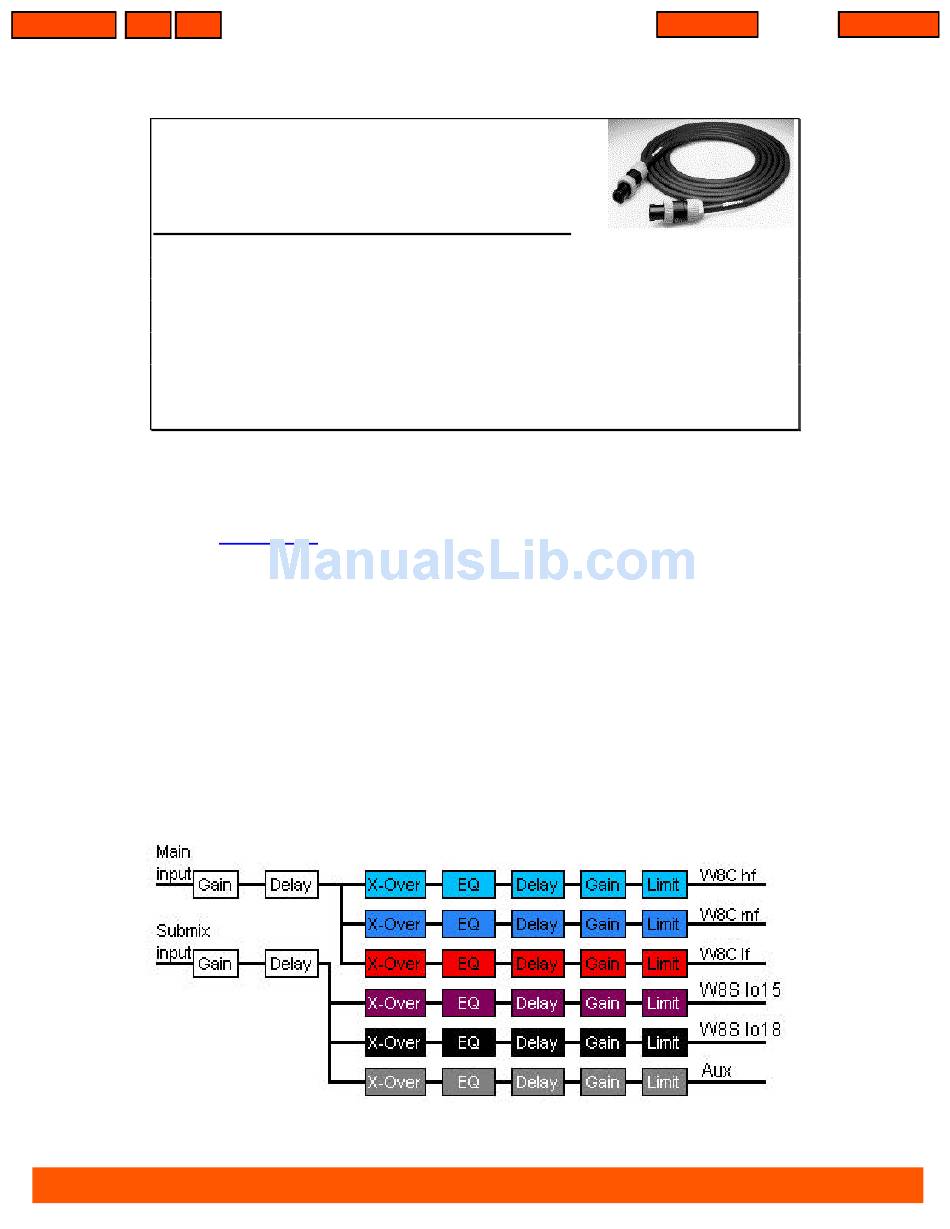

This configuration can easily be programmed into the Martin Audio DX1
Loudspeaker Management System. The following illustrates a DX1 set up to control
an active (3-way) Wavefront W8 system with a separate W8S sub-mix.
MARTIN AUDIO - APPLICATIONS GUIDE, WAVEFRONT COMPACT SERIES
Recommended loudspeaker cable
Single W8S
2.5mm²
6mm²
Section A1.4 for general Wavefront patching suggestions and examples.
All material © 2007. Martin Audio Ltd. Subject to change without notice.
ENGLISH ONLY
Two W8S' paralleled at the
cluster.
6mm² (or 2 x 2.5mm² cores in parallel)
10mm² (or 2 x 6mm² cores in parallel)
