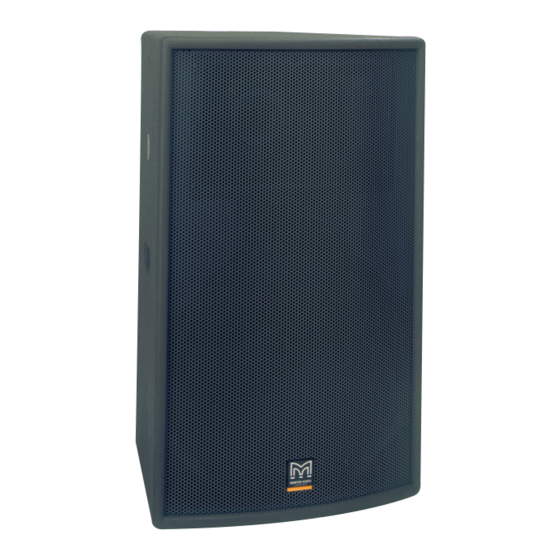

Martin Audio Compact Three-way Trapezoid System WW33PP Technical Specifications

W W 3 3 P P
Compact three-way trapezoid system
features
Q
Arrayable compact trapezoid enclosure
Q
Three-way passive system
Q
Very high SPL output capability
Q
65º coverage angle from compound mid/high horn
Q
Multi-laminate birch plywood construction
Q
Certified MAN quick-connect flying option
applications
Q
Theatre sound systems
Q
Club sound reinforcement
Q
Underslung/infill for concert sound reinforcement
Q
Music playback in nightclubs
Q
On-stage instrument monitor
Extremely versatile, the Wavefront W3P is a unique, innovative full-range system, utilising advanced Martin
Audio engineering to achieve true three-way full frequency performance from an enclosure only 28" high. It
delivers the clarity required for speech and music applications as well as the power, warmth and depth to
generate an exciting live sound or playback experience in nightclubs.
The low frequency driver is a powerful 15" (380mm) transducer cooled by a heat exchange system developed
to reduce power compression. Mid-range and high frequencies are generated by a unique mid/HF horn
featuring the same technology used in Wavefront 8 touring systems. The mid-range and high frequency horns
are designed to have matched coverage patterns to ensure that they combine perfectly both on and off-axis.
