- Page 1 P60DT-BL / P60DT-W Instruction manual...
- Page 3 Instruction manual P60DT P60DT-BL / P60DT-W...
-
Page 4: Important Safety Instructions
Pendant loudspeaker Important safety instructions Always follow these precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short- circuiting, damages; fire or other hazards. These precautions include, but are not limited to, the following: •... - Page 5 Instruction manual P60DT personnel. • Use cables of the right gauge, especially for long runs or high power systems. • Use cables with clear color indication and maintain polarity throughout the whole system. • Avoid loud feedback from microphones; this can damage your loudspeaker.
- Page 6 Pendant loudspeaker • Do not forget to consult the local law directions regarding producing sound in public places. • Please check the unit’s condition after unpacking. If the outside or the carton box has been damaged, inform your shipper immediately. •...
-
Page 7: Consignes De Sécurité Importantes
Instruction manual P60DT Consignes de sécurité importantes Respectez à tout moment les consignes énumérées ci-dessous afin d’éviter de sérieuses lésions ou même le décès suite à un choc électrique, à un court-circuit, à des dégâts, à un incendie ou à d’autres dangers. - Page 8 Pendant loudspeaker • N’ouvrez pas le haut-parleur et n’essayez pas de démonter les pièces internes ni de les modifier de quelque façon que ce soit. Au cas où le haut-parleur semble mal fonctionner (aucun son ou son altéré), si vous constatez de la fumée ou une odeur inhabituelle émanant de l’appareil, cessez immédiatement de l’utiliser et faites-le inspecter par du personnel qualifié.
- Page 9 Instruction manual P60DT de construction qui sont d’application. Dans le cas contraire, l’appareil pourrait tomber, ce qui peut causer des lésions aux personnes ou même entraîner la mort. • Utilisez uniquement des outils et méthodes de montage reconnus dans le secteur. •...

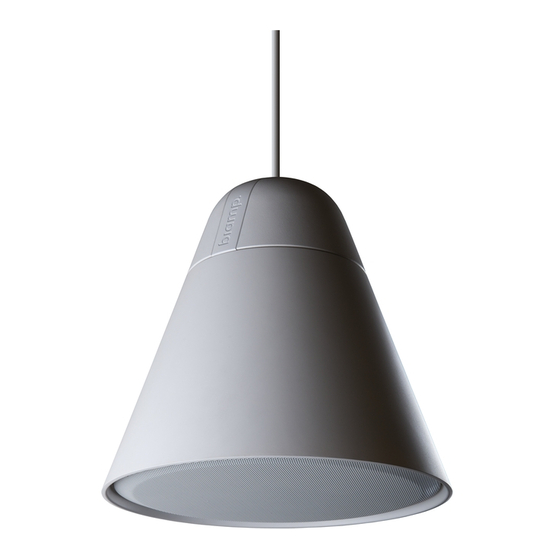

- Page 10 Available in black (P60DT-BL) or white (P60DT-W), Apart P60DT is suitable for a wide range of background and foreground sound applications.
- Page 11 Instruction manual P60DT rotary on the top of the loudspeaker and also offers 16 ohms connectivity. • Tuned bass reflex port for optimised low frequency performance • High intelligibility while remaining perfect music reproduction quality • 6.5” LF driver for, with 1” tweeter •...
-
Page 12: Supplied Items
• Important safety instructions x 1 Loudspeaker cables are not included. Installation instructions ATTENTION Apart Audio nv is not responsible for damages resulting from the negligent installation of any loudspeaker. WARNING Please make sure that the mounting structure is capable of safely supporting the loudspeaker’s... - Page 13 Instruction manual P60DT As shown, thread the snaphook cable through the opening in the locking device nearest the release button, and in the direction of the arrow shown on the unit. Loop the snaphook cable over or through a secure structure, and pass the cable back through the locking device, using the opening closest to the remaining release button.
- Page 14 Pendant loudspeaker As shown, connect the snaphook on the primary cable through the central mounting point on the loudspeaker As shown, connect the snaphook on the secondary safety cable through one of the remaining mounting points.
- Page 15 Instruction manual P60DT Adjust the length of the primary cable so that the loudspeaker hangs at the desired height (1). Adjust the length of the secondary safety cable, allowing some slack so that the loudspeaker hangs straight (2). The length of the cable can be adjusted and/or released by pressing the buttons shown.
- Page 16 Pendant loudspeaker As shown, attach the loudspeaker cables according to whether you are connecting a single loudspeaker or daisy chaining more than one. The euroblock connector should then be pressed firmly onto the corresponding male euroblock connector on the top of the loudspeaker.
- Page 17 Instruction manual P60DT As shown, select the appropriate power tap setting on the top surface of the loudspeaker WARNING Set the power tapping prior to applying audio and only change the setting while the audio amplifer is shut off. WARNING The 16 ohm setting is not compatible with 70 volt or 100 volt line amplifiers! WARNING...
- Page 18 Pendant loudspeaker Attach the end cap by placing this around the suspension and loudspeaker cables, ensuring this is held firmly in place by the magnetic fixings (1). Finally clip the cable cover in place (2).
- Page 19 Instruction manual P60DT Dimensions in mm...
-
Page 20: Specifications
Pendant loudspeaker Specifications model name P60DT-W P60DT-BL loudspeaker system 2-way with bass reflex woofer size 6.5 inch woofer cone material Coated paper tweeter size 1 inch nominal impedance 16 ohms 100V transformer 60 - 30 - 15 - 7.5 watts... - Page 21 Instruction manual P60DT max SPL at 1m 110 dB dispersion angle (1000 180° protection system self-resetting loudspeaker protection system IP rating indoor use only GrippleTM primary and secondary suspension mounting system cables baffle material ABS plastic enclosure material ABS plastic grille material steel nearest RAL color...
- Page 22 Pendant loudspeaker Notes...
- Page 24 Apart Audio nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart Audio specifications are subject to change without notice.
