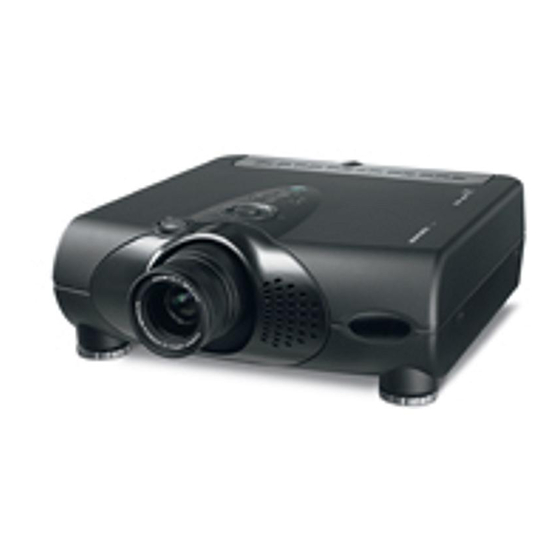

Marantz VP-11S2 Specification

Rs-232c control specification
Hide thumbs Also See for VP-11S2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
RS-232C Control Specification
Category
Document Version
Author(s)
Date
Number of Page
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright.
All specifications might be subject to change without notice.
VP-11S2
:
Projector
:
1.00
:
Marantz America, Inc.
:
2007/10/12
:
12
Marantz America, Inc. 2007
VP-11S2 RS-232C Control
Specification : Rev.1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-11S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz VP-11S2

Summary of Contents for Marantz VP-11S2

  • Page 1 VP-11S2 RS-232C Control Specification : Rev.1.00 VP-11S2 RS-232C Control Specification Category Projector Document Version 1.00 Author(s) Marantz America, Inc. Date 2007/10/12 Number of Page Marantz America, Inc. 2007 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright.

  • Page 2: Table Of Contents

    VP-11S2 RS-232C Control Specification Page: 2 / 12 Document Version [1.00] Table of Contents Global Description ..............................3 1-1. Overview................................3 1-2. Block Diagram..............................3 1-3. Interface connection specification of the product................... 3 1-4. Assumptions and Dependencies........................3 Detailed Description.............................. 4 2-1.

  • Page 3: Global Description

    VP-11S2 RS-232C Control Specification Page: 3 / 12 Document Version [1.00] 1. Global Description 1-1. Overview A Host controller can control or watch out the product as a Slave very easily via the communication cable. 1-2. Block Diagram HOST SLAVE...

  • Page 4: Detailed Description

    VP-11S2 RS-232C Control Specification Page: 4 / 12 Document Version [1.00] 2. Detailed Description The interface specification between the product and a Host controller is described below. 2-1. Connection format 2-1-1. Physical connection Host (Controller) Slave (the product) (Serial setting <RS232C basic>)

  • Page 5: Transmission Data Format

    VP-11S2 RS-232C Control Specification Page: 5 / 12 Document Version [1.00] 2-2. Transmission data format 2-2-1. Transmission data format from Host to Slave There are two kinds of transmission data form from Host shown below. 2-2-1-1. Form1: Command Command is a data that requests some status change.

  • Page 6: The Transaction Sequences And The Regulations

    VP-11S2 RS-232C Control Specification Page: 6 / 12 Document Version [1.00] 2-3. The transaction sequences and the regulations 2-3-1. The transaction sequences The transactions have three kinds of sequence. *A transaction is a Command from Host then Slave will be an answer by Status answer, ACK or NAK.

  • Page 7: Examples Of The Handshaking Flowchart

    VP-11S2 RS-232C Control Specification Page: 7 / 12 Document Version [1.00] 2-3-5. Examples of the handshaking flowchart 2-3-5-1. Example of successful handshaking H O S T S L A V E C o m m a n d C o m m a n d...

  • Page 8: Recommendations Of Command, Status And Layer Definition

    VP-11S2 RS-232C Control Specification Page: 8 / 12 Document Version [1.00] 3. Recommendations of Command, Status and Layer definition ‘ACK’ means that a slave has received an command. If a slave can receive a command properly, the slave sends a Host a Status data.
  • Page 9 VP-11S2 RS-232C Control Specification Page: 9 / 12 Document Version [1.00] Function Command Reply from Slave Installation Installation Front @FFLOR FFLOR Installation Rear @RFLOR RFLOR Installation Front Ceiling @FCEIL FCEIL Installation Rear Ceiling @RCEIL RCEIL Iris Iris 1 @IRIS1 IRIS1...

  • Page 10: Status Request And Status (Answer And Feedback) Commands

    VP-11S2 RS-232C Control Specification Page: 10 / 12 Document Version [1.00] 4-2. Status Request and Status (answer and feedback) Commands Request Status Request Command Answer Answer Command Aspect ASP? Full @FULL Normal @NML Zoom @ZOOM V-Stretch @VSTR Through @THRU Auto Standby...
  • Page 11 VP-11S2 RS-232C Control Specification Page: 11 / 12 Document Version [1.00] Request Status Request Command Answer Answer Command Projector Status POW? Standby @STBY Starting Up @WAIT Lamp On @PWON Cooling @COOL Error @ERROR Picture Mode MEM? Theater Default @THED Teater 1...

  • Page 12: Revision History

    VP-11S2 RS-232C Control Specification Page: 12 / 12 Document Version [1.00] Revision history Rev. Date Owner Change description 1.00 10/12/07 Marantz America, Inc. Issued Revision1.0 Company Restricted...
