RS-232C Control Specification
Category
Document Version
Author(s)
Date
Number of Page
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright.
All specifications might be subject to change without notice.

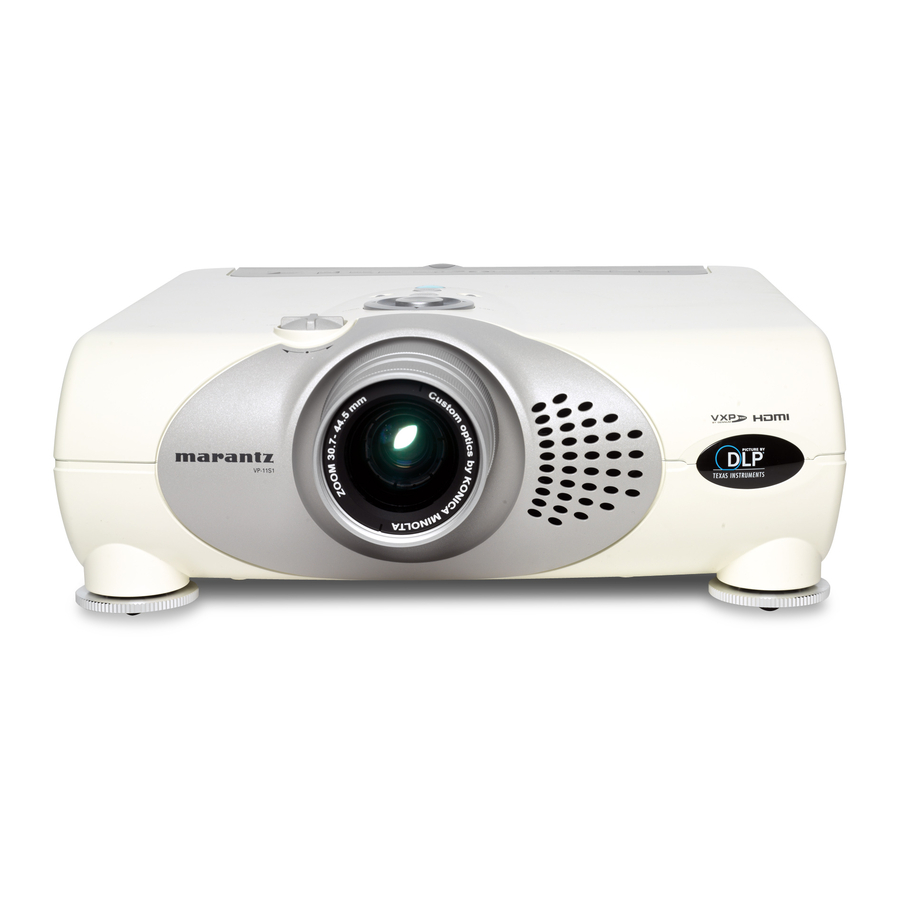

VP-11S1
:
Projector
:
1.0
:
Marantz America, Inc.
:
2006/08/10
:
8
Marantz America, Inc. 2006
VP-11S1 RS-232C Control
Specification : Rev.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-11S1 and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz VP-11S1

Summary of Contents for Marantz VP-11S1

  • Page 1 Document Version Author(s) Date Number of Page Marantz America, Inc. 2006 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright. All specifications might be subject to change without notice. VP-11S1 Projector Marantz America, Inc.

  • Page 2: Table Of Contents

    VP-11S1 Global Description ... 3 1-1. Overview... 3 1-2. Block Diagram... 3 1-3. Interface connection specification of the product... 3 1-4. Assumptions and Dependencies... 3 Detailed Description... 4 2-1. Connection format ... 4 2-1-1. Physical connection... 4 2-1-1-1. Data transmission sequence from Host to Slave ... 4 2-1-1-2.

  • Page 3: Global Description

    VP-11S1 1. Global Description 1-1. Overview A Host controller can control or watch out the product as a Slave very easily via the communication cable. 1-2. Block Diagram HOST (Controller) * The connector on the product is D-SUB 9pin male type.

  • Page 4: Detailed Description

    VP-11S1 2. Detailed Description The interface specification between the product and a Host controller is described below. 2-1. Connection format 2-1-1. Physical connection Host (Controller) 2-1-1-1. Data transmission sequence from Host to Slave Host (Controller) 1. Host starts a data transmission from TxD.

  • Page 5: Transmission Data Format

    VP-11S1 2-2. Transmission data format 2-2-1. Transmission data format from Host to Slave There are two kinds of transmission data form from Host shown below. 2-2-1-1. Form1: Command Command is a data that requests some status change. Start character COMMAND...

  • Page 6: The Transaction Sequences And The Regulations

    VP-11S1 2-3. The transaction sequences and the regulations 2-3-1. The transaction sequences The transactions have three kinds of sequence. *A transaction is a Command from Host then Slave will be an answer by Status answer, ACK or NAK. *A transaction is a Status request from Host then Slave will be an answer by Status answer or NAK.

  • Page 7: Examples Of The Handshaking Flowchart

    VP-11S1 2-3-5. Examples of the handshaking flowchart 2-3-5-1. Example of successful handshaking C o m m a n d S ta tu s r e q u e s t The product can reply ACK instead of related status, if the product can not send the related status immediatly.

  • Page 8: Recommendations Of Command, Status And Layer Definition

    VP-11S1 3. Recommendations of Command, Status and Layer definition ‘ACK’ means that a slave has received an command. If a slave can receive a command properly, the slave sends a Host a Status data. 4. Definitions of Command, Status and Layer This section discribes the definition of “Command”, “Status Request”...
  • Page 9 VP-11S1 Function Iris F3.0 F6.0 Keystone Keystone V + Keystone V - Lamp Mode Lamp Mode High (Normal) Lamp Mode Low (Economy) Menu Menu Off Menu On Picture Mode Theater Default Theater 1 Theater 2 Theater 3 Standard Default Standard 1...

  • Page 10: Status Request And Status (Answer And Feedback) Commands

    VP-11S1 4-2. Status Request and Status (answer and feedback) Commands Request Status Request Command Aspect ASP? Auto Standby APO? Black Level BLVL? Blanking Mode BLNK? Cinema CINEMA? Focus Pattern PAT? Information INFO? Input Select SRC? Installation Mode INST? Iris IRIS?
  • Page 11 VP-11S1 Request Status Request Command Projector Status POW? Picture Mode MEM? RGB Sync. RGBS? V-Mute MUT? Lamp life* LAMPLIFE? Total Time* TIME? Error Mode* ERR? Command List* RS-232C Control Specification Answer Standby Starting Up Lamp On Cooling Error Theater Default...

  • Page 12: Revision History

    VP-11S1 Revision history Rev. Date Owner 1.0 08/10/06 Marantz America, Inc. RS-232C Control Specification Change description Issued Revision1.0 Company Restricted Page: 12 / 12 Document Version [1.0]...
