4
Attach the projector support to the hanger
I
(Part K)
I
Insert the installed projector support into the hanger
Use fixing screws to attach the Screw with spring washer (Part K) to the Ceiling
mount bracket (Part N).
I
(Part K)
(Part N )
(Part N)
N

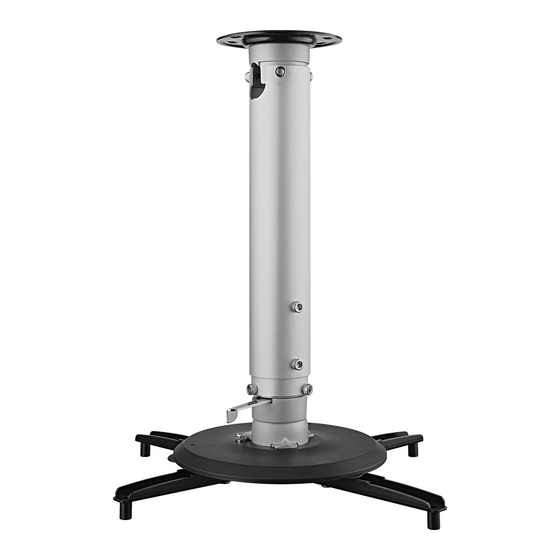

Ceiling Mounted Projector Hanger Installation Manual
K
78P30250201A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BenQ Ceiling Mount-CM00G2
Summary of Contents for BenQ Ceiling Mount-CM00G2
- Page 1 Attach the projector support to the hanger Ceiling Mounted Projector Hanger Installation Manual (Part K) (Part N) Insert the installed projector support into the hanger Use fixing screws to attach the Screw with spring washer (Part K) to the Ceiling mount bracket (Part N).
- Page 2 Caution Caution To ensure safety, please read this manual carefully before installation and follow the instructions herein. Store this manual in a secure place for future reference. Avoid any places with high temperature or humidity or subject to contact with water. Do not install the product near the vents of air conditioners and avoid places where it is dusty and fumy.
- Page 3 Caution Ceiling Mounted Projector Hanger Do not modify any accessory or use broken parts. Contact the local distributors with any questions. Length 116mm, 578mm Tighten all screws (do not exert force on any screw with excess torque to avoid breaking the screw or damaging its thread). Length of Hanger: From 116mm up to 578mm.
-
Page 4: Adjusting Angle
Adjusting angle Enclosed parts and accessories For turning 360 degrees to left and right 360° Screw with fixed washer for Nylon washer for Arm --- 4 pcs projector housing --- 6 pcs projector housing --- 8 pcs Horizontal / Vertical inclination angle: Projector bracket --- 1 pcs Flat Washers --- 4 pcs Nut (M6 type) - Page 5 Select the desired suspension length Ceiling-mounted Projector hanger installation steps 116mm Fix the support frame on the projector (Part K) (Part G) When the pipe is 116mm long Fix the frame-mounted projector onto Ceiling (Part (Part A) mount bracket (Part G) with Screw with spring washer (Part K).
- Page 6 (Part K) (Part J) Install the hanger on the ceiling Fix Height adjust Inside pipe (Part J) onto the frame-mounted projector with Screw with spring washer (Part K). (Part H) (Part K) (Part J) (Part H) (Part H) (Part L) (Part F) The user can adjust the projector to the desired height, and then fix the Inner...
