BenQ Ceiling Mount-CM00G2 Installation Manual page 5

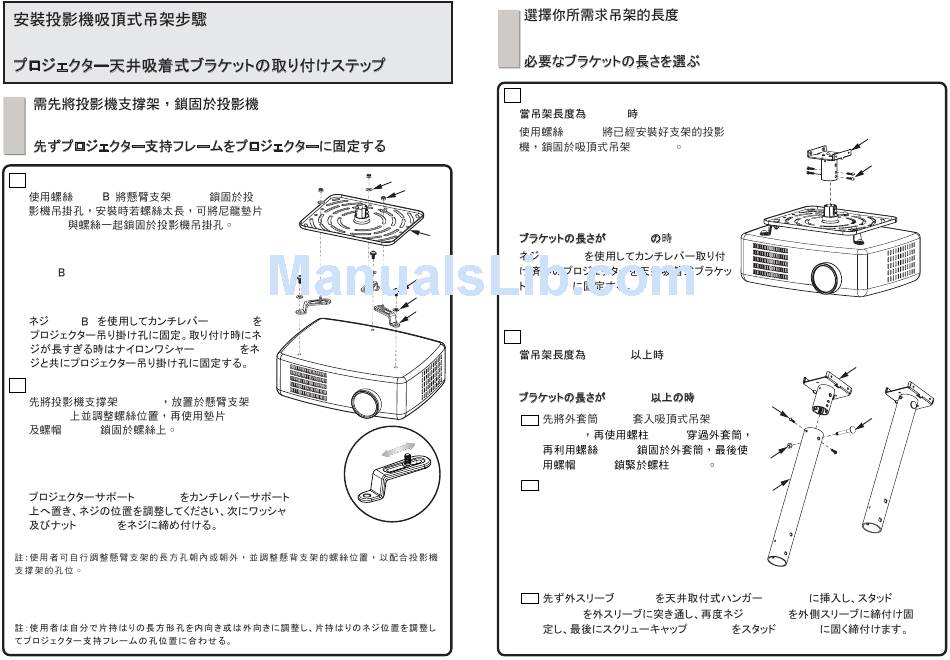

Ceiling-mounted Projector hanger installation steps
1
Fix the support frame on the projector
1
I (Part ) (Part A)
(Part C)
I Lock the Arm (Part A) in the projector hanging hole.
If the Screw with fixed washer for projector housing
(Part ) is too long, lock the Nylon washer for
projector housing (Part C) into the hanging hole
together with the projector.
I (Part )
2
I ( Part D)
( Part A)
(Part F)
I Place Projector bracket (Part D) to Arm (Part A) and then
adjust the screws and then tighten the bolt with the Flat
Washers (Part E) and the Nut (Part F).
I (Part D)
(Part F)
Note: The user may adjust the rectangular hole on the arm holder to face inward or outward and
also adjust the bolt position on the arm holder to be in line with the position of the hole on the
projector bracke.
(Part A)
(Part C)
(Part E)
(Part A)
(Part E)
2
Select the desired suspension length
1
I
(Part K)
I
When the pipe is 116mm long
E
Fix the frame-mounted projector onto Ceiling
F
mount bracket (Part G) with Screw with spring
washer (Part K).
D
I
(Part K)
B
(Part G)
C
A
2
I
I
When the pipe is over 398mm long
I
2-1
(Part G)
Wrap the Height adjust outside pipe (Part I)
2-1
around the Ceiling mount bracket (Part G),
then pass the Carriage Bolt (Part L)
through the sleeve and use screws to
attach the Screw with spring washer
(Part K) to the sleeve. Finally tighten the
Nut (Part F) onto the Carriage Bolt (Part L).
2-1
(Part L)
116mm
(Part G)
116mm
398mm
398mm
(Part I)
(Part L)
(Part K)
(Part F) (Part L)
(Part I)
(Part K)
(Part F)
G
K
G
K
L
F
I
(Part G)
(Part L)
