  • Page 1 HS80/HS80A MX575C/MX575D GPS Compass Manual ENGLISH navico.com/commercial...
  • Page 3 The Wheelmark The HS80 / MX575C systems are produced and tested in accordance with the European Marine Equipment Directive 2010/68/EU, while the HS80A/MX575D systems are produced and tested in accordance with the Marine Equipment Directive 96/98 EC as amended by directive (EU) 2015/559.
  • Page 4 In case of any queries, refer to the our website: www.navico.com/commercial or www.simrad-yachting.com About this manual This manual is a reference guide for installing and using the HS80/HS80A/MX575C/MX575D GPS compass systems. The latest available manual version can be downloaded from our web sites.

  • Page 5: Table Of Contents

    GPS compass interface via MX510 junction Box MX512 to GPS compass interface diagram via MX512 Junction Box 1PPS output PC to GPS compass interface diagram GPS compass connection to the MX61xJB junction box. HS80/HS80A connection via the NMEA 2000 network Preface | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 6: Introduction

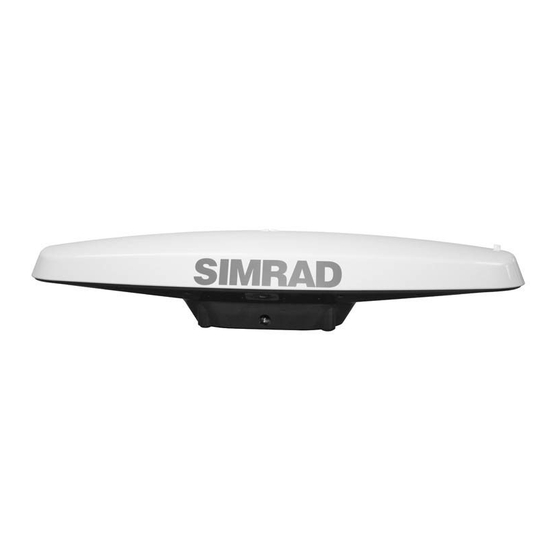

    Introduction Overview The HS80/HS80A GPS Compass and the MX575C/MX575D DGPS Compass are based upon a new generation GPS engine technology. Figure 1-1: HS80/HS80A/MX575C/MX575D side view ¼ Note: When referring to both the HS80/HS80A GPS Compass and the MX575C/MX575D DGPS Compass this manual uses the term smart GPS Compass. When referring to either product, this manual uses either HS80/HS80A or MX575C/MX575D, respectively.

  • Page 7: Parts List

    Parts list ¼ Note: The HS80/HS80A/MX575C/MX575D’s parts comply with IEC 60945 Section 4.4: “exposed to the weather.” The sections below list parts included in your HS80/HS80A kit and the MX575C/MX575D kit. HS80/HS80A Parts list Part Name Part number HS80 GPS Compass, or...

  • Page 8: Installation

    By monitoring the SNR, you can determine the optimum location with respect to beacon reception. The SNR is available in the GPS6 (Beacon Status) screen of the MX CDU. Installation | HS80/HS80A/MX575C/MX575D UserManual...
  • Page 9 1.5 m radius at top (minimum) Use these minimum distances VHF antenna to determine where to place the Smart GPS compass 1.0 m radius at base (minimum) Figure 2-1: Smart GPS compass minimum distance from nearby VHF radios Installation | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 10: Mounting Orientation

    You may need to adjust the pitch/roll output to calibrate the measurement if the Vector is not installed in a horizontal plane. Figure 2-2 and Figure 2-3 provide mounting orientation examples. Forward motion Recessed arrow located on the bottom of the enclosure Figure 2-2: Recommended orientation and resulting signs of HPR values Installation | HS80/HS80A/MX575C/MX575D UserManual...

  • Page 11: Mounting Options

    Hand tighten until snug (do not over tighten). The set screws on the long sides of the base (see middle drawing in Figure 2-6) allow you to secure the Smart GPS compass in place (3/16” Allen wrench not included). Installation | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 12 Smart GPS compass dimensions Figure 2-6 illustrates the physical dimensions of the Smart GPS compass. Figure 2-6: HS80/HS80A/MX575C/MX575D Smart GPS compass dimensions 10 | Installation | HS80/HS80A/MX575C/MX575D UserManual...
  • Page 13 This section describes how to flush mount or pole mount the Smart GPS compass. Keep the following in mind when planning your installation: • SIMRAD does not supply mounting surface hardware or a mounting pole. You must supply the appropriate hardware or mounting pole required to complete Smart GPS compass installation.
  • Page 14 Use the set screws on the long sides of the base (see Figure 2-6 on page 10) to secure the Smart GPS compass in place (3/16” Allen wrench not included). 12 | Installation | HS80/HS80A/MX575C/MX575D UserManual...
  • Page 15 Cable connector keyway Connector key Attach the power/data cable to the cable clamp. Fasten the clamp to the bottom of the Smart GPS compass using the screw and washer. Attach the cable cover. | 13 Installation | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 16 “click” when it has locked. Cable ring Cable connector keyway Connector key Fasten the adapter to the body of the Smart GPS compass using the provided screws and the two slots in the adapter. Attach the cable cover. 14 | Installation | HS80/HS80A/MX575C/MX575D UserManual...

  • Page 17: Ports

    Message output rate * Message length (bytes) * bits in byte = Bits/second (1 character = 1 byte, 8 bits = 1 byte, use 10 bits/byte to account for overhead) See “Common commands and messages” on page 27 for an example of this calculation. | 15 Installation | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 18 MX575D model. Insert the 18-pin connector of the adapter into the male end of the 18-pin connector on the HS80/HS80A by aligning the keys. You can then attach the adapter to the unit using the supplied screws (machine, 8-32, ½”, PPHC, SS) and washer (washer, flat, #8, SS). The 5-pin male Micro-C connector connects to your NMEA 2000 drop cable.
  • Page 19 Magnetic. If the sensor value is Magnetic, the deviation field can be used to produce a Magnetic heading, and the variation field can be used to correct the Magnetic heading to produce a True heading. | 17 Installation | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 20 1 millimeter, a change in direction as small as 0.0057°, and with a delta time period accurate to 5 msec. 129029 GNSS Position Data 1000 Conveys a comprehensive set of Global Navigation Satellite System (GNSS) parameters, including position information. 18 | Installation | HS80/HS80A/MX575C/MX575D UserManual...

  • Page 21: Powering The Smart Gps Compass

    ¼ Note: This section refers to powering the MX575C/MX575D unit via the serial cable connection. The HS80/HS80A power is taken from the NMEA 2000 main buss. Follow the standard procedure for powering up via NMEA 2000. Before you power up the Smart GPS compass you must terminate the wires of the power cable as required.

  • Page 22: Connecting The Smart Gps Compass To External Devices

    Connecting the Smart GPS compass to external devices ¼ Note: This section refers to a serial connection. For connecting external NMEA 2000 devices, plug the serial-to-NMEA 2000 adapter into the HS80/HS80A and then attach a standard NMEA 2000 drop line cable to the adapter. ¼ Note: The NMEA (N2K) adapter is not included as standard accessory of the MX575C/MX575D model.

  • Page 23: Default Parameters

    Use the $JSAVE command to save changes you make to the Smart GPS compass’s configuration for the changes to be present in subsequent power cycles. Unit Parameter Specification Max DGPS age (correction age) 2700 seconds HS80/HS80A and MX575C/ Elevation mask 5° MX575D HS80/HS80A: SBAS Differential mode MX575C/MX575D: Beacon...

  • Page 24: Operation

    Operation GPS overview When referring to the four D/GPS compass models, namely: HS80, HS80A, MX575C and MX575D this manual uses the general term “smart GPS compass”. Specific model number will be called when describing a particular feature or operation that is unique to that model.

  • Page 25: Smart Gps Compass Overview

    RTCM corrections. SBAS tracking The HS80/HS80A can scan and track SBAS signals without the need to tune the receiver. The HS80/HS80A features two-channel tracking that provides an enhanced ability to maintain a lock on an SBAS satellite when more than one satellite is in view. This redundant tracking approach results in more consistent tracking of an SBAS signal in areas where signal blockage of a satellite is possible.
  • Page 26 The search space defined by the tilt sensor will be reduced to a horizontal ring on the sphere’s surface by reducing the search volume. 24 | Operation | HS80/MX575C/MX575D User Manual...
  • Page 27 RTK GPS heading computation. This means that if the HTAU value is increased while gyro aiding is enabled, there will be little to no lag in heading output due to vehicle maneuvers. | 25 Operation | HS80/MX575C/MX575D User Manual...
  • Page 28 When the heading is output, the relay contacts remain closed, completing the circuit as an indication that the Smart GPS compass is operational. ¼ Note: Alarm pins must be connected to an IMO type-approved device. 26 | Operation | HS80/MX575C/MX575D User Manual...

  • Page 29: Common Commands And Messages

    RS-232 interface wires of the 18-Pin antenna cable of the MX575C/MX575D (see “PC to GPS compass interface diagram” on page 54). The HS80/HS80A requires this optional cable. Message output rate * Message length (bytes) * bits in byte = Bits/second...
  • Page 30 *see last bullet in Note at end of this table GPS-derived true heading *$GPHDT 20 Hz *see last bullet in Note at end of this table $GPHEV 20 Hz Heave value (in meters) Recommended minimum specific GNSS $GPRMC 20 Hz data 28 | Operation | HS80/MX575C/MX575D User Manual...
  • Page 31 $JATT,NMEAHE,1<CR><LF> Binary messages $JBIN Message Description GPS position GPS DOPs SBAS SBAS ephemeris data Ionosphere and UTC conversion parameters Satellite ephemeris data Code and carrier phase Processor statistics Satellites and almanac GPS diagnostics | 29 Operation | HS80/MX575C/MX575D User Manual...
  • Page 32 Configure for roll or pitch GPS orientation SEARCH Force a new GPS heading search SPDTAU Set/query speed time constant (0.0 to 3600.0 sec) SUMMARY Display current Crescent Vector settings summary TILTAID Enable/disable accelerometer, pre-calibrated TILTCAL Calibrate accelerometers 30 | Operation | HS80/MX575C/MX575D User Manual...

  • Page 33: Technical Specifications

    HS80A/MX575D Serial ports 1 RS-232 (full-duplex) 2 RS-422 (1 full duplex, 1 half duplex) Baud rates HS80/HS80A: 4800, 9600, 19200, 38400, 57600, 115200 MX575C/MX575D: 4800, 9600, 19200, 38400 Correction I/O protocol RTCM SC-104 Data I/O protocol NMEA 0183, NMEA 2000...

  • Page 34: Certifications

    95% non-condensing Vibration IEC 60945 FCC Part 15, Subpart B; CISPR22; IEC 60945 (CE) Certifications Heading Device (HS80 & MX575C) IMO Resolution MSC.116(73) ISO 22090-3 Ed.1.0, 2004 incl. Corr. 1,2005 IMO Resolution A.694(17) IEC 60945 Ed.4.0, 2002 incl. Corr.1, 2008 IMO Resolution MSC.191(79)
  • Page 35 Navigation Equipment (HS80 & MX575C) IMO Resolution MSC.112(73) IEC 61108-1 Ed.2.0 2003 IMO Resolution MSC.114(73) IEC 61108-4 Ed.1.0 2004 IMO Resolution A.694(17) IEC 60945 Ed.4.0, 2002 incl. Corr.1, 2008 IMO Resolution MSC.191(79) IEC 61162-1 Ed.4.0, 2010 Heading Device (HS80A & MX575D) IMO Resolution MSC.116(73)

  • Page 36: Output Messages

    Number of Satellites in use, 00-12, may be different from the number in view Horizontal Dilution of Precision (HDOP) Antenna altitude/mean-sea-level (geoid) Units of antenna altitude, Meters 11, 12 Geoidal Height, Meters Age of Differential GPS Data Differential Reference Station ID 34 | Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 37 Units of antenna altitude, Meters 11, 12 Geoidal Height, Meters Age of Differential GPS Data Differential Reference Station ID RAIM indicator S = Safe U = Unsafe C = Caution N = None | 35 Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 38 Mode: 1 = Fix not available 2 = 2D 3 = 3D 3-14 PRN numbers of satellites used in solution (null for unused fields) PDOP HDOP VDOP Signal type 1 for L1/CA 36 | Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 39 SNR (C/No) 00-99 dB, null when not tracking 2nd and 3rd SV 9, 10, 11, 12 4th SV Signal ID: 1 = GPS L1/CA, 2 = GLONASS L1, 3 = GALILEO, 4 = RESERVE | 37 Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 40 D = Differential mode E = Estimated (DR) M = Manual input mode S = Simulator mode N = Data not valid RAIM Status: S=RAIM Safe U=RAIM Unsafe C= Caution V=Not Valid 38 | Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 41 UTC, day, month, year and local time zone $GPZDA,hhmmss,xx,xx,xxxx,xx,xx*hh<CR><LF> ¼ Notes: 2, 3, 4 Day, month & year Local zone hours, 00 to + 13 hrs Local zone in minutes, 00 to +59. | 39 Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 42 Quality number {0-25} - number of successive good 30 bit RTCM words received Beacon ID to which the receiver’s primary channel is tuned Health of the tuned beacon [0-7] $PCSI,1 status output period {0-99} 40 | Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 43: Proprietary Input Data Messages

    This message enables/disables output of the specified sentence to the NMEA port and defines the output rate. Flow: Input $PMVXG,026 – NMEA Schedule Field Description Units Format Range Equipment Port Output Block Char Default = None Example “GGA” | 41 Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 44 2 = 2 Stop Bits Default: 0 = None 1 = XON/XOFF Pacing Mode 2 = CTS/RTS Default: 0 = No Parity 1 = Even Parity Parity 2 = Odd Parity Default: 42 | Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 45 Designates manual frequency selection MSK bit rate (100 or 200 bps) Designates manual MSK bit rate selection Period of output of performance status message, 0 to 100 seconds ($CRMSS) Example: $GPMSK,305,M,,A,,,* $GPMSK,305,,A,,A,,,* | 43 Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 46 The primary beacon channel tries to tune to the closest available station, using the frequency and bit rate specified in the station database. The background channel tunes to the frequency of the closest station using an alternate bit rate. 44 | Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 47 This line indicates that GPVTG is output at a rate of 1 Hz from the other port This line indicates that the GPGSV is output at a rate of 1 Hz from the other port | 45 Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 48 This command is used to change the differential mode of the receiver. The default differential mode is Auto/Database. This command has the following structure. $JDIFF,diff<CR><LF> Where the differential mode variable, ‘diff’ , has one of the following values: $JDIFF,diff<CR><LF> 46 | Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 49 Specifying AUTODIFF instructs the receiver to use eDif mode In order for the receiver to operate in autonomous mode, the NONE NONE argument may be specified in this command. Example: $JDIFF,BEACON* $JDIFF,LBAND* $JDIFF,WAAS* | 47 Technical specifications | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 50: Troubleshooting

    Check power input voltage (6 to 36 VDC) • Check current restrictions imposed by power source (minimum available should be > 1.0 A) • No data from HS80/HS80A Check N2K connectivity using the Device List from the (N2K Network connection) CDU. •...
  • Page 51 Select a known beacon station frequency using manual mode. ¼ Note: Beacon lock is only possible if you are in areas where the land-based beacons cover. There are many areas of the world where beacon signal is not available. | 49 Troubleshooting | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 52: List Of Abbreviations

    National Marine Electronic Association PDOP Positional Dilution Of Precision RAIM Receiver Autonomous Integrity Monitoring Rate Of Turn Real Time Kinematic SBAS Satellite Based Augmentation System Speed Over Ground Transmitting Heading Device VDOP Vertical Dilution Of Precision 50 | Troubleshooting | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 53: Wiring Diagrams

    BLK (NEG) GRN (NMEA3 RX+) YEL/BLK ORG (NMEA3 RX-) BRN (NMEA3 TX+) BLK/BRN BLU (NMEA3 TX -) WHT (BEACON IN +) GRN/BLK YEL (BEACON IN -) *ORG (1 PPS+) *ORG/BLK (1 PPS-) | 51 Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 54: Gps Compass Interface Via Mx510 Junction Box

    GPS compass interface via MX510 junction Box 52 | Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 55: Mx512 To Gps Compass Interface Diagram Via Mx512 Junction Box

    MX512 to GPS compass interface diagram via MX512 Junc- tion Box | 53 Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 56: 1Pps Output

    BLK (-) dB-9 G ND Connector YEL/BLK (Port B TX-) YEL (Port B TX+ ) BLK/BRN (Port B RX-) BRN (Port B RX+ BLK/G RN (Port A TX-) G RY (G ND) 54 | Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 57: Gps Compass Connection To The Mx61Xjb Junction Box

    GPS compass connection to the MX61xJB junction box. MX575C/MX757D HS80/HS80A GPS Compass GN70/MX610/MX612 12/24V DC MX61xJB Junction Box 12/24V DC Ports 3&4 Port 1 Where: Port 2 N2K Backbone Drop line NMEA 0183 line | 55 Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 58 MX575C/MX575D GPS Compass MX61xJB PCB Terminals SIMNET TERMINATION PORT1 PORT2 12-24 VDC REMOTE PORT3 PORT4 SUPPLY Speed Log+ Speed Log - BLK/GRN NMEA 0183 CONNECTOR TERMINALS BLK/BRN YEL/BLK 56 | Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...

  • Page 59: Hs80/Hs80A Connection Via The Nmea 2000 Network

    HS80/HS80A connection via the NMEA 2000 network HS80/HS80A GPS Compass GN70/MX610/MX612 N2K Converter 12/24V DC MX61xJB Junction Box 12/24V DC Ports 3&4 Port 1 Where: Port 2 N2K Backbone Drop line NMEA 0183 line | 57 Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...
  • Page 60 58 | Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual...
