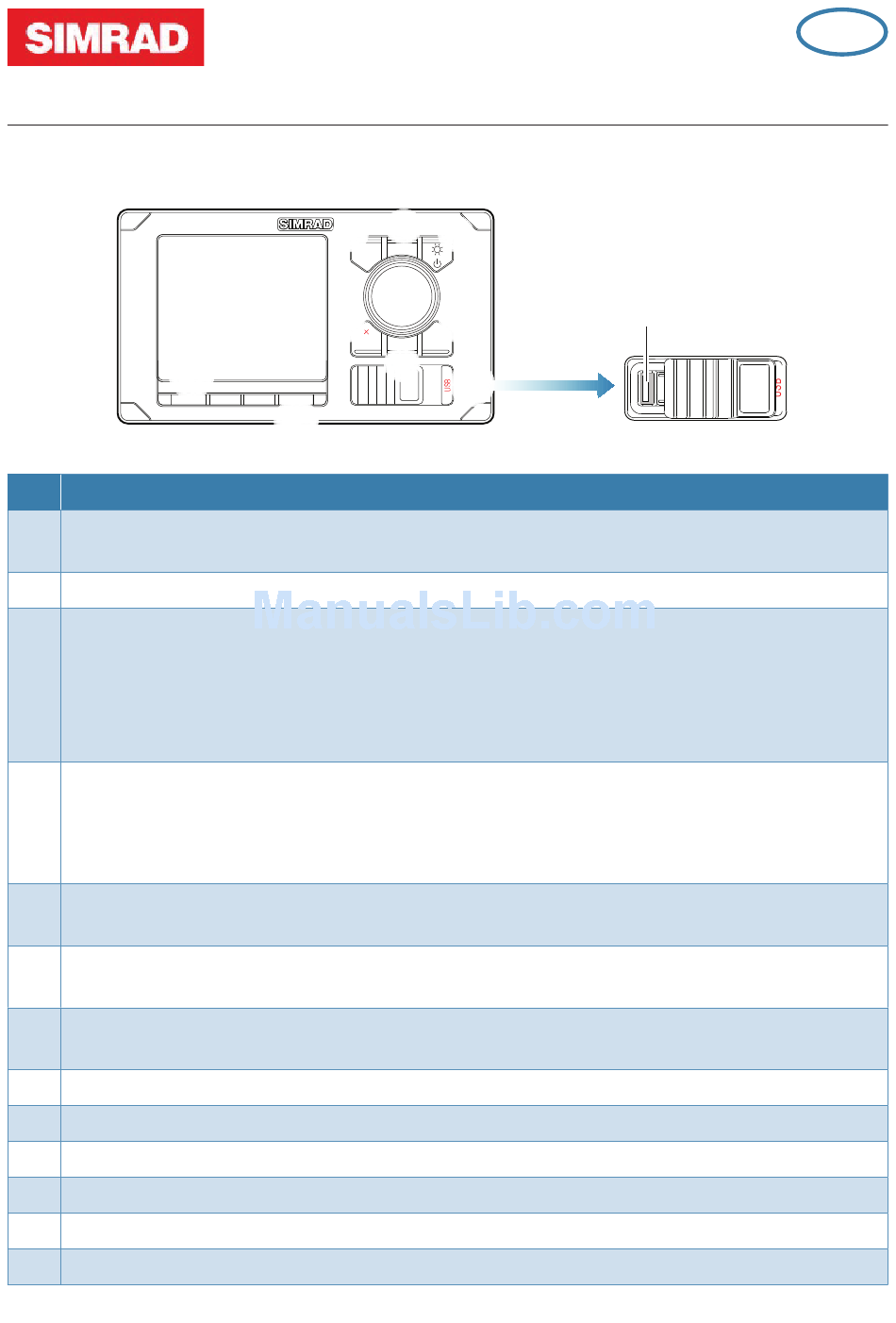

The front panel
No. Description
PAGE. Press to bring up different screen pages every time this key is pressed or to
1
change tab in the settings and tools menu.
MENU. Press to bring up the quick menu dialog box.
2
PWR/Light.
3
Short press - to turn ON the unit.
Momentary press brings up the backlight and night view controls.
Series of short presses will cycle through 6 levels of display brilliance.
Long Press - to turn power off.
Rotary knob. In menus; turn to select menu item and adjust value, press to confirm.
4
Rotate to scroll through the menu icons or numbers in the virtual keypad.
Press the center of the knob to select menu item or accept entry. Same entry action when
you press the ENT key.
CLR. In menus; press to return to previous menu level. Press to escape or back out of the
5
menu or data entry.
ENT. In menus; press to confirm menu selection/enter next menu level. The same action
6
as pressing the center of the rotary knob.
MOB. Press once to save position in a vacant waypoint, press and hold for Man-Over-
7
Board calculation.
POS. Press to display the present postion Lat/Long, SOG, COG, Time.
8
NAV. Press to display the navigation information (RNG, BRG, COG, SOG, XTE).
9
HDG. Press to display the compass rose heading.
10
AIS. Press to display the PLOT/AIS screen.
11
USB. Press to display the files contained in the USB (MX610/MX612 only).
12
13
USB connector (MX610/MX612 only).
GN70/MX610/MX612
QuickStart Guide
1
5
10
8
POS
NAV
HDG
AIS
9
11
2
3
MENU
PAGE
4
6
ESC
MOB
ENT
7
12
13
