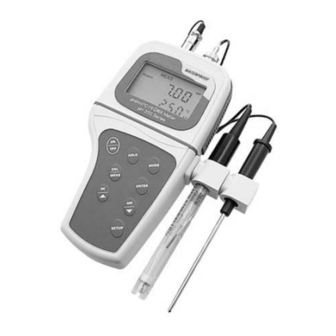

Waterproof hand-held ph / mv / temperature meter

Advertisement

Instruction Manual
pH 300/310
Waterproof Hand-held pH / mV / Temperature Meter
68X248901
Technology Made Easy ...
rev 6 08/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WATERPROOF CYBERSCAN PH 300310 PHMV METER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EUTECH INSTRUMENTS WATERPROOF CYBERSCAN PH 300310 PHMV METER

  • Page 1 Instruction Manual pH 300/310 Waterproof Hand-held pH / mV / Temperature Meter 68X248901 Technology Made Easy ... rev 6 08/04...
  • Page 2 The information presented in this manual is subject to change without notice as improvements are made, and does not represent a commitment on the part of Eutech Instruments Pte Ltd/ Oakton Instruments.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION DISPLAY AND KEYPAD FUNCTIONS Display Keypad Inserting the Batteries Connecting the Electrode and Temperature Probe Attaching the Electrode Holder to the Meter Inserting the Electrode into the Electrode Holder CALIBRATION Important Information on Meter Calibration Preparing the Meter for Calibration pH Calibration Relative mV Calibration Temperature Calibration...
  • Page 4: Introduction

    INTRODUCTION Thank you for selecting this meter. The waterproof pH 300/310 Hand-held meter is a microprocessor-based instrument that is designed to be handy and user-friendly. It is capable of measuring pH, mV and temperature. It is designed to be handy and capable of allowing one-hand operation.
  • Page 5: Display And Keypad Functions

    DISPLAY AND KEYPAD FUNCTIONS Display The LCD has a primary and secondary display. • The primary display shows the measured pH, mV or Relative mV value. • The secondary display shows the measured temperature. display also shows error messages, keypad functions program functions.
  • Page 6: Keypad

    Keypad The large membrane keypad makes the instrument easy to use. Each button, when pressed, has a corresponding graphic indicator on the LCD. See Figure 2. Some buttons have several functions depending on its mode of operation. Function Powers on and shuts off the meter. When you switch on the meter, the meter starts up in the ON/OFF mode that you last switched off from.
  • Page 7: Inserting The Batteries

    Inserting the Batteries Four AAA batteries are included with your meter. Use a Philips screwdriver to remove the two screws holding the battery cover. See Figure 3 below. Remove battery cover to expose batteries. Insert batteries. Follow the diagram inside the cover for correct polarity. Replace the battery cover into its original position using the two screws removed earlier.
  • Page 8: Connecting The Electrode And Temperature Probe

    Connecting the Electrode and Temperature Probe The waterproof pH 300/310 handheld pH meter uses any standard pH, ORP, or ISE electrode with a BNC connector. For Automatic Temperature Compensation (ATC), this meter requires a temperature probe with a special 6-pin connector. Use either: •...
  • Page 9 Figure 4 - Connection for pH Electrode (BNC) and Temperature probe (6-pin connector)
  • Page 10: Attaching The Electrode Holder To The Meter

    Attaching the Electrode Holder to the Meter The waterproof pH 300/310 handheld meter comes complete with two electrode holders. They are designed to facilitate one-hand operation. Attach two electrode holders if you have a separate electrode and temperature probe. Care must always be taken to avoid use of excessive force in the process of attaching these components.
  • Page 11: Calibration

    CALIBRATION Important Information on Meter Calibration When you re-calibrate your meter, old pH, Rel mV and mV calibration points are replaced on a point by point basis. For example, if you previously calibrated your meter at pH 4.01, 7.00, and 10.01, and you have now re-calibrated at pH 7.00, the meter retains the old calibration data at pH 4.01 and pH 10.01.
  • Page 12 pH 300 meter calibration The pH 300 meter is capable of up to 5-point pH calibration to ensure accuracy across the entire pH range of the meter. Select from the following buffer options: • USA buffers --- pH 1.68; 4.01, 7.00, 10.01, and 12.45. The meter automatically recognizes and calibrates to these standard buffer values, which makes pH calibration faster and easier.
  • Page 13: Ph Calibration

    pH Calibration NOTE: We recommend that you perform at least 2-point calibration using standard buffers that bracket (one above and one below) the expected sample range. You can perform a 1-point calibration, but make sure that the buffer value is close to the sample value you are measuring.
  • Page 14 Rinse the probe with de-ionized water or a rinse solution, and place it in the next pH buffer. Follow steps 5 and 6 for additional calibration points. See Figure 9. When all the calibration points as set in the Unit Configuration Setup (see P4.2 on page 31) are completed, the meter returns to Measurement mode automatically.
  • Page 15: Relative Mv Calibration

    Relative mV Calibration While in the measurement function, press MODE to enter the mV mode. The mV indicator appears in the upper right hand corner. See figure at right. Press the CAL/MEAS key. The CAL indicator appears above the primary display. The primary display shows the relative mV reading and the secondary display shows the absolute mV value.
  • Page 16: Temperature Calibration

    Temperature Calibration The temperature sensor is factory calibrated. Calibrate the temperature probe only if you suspect temperature errors that may have occurred over a long period of time or if you have a replacement probe. Temperature Calibration Make sure the ATC probe (or temperature connector of the electrode) is attached to the 6-pin connector.
  • Page 17: Measurement

    MEASUREMENT This meter is capable of taking measurements with automatic or manual temperature compensation. Automatic temperature compensation only occurs when a temperature sensor is plugged into the meter. If there is no temperature sensor plugged into the meter, the default manual temperature setting is automatically 25 °C.
  • Page 18: Manual Temperature Compensation

    Manual Temperature Compensation IMPORTANT: For manual compensation, you must disconnect the temperature probe (see page 6). Switch the meter on. Press the MODE key to select pH mode. Press the CAL/MEAS key to enter pH calibration mode. The CAL indicator will appear above the primary display.
  • Page 19: Taking Measurements

    Taking Measurements Be sure to remove the electrode soaker bottle or protective rubber electrode before measurement. To take readings: Rinse the probe with de-ionized or distilled water before use to remove any impurities adhering to the probe body. If the pH electrode has dehydrated, Figure 15 - Measurement mode soak it for 30 minutes in electrode storage solution or 2M –...
  • Page 20: Hold Function

    HOLD FUNCTION This feature lets you freeze the value of the pH, mV (or Relative mV) and temperature readings for a delayed observation. HOLD can be used any time when in MEAS mode. To hold a measurement, press the HOLD key while in measurement mode.
  • Page 21: Memory Function

    MEMORY FUNCTION Memory Input Your meter stores data in sets: • pH and temperature • mV (or relative mV) and temperature For pH 300 meter: The pH 300 meter can store up to 16 sets of data in any combination of values.
  • Page 22: Memory Recall

    Memory Recall This function recalls the previous readings stored in the memory. You can only access MR from the measurement mode. Memory recall is in “Last In First Out” order. To recall readings: Press the MR key once to retrieve the last reading stored.
  • Page 23 If necessary, press the MI/▲ key to select the next “memory location” screen; press the MR/▼ key to select the previous “memory location” screen. Repeat steps 2 to 5 to review additional stored data sets. To exit Memory Recall, press the MEAS key to return to the Measurement mode.
  • Page 24: Advanced Setup Functions

    ADVANCED SETUP FUNCTIONS The advanced setup mode lets you customized your meter’s preferences and defaults. This meter features different sub groups that organize all setup parameters. The sub-groups are: P1.0: Memory clear (CLr) P2.0: Viewing calibration data (CAL) P3.0: Viewing electrode data (ELE) P4.0: Unit configuration (COF) P5.0 (pH 300 only):...
  • Page 25 Figure 21 - pH 300 Advanced Setup Subgroups Figure 22 - pH 310 Advanced Setup Subgroups...
  • Page 26: Advanced Set-Up Mode Overview

    Advanced SET-UP Mode Overview Press the SETUP key to enter Set up mode. Press the MI/▲ or MR/▼ keys to scroll through sub groups. pH 300 meter set up mode P1.0: Memory clear P1.0 Clear all stored readings P2.0: Viewing previous calibration data P2.1 View first calibration point (pH 1.68) P2.2...
  • Page 27 pH 310 meter setup mode P1.0: Memory clear P1.0 Clear all stored readings P2.0: Viewing previous calibration data (USA, NIST or DIN standards) P2.1 First calibration point (plus time and date) P2.2 Second calibration point (plus time and date) P2.3 Third calibration point (plus time and date) P2.4 Fourth calibration point (plus time and date)
  • Page 28: P 1.0: Memory Clear (Clr)

    P 1.0: Memory Clear (CLr) Use this parameter to clear all memory values when you need to store a new series of values. This lets you avoid confusing the old values with the new ones. NO is the default setting. NOTE: Selecting YES will wipe out all memory.
  • Page 29: P2.0: Viewing Previous Calibration Data

    P2.0: Viewing previous calibration data This mode lets you recall previous calibration data, which helps you know when to re-calibrate your meter. This is a “view only” mode. From measurement mode: Press the SETUP key to enter Set up mode. Press the MI/▲...
  • Page 30: P3.0: Viewing Electrode Data

    P3.0: Viewing electrode data Program 3 has two “view only” options that let you check the electrode parameters for diagnostic purposes. From pH measurement mode, you can view the electrode’s offset and slope values. From mV measurement mode, you can view the electrode’s relative mV offset value.
  • Page 31 From mV measurement mode If you are in mV measurement mode, the display shows the relative mV offset. You can adjust the relative mV offset in relative mV calibration mode. See page 12 for instructions. If necessary, press the MODE key to select mV measurement mode.
  • Page 32: P4.0: Unit Configuration

    P4.0: Unit configuration This subgroup program allows you to customize the meter to your specific needs. You can program the meter to: Select READY function ON or OFF (pH 310 allows you an additional feature of switching the Auto endpoint function on or off) Select the number of pH calibration points Select between three standard calibration buffer sets (for...
  • Page 33 P4.1: READY Indicator and auto endpoint function Program P4.1 lets you select “READY indicator on” to indicate when the reading is stable*, or select “READY indicator off” for faster meter response. pH 310 meter only: Program P4.1 also lets you switch the Auto endpoint function on or off.
  • Page 34 P4.2: Selecting number of pH calibration points Program P4.2 lets you select the number of calibration points that appear in pH calibration mode: 2, 3, 4, or 5. This lets the meter scroll through the calibration points more quickly if you regularly calibrate at less than 5 points.
  • Page 35 P4.3 Calibration buffer selection sets Available in pH 310 meter only The pH 310 meter lets you select between three standard calibration buffer sets, depending on your requirements. The available sets are USA, NIST, and DIN standard calibration buffers. From measurement mode Press SETUP key to enter Set Up mode.
  • Page 36 P4.4 Selecting °C or °F Available in pH 310 meter only The pH 310 meter lets you select between °C and °F units for temperature readings. From measurement mode Press SETUP key to enter Set Up mode. Press the MI/▲ or MR/▼ keys to scroll through subgroups until you view parameter P4.0.
  • Page 37: P5.0: Resetting To Factory Default Settings

    P5.0: Resetting to factory default settings Available in pH 300 meter only In the pH 300 meter, Program 5 lets you reset all parameters to factory default settings. This clears all calibration data, memory, and any other setup functions you might have changed.
  • Page 38: P5.0: Setting The Real-Time Clock

    P5.0: Setting the real-time clock Available in pH 310 meter only The pH 310 meter features a real-time calendar and clock. This helps you to meet GLP (Good Laboratory Practice) standards. From measurement mode Press SETUP key to enter Set Up mode. Press the MI/▲...
  • Page 39 12. Press the MI/▲ or MR/▼ keys to toggle to the correct hour. Note the “AM” and “PM” indicator on the lower portion of the display. 13. Press the ENTER key to confirm the hour and move to “minute” selection. The “minute” digits will flash.
  • Page 40: P6.0: Resetting To Factory Default Settings

    P6.0: Resetting to factory default settings Available in pH 310 meter only In the pH 310 meter, Program 6 lets you reset all parameters to factory default settings. This clears all calibration data, memory, and any other setup functions you might have changed.
  • Page 41: Probe Care And Maintenance

    PROBE CARE AND MAINTENANCE Since your pH electrode is susceptible to dirt and contamination, clean it every one to three months depending on the extent and condition of use. NOTE: For specialty electrode care, consult the instruction manual included with your electrode. pH electrode storage For best results, always keep the pH bulb wet.
  • Page 42 Reactivating the pH electrode If stored and cleaned properly, your pH electrode should be ready for immediate use. However, a dehydrated bulb may cause sluggish response. To rehydrate the bulb, immerse the electrode in a pH 4 buffer solution for 10 to 30 minutes. If this fails, the electrode requires activation. Never touch or rub glass bulb.
  • Page 43: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Problem Cause Solution Power on but no a). Batteries not in place a). Check that batteries are in place and display making good contact. b). Batteries not in correct polarity (+ b). Re-insert batteries with correct and – position). polarity.
  • Page 44: Error Messages

    10 ERROR MESSAGES LCD Display Indicates Cause Solution Err annunciator Unrecognized input from Wrong input in selected Release key. Select valid keypad mode. operations depending on mode. CAL & Err Calibration error. Wrong value input at Check your input value, clean annunciators on / calibration.
  • Page 45: Specifications

    11 SPECIFICATIONS SPECIFICATIONS DESCRIPTIONS pH 300 pH 310 pH Range -2.00 to 16.00 pH Resolution / Accuracy 0.01 pH / ± 0.01 pH Slope Range 80 to 110% Temperature Range -10 to 110 °C (14 to 230 °F) Resolution / Accuracy 0.1 °C / ±...
  • Page 46: Accessories

    12 ACCESSORIES Replacement Meter and Meter accessories Item Eutech Instruments Oakton Instruments Order Code Order Code Waterproof pH 300 Hand-held pH meter in EC-PHWP300/02K 35617-70 carrying case kit. Complete with temperature probe, pH electrode (1m cable) and pH carrying kit set.
  • Page 47 Calibration Solutions Item Eutech Instruments Oakton Instruments Order Code Order Code pH 4.01 buffer solution, 480 ml bottle (1 pint) EC-BU-4BT 00654-00 pH 7.00 buffer solution, 480 ml bottle (1 pint) EC-BU-7BT 00654-04 pH 10.01 buffer solution, 480 ml bottle (1 pint)
  • Page 48 Carrying Case Kit for pH 300/310...
  • Page 49: Addendum 1: Meter Factory Default Settings

    13 ADDENDUM 1: METER FACTORY DEFAULT SETTINGS Resetting the meter to factory default settings clears all calibration data and most other setup functions you might have changed. The following settings will remain as you have set them: • Temperature unit of measure (°C or °F) – only for pH 310 meter •...
  • Page 50: Warranty

    If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return – freight pre-paid – and correction will be made without charge. Eutech Instruments/ Oakton Instruments will determine if the product problem is due to deviations or customer misuse.
  • Page 51: Return Of Items

    A restocking charge will be made on all unauthorized returns. NOTE: Eutech Instruments Pte Ltd/ Oakton Instruments reserves the right to make improvements in design, construction, and appearance of products without notice.
  • Page 52 For more information on Eutech Instruments/ Oakton Instruments’ products, contact your nearest distributor or visit our website listed below: Oakton Instruments Eutech Instruments Pte Ltd. Distributed by: P.O Box 5136, Blk 55, Ayer Rajah Crescent, Vernon Hills, IL 60061, USA...
