- Page 1 Instruction Manual pH/Ion 510 Bench pH/Ion/mV Meter 68X090811 Rev. 6 08/04 Technology Made Easy ...
- Page 3 The information presented in this manual is subject to change without notice as improvements are made, and does not represent a commitment on the part of Eutech Instruments Pte Ltd/ Oakton Instruments.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................... 1 Introducing the 510 Bench Series .......................1 Custom LCD ..............................1 Keypad.................................2 Rear Instrument Panel..........................3 STARTING UP ..........................4 Connecting the Sensor Electrode........................4 Connecting the Temperature Probe ......................4 Connecting the A/C Adapter........................4 Connecting the Chart Recorder........................4 Connecting the Electrode Holder (Optional) ....................5 Steps Prior to Calibration..........................6 CALIBRATION .......................... -
Page 5: Introduction

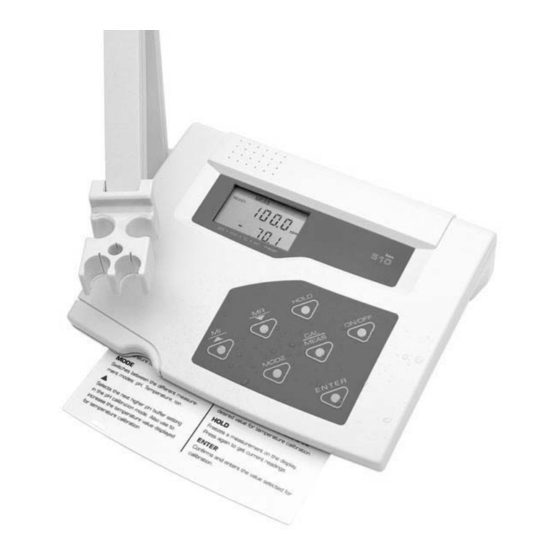

Instruction Manual pH 510/ Ion 510 1 INTRODUCTION Introducing the 510 Bench Series The pH 510 and Ion 510 bench meters are microprocessor-based which incorporates new ASIC (Application Specific Integrated Circuit). It is designed with convenience in mind, and offers many advanced user-friendly features. -
Page 6: Keypad
Instruction Manual pH 510/ Ion 510 Keypad A large splash proof membrane keypad with tactile feedback makes meter easy to use. Names and symbols describe the function button controls. Measurement Mode Calibration / Setup Mode ON/OFF Powers the meter ON/OFF. When the meter is switched on, it automatically starts in the last mode of operation. -
Page 7: Rear Instrument Panel
Instruction Manual pH 510/ Ion 510 Rear Instrument Panel This 510 series meter provides a complete set of connectors for the various accessories commonly used. Listed in the table are the details of the connections that you can make. Rear View of Meter Connection Function For phono jack connection from the temperature probe for Automatic Temperature... -
Page 8: Starting Up
Instruction Manual pH 510/ Ion 510 2 STARTING UP Connect the accessory connectors at the rear of the instrument panel. During operation, it is important that water does not get onto the BNC connector. Also avoid touching the connector with soiled or wet hands. Connecting the Sensor Electrode Slide the electrode connector of the electrode over the socket of the meter’s BNC connector marked ‘INPUT’. -
Page 9: Connecting The Electrode Holder (Optional)
Instruction Manual pH 510/ Ion 510 Connecting the Electrode Holder (Optional) Bottom of Meter The integral electrode holder serves as a handy holder for mounting a few pH/Ion electrodes or a temperature probe during measurement or when idle. This meter’s base plate has a side metal bar to which you can attach an integral swivel electrode holder. -
Page 10: Steps Prior To Calibration
Instruction Manual pH 510/ Ion 510 Steps Prior to Calibration 2.6.1 Switching ‘ON’ and ‘OFF’ the meter Press ON key to switch meter on. All the LCD segments will display momentarily for a few seconds and the LCD then switches to the last measurement mode. To switch meter off, press OFF key. 2.6.2 Selecting Measurement Mode The measurement modes available for the pH 510 meter are pH, mV (for ORP) and Temperature, while the Ion... - Page 11 Instruction Manual pH 510/ Ion 510 All new calibrations will override existing stored calibration data at these calibration points. It is recommended that you perform at least a 2-point calibration using buffers that bracket (one above and one below) the expected sample range, starting with pH 7 buffer first.
- Page 12 Instruction Manual pH 510/ Ion 510 Wait for the measured pH value to stabilize (when the [READY] indicator displays in the left-hand corner). NOTE 7.00 If the upper measured display is not within the buffer acceptable window (refer to Hint below) an error message and the electrode icon flash upon pressing the ENTER key.
-
Page 13: Ion Concentration Calibration (For Ion 510 Only)
Instruction Manual pH 510/ Ion 510 Ion Concentration Calibration (For Ion 510 only) The Ion 510 meter is capable of up to 3-point ion calibration (minimum 2 points) with choice of 4 options to ensure accuracy across the entire measurement range. Note that the ion measurement mode accepts input of ±... - Page 14 Instruction Manual pH 510/ Ion 510 If you are performing a 3-point calibration, rinse off the electrode HINT: Minimum of 2 with deionized water, place it in the next calibration standard and points and maximum proceed as follows. of 3 points are allowed for Ion Allow meter to stabilize in the next calibration standard.
-
Page 15: Mv Calibration
Instruction Manual pH 510/ Ion 510 mV Calibration Make sure the meter is on and if necessary, press the MODE key to select mV mode. The [mV] indicator appears in the upper right-hand corner of the display. Press the CAL/MEAS key. The [CAL] indicator appears above the upper display that displays the relative mV reading. -
Page 16: Temperature Calibration
Instruction Manual pH 510/ Ion 510 Temperature Calibration In this calibration procedure, the ATC probe is attached to the meter and the [ATC] annunciator is displayed on the right hand side of the LCD. Dip the temperature probe into a solution of known temperature, such as a temperature bath for a few minutes until the temperature probe stabilizes. -
Page 17: Measurement
Instruction Manual pH 510/ Ion 510 4 MEASUREMENT Automatic Temperature Compensation (ATC) For ATC measurements, simply attach the temperature probe into the meter (see Section 2.2). The [ATC] annunciator lights up on the LCD. NOTE If you are using a temperature probe, the probe must be submersed in the liquid you are measuring so that the sample temperature can be Manual Temperature Compensation (MTC) Important: For MTC, you must disconnect the temperature probe. -
Page 18: Taking Measurements
Instruction Manual pH 510/ Ion 510 Taking Measurements Be sure to remove any electrode soaker bottle or protective rubber cap from the electrode before measurement. To take readings: Rinse the electrode with distilled or tap water before use to remove any impurities adhering to the electrode body. -
Page 19: Hold Function
Instruction Manual pH 510/ Ion 510 HOLD Function This feature lets you freeze the value of the measured reading. HOLD can be used anytime when in [MEAS] mode. You can store the held reading into memory by pressing MI key. HOLDing a measurement To hold a measurement, press the HOLD key while in measurement mode. - Page 20 Instruction Manual pH 510/ Ion 510 Memory Recall In the measurement mode, press MR key once to retrieve the last reading stored. The memory location screen – “MEM”, “LOC” and the memory number – will flash on the display. Press the ENTER key to recall the reading stored under that memory number.
-
Page 21: Setup Functions
Instruction Manual pH 510/ Ion 510 5 SETUP FUNCTIONS The advanced SETUP mode lets you customize your meter’s preferences and defaults: P1.0: Memory Clear (Clr) P2.0: Viewing electrode data (ELE) P3.0: Selecting buffer sets (bUF) P4.0: Reset to factory default settings (rSt) To enter the SETUP mode: Turn meter OFF. -
Page 22: P2.0 Viewing Electrode Diagnosis
Instruction Manual pH 510/ Ion 510 P2.0 Viewing Electrode Diagnosis This program lets you check the electrode parameters for diagnostic purposes. Depending on the last display mode, displayed electrode information varies. Only these readings can be viewed: Last Display Mode Electrode Property Offset Slope... -
Page 23: P3.0 Selecting Ph Buffer Standard
Instruction Manual pH 510/ Ion 510 P3.0 Selecting pH Buffer Standard This program lets you select between two standard calibration buffer sets, depending upon your requirements. The available standards are USA and NIST. Enter the SETUP mode as described in this section earlier. The meter automatically goes to program P1.0. -
Page 24: Ph Electrode Maintenance
Instruction Manual pH 510/ Ion 510 6 pH ELECTRODE MAINTENANCE pH electrodes are susceptible to dirt and contamination and need to be cleaned regularly depending on the extent and condition of use. Refer to Section 6.3 for more details on cleaning pH electrode. Storage For best result, always keep the pH electrode bulb wet, preferably with the use of storage solution. -
Page 25: Electrode Cleaning
Instruction Manual pH 510/ Ion 510 Electrode Cleaning pH electrodes that are mechanically intact and not in use for a short period of time can be restored to normal performance by one or a combination of following procedures: a) Salt deposits Dissolve the salt deposits by immersing the electrode in a container filled with some tap water for ten to fifteen minutes. -
Page 26: Ph Electrode Rejuvenation
Instruction Manual pH 510/ Ion 510 pH Electrode Rejuvenation CAUTION: Proper protective eyewear and precautionary measures must be used when performing the rejuvenation procedure as it involves the use of concentrated acid and alkaline. Generally, if procedure of storage and maintenance had been closely followed, the pH electrode can be used immediately. -
Page 27: Troubleshooting Guide
Instruction Manual pH 510/ Ion 510 7 TROUBLESHOOTING GUIDE Error Messages The table provides a quick guideline for diagnosis of possible problems indicated by the messages generated by the 510 meter series. The table also provides possible solutions to problems encountered. Diagrams inserted below. -
Page 28: Troubleshooting
Instruction Manual pH 510/ Ion 510 Troubleshooting PROBLEM PROBABLE CAUSE REMEDIAL ACTION No display a) Mains power not switched on. a) Switch on the power supply. b) AC Adapter socket not inserted properly. b) Re-insert AC Adapter socket. Unstable reading a) Insufficient reference electrolyte in a) Fill electrode with reference electrolyte. -
Page 29: Additional Information
Instruction Manual pH 510/ Ion 510 8 ADDITIONAL INFORMATION pH and Temperature Automatic Temperature Compensation (ATC) compensates for temperature changes. Some solutions show an increase while others a decrease in pH with the same temperature change. Record the solution temperature along with the pH value, or the measurement may be meaningless. -
Page 30: List Of Accessories
Instruction Manual pH 510/ Ion 510 List of Accessories 8.4.1 Replacement Meter and Accessories Item Description Eutech Instruments Oakton Instruments Order Code No. Order Code No. pH 510 Bench meter complete with temperature probe and EC-PH510/01S 35619-10 integral electrode holder... - Page 31 Instruction Manual pH 510/ Ion 510 8.4.4 Ion Selective Electrodes (ISE) Ask our distributors for more details regarding ISE and its standard solutions. The table below lists the range of electrodes available. All ISE are supplied with 1m cable length and BNC connector. Ammonia (NH Iodide (I-) Ammonium (NH...
-
Page 32: Specifications
Instruction Manual pH 510/ Ion 510 Specifications Description pH 510 Ion 510 pH Range 0.00 to 14.00 pH Resolution 0.01 pH ± 0.01 pH + 1 count Accuracy Ion Concentration Range 0.01 to 1999 ppm (± 500 mV input) 0.01 pm (0.01 to 0.99 ppm); 0.1 ppm (1.0 Resolution to 199.9 ppm);... -
Page 33: Warranty
If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return – freight pre-paid – and correction will be made without charge. Eutech Instruments/ Oakton Instruments will determine if the product problem is due to deviations or customer misuse. - Page 36 For more information on Eutech Instruments/ Oakton Instruments’ products, contact your nearest distributor or visit our website listed below: Oakton Instruments Eutech Instruments Pte Ltd Distributed by: P.O Box 5136, Blk 55, Ayer Rajah Crescent, Vernon Hills, IL60061, USA #04-16/24 Singapore 139949...
