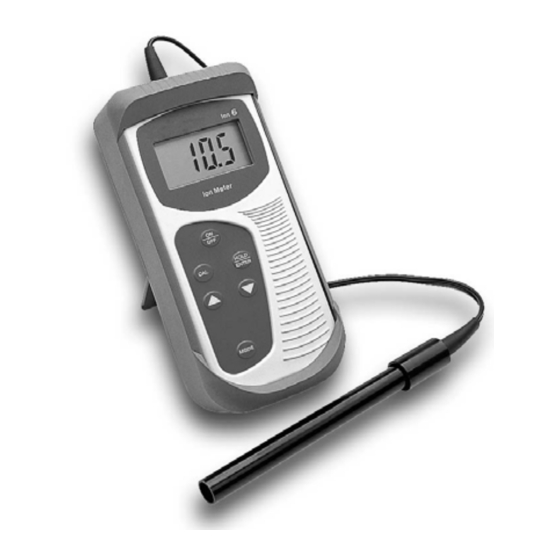

EUTECH INSTRUMENTS ECOSCAN ION 6 IONPHMV METER Instruction Manual

Ph/mv & ion/ph meter series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
pH 5/6 & Ion 5/6
pH/mV & Ion/pH Meter Series
68X243601
Technology Made Easy ...
Rev 7 04/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOSCAN ION 6 IONPHMV METER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EUTECH INSTRUMENTS ECOSCAN ION 6 IONPHMV METER

Summary of Contents for EUTECH INSTRUMENTS ECOSCAN ION 6 IONPHMV METER

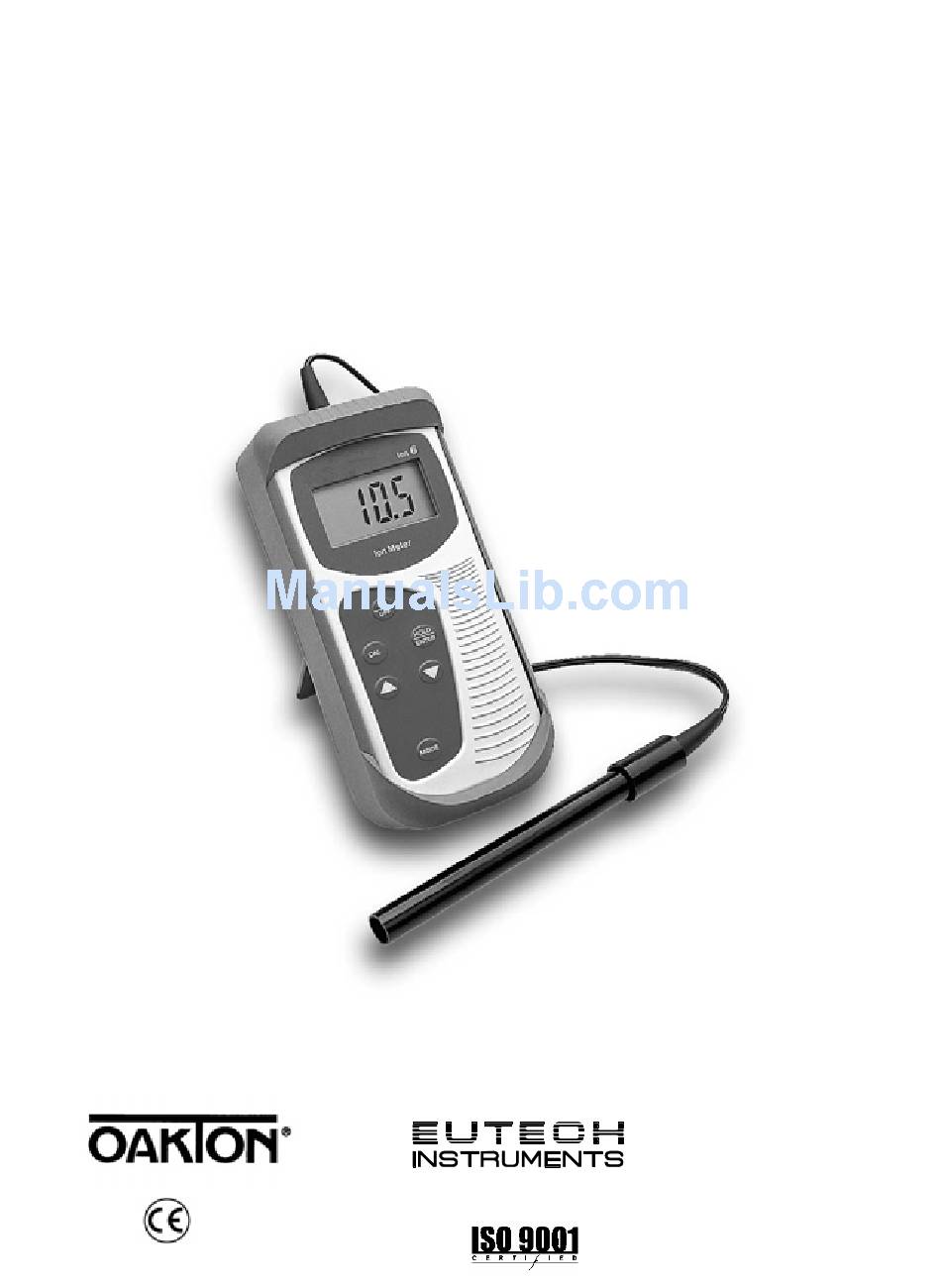

  • Page 1 Instruction Manual pH 5/6 & Ion 5/6 pH/mV & Ion/pH Meter Series 68X243601 Technology Made Easy ... Rev 7 04/04...
  • Page 2 This manual is written to cover as many anticipated applications of the pH 5/6 and Ion 5/6 meters as possible. If there are doubts in the use of this meter, please do not hesitate to contact the nearest Eutech Instruments/ Oakton Instruments Authorized Distributor.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION getting started Description of Keypad Functions Description of LCD Annunciators Inserting & Removing the Rubber Boot Inserting New Batteries Battery Replacement Connecting the Electrode and Temperature Sensor Condition the pH Electrode Switching the Meter On Calibration pH Calibration Selection of pH buffer standards 3.2.1...

  • Page 4: Introduction

    Instruction Manual pH 5/6 & Ion 5/6 1. INTRODUCTION Thank you for purchasing pH 5/6 or Ion 5/6 meter series. These microprocessor-based handheld meters are economical and easy to use. It has a large custom LCD (Liquid Crystal Display) for clear and easy reading. The pH 5 measures pH and temperature ( C) while the pH 6 measures pH, mV (ORP) and temperature.

  • Page 5: Getting Started

    Instruction Manual pH 5/6 & Ion 5/6 2. GETTING STARTED 2.1 Description of Keypad Functions pH 5/6 has four keys and Ion 6 meter has six keys on its splash-proof keypad with tactile feedback. The common keys include ON/OFF, HOLD/ENTER, CAL and MODE keys.

  • Page 6: Description Of Lcd Annunciators

    Instruction Manual pH 5/6 & Ion 5/6 2.2 Description of LCD Annunciators The meter has a large custom LCD that consists of 3½-digit segments and operation annunciators for pH, mV or C (Temperature). Note that there is no annunciator shown in Ion mode. Other annunciators include “HO” (when the HOLD function is activated) and “LO”...

  • Page 7: Inserting New Batteries

    Instruction Manual pH 5/6 & Ion 5/6 2.4 Inserting New Batteries The battery compartment is found at the back of instrument. To open the battery compartment, push in the direction of arrow and lift up the cover. Note the polarity of battery before inserting into position. After replacement, place cover back and press down until it locks tight.

  • Page 8: Condition The Ph Electrode

    Instruction Manual pH 5/6 & Ion 5/6 BNC of pH/ORP Phono jack of electrode or ISE Temperature probe Insert the mini phono jack of temperature sensor into the socket on the meter. Unplug the phono jack when not in use or you measure pH without any temperature compensation.

  • Page 9: Calibration

    Instruction Manual pH 5/6 & Ion 5/6 3. CALIBRATION 3.1 pH Calibration The meter is capable of calibrating up to 3 points using USA or NIST (nSt) pH buffer standards or 2 points with Low Ionic (Pb) pH buffer standard. All new calibration values will automatically override existing data.

  • Page 10: Selection Of Ph Buffer Standards

    Instruction Manual pH 5/6 & Ion 5/6 3.2 Selection of pH buffer standards You must set the meter to accept either USA, NIST (nSt) or Low Ionic (Pb) pH buffer standard values before calibration. The factory default is USA standard. If you wish to abort this operation press the CAL key at any sequence and the meter reverts to pH measurement mode.

  • Page 11: Ph Calibration Using Usa Standard Buffers

    Instruction Manual pH 5/6 & Ion 5/6 3.2.2 pH Calibration using USA standard buffers 1. Pour a known pH buffer standard solution into a clean, dry container, e.g. pH 7.00. Power on the meter and it automatically enters into measurement mode. Select pH mode by pressing MODE key if necessary.

  • Page 12: Ph Calibration Using Nist Standard Buffers

    Instruction Manual pH 5/6 & Ion 5/6 3.2.3 pH Calibration using NIST standard buffers Pour a known pH buffer standard solution into a clean container, e.g. pH 6.86. Power on meter, and it automatically enters into measurement mode. Select pH mode by pressing MODE key if necessary.

  • Page 13: Ph Calibration Using Pb Standard Buffers

    Instruction Manual pH 5/6 & Ion 5/6 3.2.4 pH Calibration using Pb standard buffers Pour a known pH buffer standard solution into a clean container, e.g. pH 6.97. Power on meter, and it automatically enters into measurement mode. Select pH mode by pressing MODE key if necessary.

  • Page 14: Ion Calibration (Ion 5 And 6)

    Instruction Manual pH 5/6 & Ion 5/6 3.3 Ion Calibration (Ion 5 and 6) The Ion 5/6 meter is capable of up to 3-point ion calibration (minimum 2 point) with standard solutions to ensure accuracy across the entire range of the meter. To exit calibration after you have first entered into ion calibration, press CAL key again.

  • Page 15: Multi-Point Ion Calibration

    Instruction Manual pH 5/6 & Ion 5/6 3.3.1 Multi-point Ion Calibration 1. In case if you need to start calibration using 1.0 ppm standard solution, you can skip the 0.1 ppm calibration option (as mentioned * below). 2. For this instance let’s take 1.0 ppm calibration. To begin, pour a known 1.0 ppm standard solution into a clean container.
  • Page 16 Instruction Manual pH 5/6 & Ion 5/6 9. Press ENTER key to confirm 2 point calibration (e.g. 10.0 ppm) and the display will show the next calibration option, 100.0 ppm. To exit from 2-point calibration, press CAL key and the LCD shows “PXX mV” momentarily which is the ISE slope in mV value.

  • Page 17: Millivolt (Mv) Calibration (For Ph 6 Only)

    Instruction Manual pH 5/6 & Ion 5/6 3.4 Millivolt (mV) Calibration (for pH 6 only) mV calibration is performed for ORP or Redox measurements, where you can adjust its mV value as a base value for measurements. 1. Press MODE key to enter mV mode, the LCD displays “mV”. 2.

  • Page 18: Temperature Calibration

    Instruction Manual pH 5/6 & Ion 5/6 3.5 Temperature Calibration 3.5.1 With Temperature probe The temperature probe (EC-PH5-TEM01P/ 35613-05) provided with the meter is factory-calibrated. Over time, temperature calibration may drift and require calibration. If there is a need to replace with the new probe you should calibrate the temperature probe prior to pH calibration.

  • Page 19: Without Temperature Probe (No Atc)

    Instruction Manual pH 5/6 & Ion 5/6 3.5.2 Without Temperature probe (no ATC) If no temperature probe is used, the meter compensates for pH response based on a new calibrated temperature value manually set by you or at 25.0 C (factory default). 1.

  • Page 20: Measurement

    Instruction Manual pH 5/6 & Ion 5/6 4. MEASUREMENT 4.1 Taking Measurements 1. Before measurement, rinse pH/ORP electrode or Ion Selective Electrode (ISE) and temperature probe (except Ion 5) thoroughly with tap or distilled water to remove any impurities stuck onto the bodies of probes. 2.

  • Page 21: Electrode Care And Maintenance

    Instruction Manual pH 5/6 & Ion 5/6 5. ELECTRODE CARE AND MAINTENANCE For best results, always keep the ISE capped dry and pH/ORP electrode bulb wet. Store the pH/ORP glass bulb with pH electrode storage solution. Other pH buffers are also suitable. NEVER use deionised water for storage. Wash the probes thoroughly with distilled water after each use.

  • Page 22: Specifications

    Instruction Manual pH 5/6 & Ion 5/6 7. SPECIFICATIONS Model pH 5 pH 6 Ion 5 Ion 6 • • Ion Range 0.01 to 1999 ppm • • Resolution 0.01 ppm for 0.01 to 0.99 ppm; 0.1 ppm for 1.0 to 199.9 ppm; 1 ppm for 200 to 1999 ppm •...

  • Page 23: Accessories

    Instruction Manual pH 5/6 & Ion 5/6 8. ACCESSORIES Replacement Meter and Meter accessories Item Eutech Instruments Oakton Instruments Ordering Code No. Ordering Code No. Epoxy-body pH Combination EC-FC72521-01B 35801-00 Electrode, Single Junction, 12 x 110 mm (1m cable length)).
  • Page 24 Instruction Manual pH 5/6 & Ion 5/6 Calibration Solutions Item Eutech Instruments Oakton Instruments Ordering Code No. Ordering Code No. pH 4.01 buffer solution, 480 ml EC-BU-4BT 00654-00 bottle (1 pint) pH 7.00 buffer solution, 480 ml EC-BU-7BT 00654-04 bottle (1 pint) pH 10.01 buffer solution, 480 ml...

  • Page 25: Warranty

    If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return – freight pre-paid – and correction will be made without charge. Eutech Instruments/ Oakton Instruments will determine if the product problem is due to deviations or customer misuse.

  • Page 26: Return Of Items

    Instruments will not be responsible for damage resulting from careless or insufficient packing. A restocking charge will be made on all unauthorized returns. NOTE: Eutech Instruments Pte Ltd/ Oakton Instruments reserves the right to make improvements in design, construction, and appearance of products without notice.
  • Page 27 For more information on Eutech Instruments/ Oakton Instruments’ products, contact your nearest distributor or visit our website listed below: Oakton Instruments Eutech Instruments Pte Ltd. Distributed by: P.O Box 5136, Blk 55, Ayer Rajah Crescent, Vernon Hills, IL60061, USA #04-16/24 Singapore 139949...
