LEDs

On the top of the print server are Status and LAN Activity LEDs:
If the And the
Status Activity
LED is... LED is...
Off Off
On Off
On Blinking
Off On (Solid)
Blinking Off
On On
Between the Status and LAN Activity LEDs is the Test button, used
to print a configuration page. See Chapter 2 for more information.
On the back of the HP JetDirect 300X (J3263A) and 500X (J3265A)
Print Servers, there are LEDs that indicate the operating speed
(10 Mbps or 100 Mbps) (Figure 1.3). (This applies to 10Base-T and
100Base-TX networks only.)
If the And the
10 (left) 100 (right)
LED is... LED is...
Off Off
On Off
Off On
Auto-negotiation
Switches

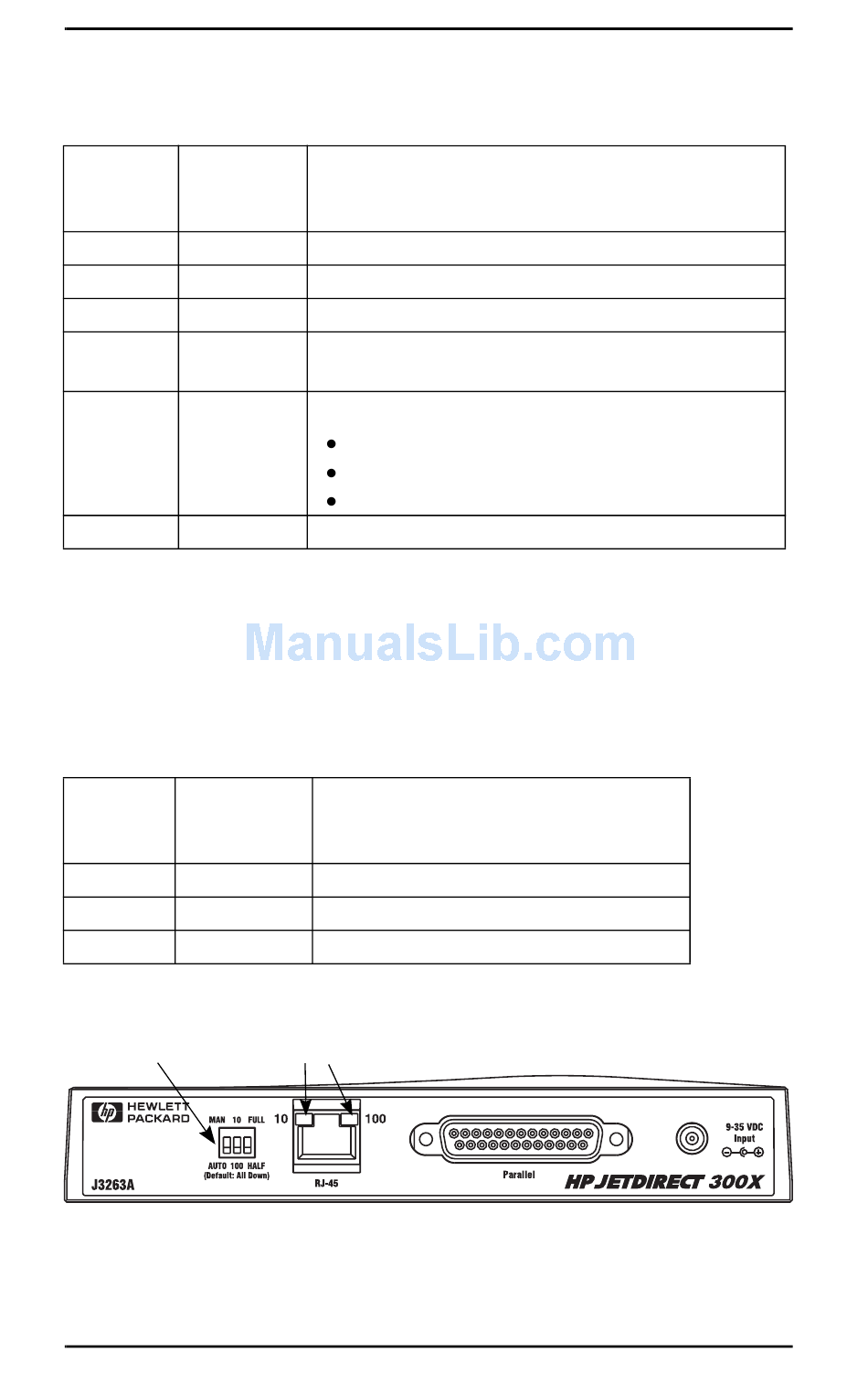

Figure 1.3 Back of HP JetDirect 300X Print Server. (For the HP JetDirect
500X, the LEDs are also located next to the RJ-45 port.)
1-8 Product Overview
Then the print server is...
Not receiving power.
On; no LAN activity detected.
On; LAN activity detected.
Encountering a fault during self-test or
operation.
Encountering one of the following conditions:
running a self-test
not configured.
not able to attach to the network.
On; heavy LAN activity detected.
Then the print server has...
No link established.
Link established at 10 Mbps.
Link established at 100 Mbps.
10 & 100
LEDs
