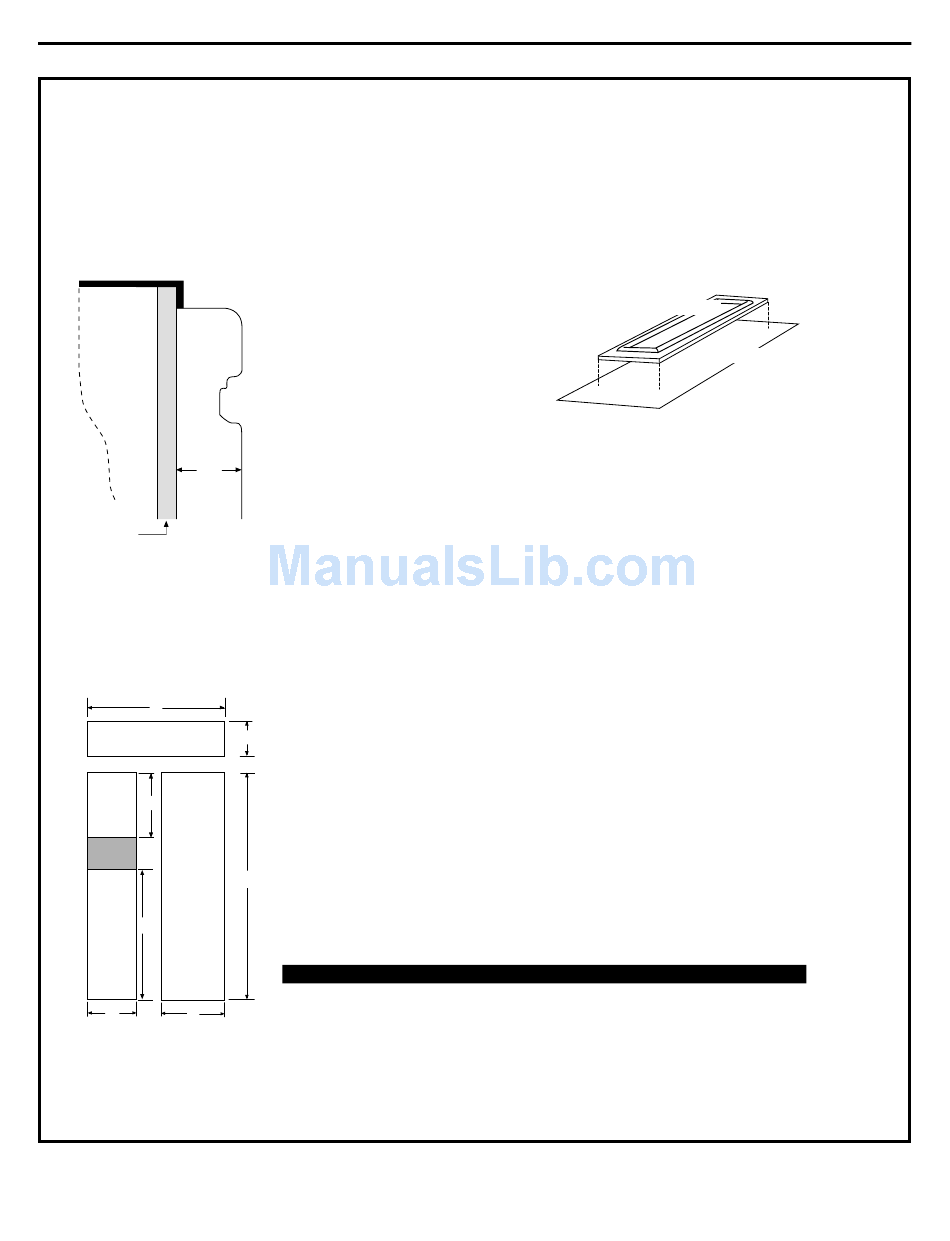

3/4" CUSTOM PANEL DIMENSIONS
For a more custom appearance, 3/4" custom
panels may be installed on trimmed models.
The custom panel must be cut to dimensions
specified below. The custom panel then slides
into the trim with the same procedure
described on page 31.
Door
3/4"
Custom
Panel
3/4"
1/4"
Backer
Panel
.250 + .750 = 1.000 Maximum Total Panel Thickness
A
Grille Panel
F
Dispenser
Cutout
G
Freezer
Fresh Food
Panel Panel
D
E
IMPORTANT NOTE: Maximum total weight for
assembled Fresh Food panel is 70 pounds and
30 pounds total for Freezer panels.
Installation Instructions
B
C
Front Panel Dimensions (in inches)
A
42" Models 39-15/16 10-3/4
48" Models 45-31/32 10-3/4
NOTE: Left-to-right offset is not
always equal to top-to-bottom offset.
B C D
67-7/8 16-7/16 22-11/32
67-7/8 18-15/32 26-15/32
22
Custom Panel
Backer Panel
E F G
17-13/16 35-5/32
17-13/16 35-5/32
