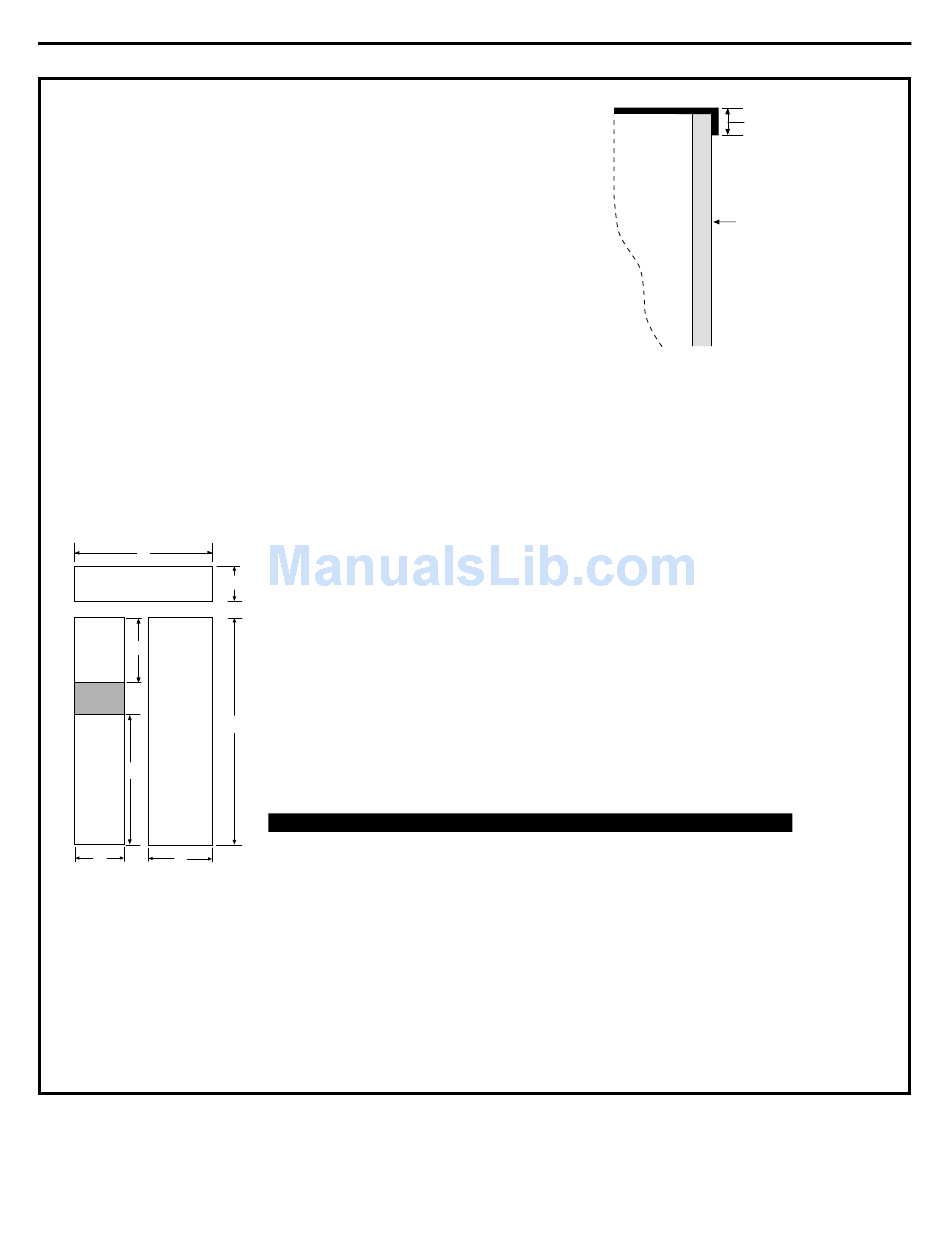

1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they
must be cut to the dimensions shown. The
panels will slide into the frame on the door
and grille.
A
Grille Panel
B
F
Dispenser
Cutout
C
G
Freezer
Fresh Food
Panel Panel
D
E
IMPORTANT NOTE: Dispenser Trim
The refrigerator is supplied with factory installed
dispenser trim.
• If panel is less than 1/4" thick, a noticeable gap will be
created around the dispenser trim. Foam tape may be
applied on the door to improve the fit.
• If panel is more than 1/4" thick, the panel will not fit
behind the trim.
Installation Instructions
Front Panel Dimensions (in inches)
A B
42" Models 39-15/16 10-3/4
48" Models 45-31/32 10-3/4
Door
IMPORTANT NOTE: Maximum weight
for Fresh Food panel is 70 pounds and
30 pounds total for Freezer panels.
C D E
67-7/8 16-7/16 22-11/32
67-7/8 18-15/32 26-15/32
21
5/16"
Trim
Reveal
1/4"
Panel
F G
17-13/16 35-5/32
17-13/16 35-5/32
