Controls

Home Generator
Read this operator's manual and Important Safety Instructions before operating your generator.
Compare the illustration with your generator to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
A
B
C
D
E

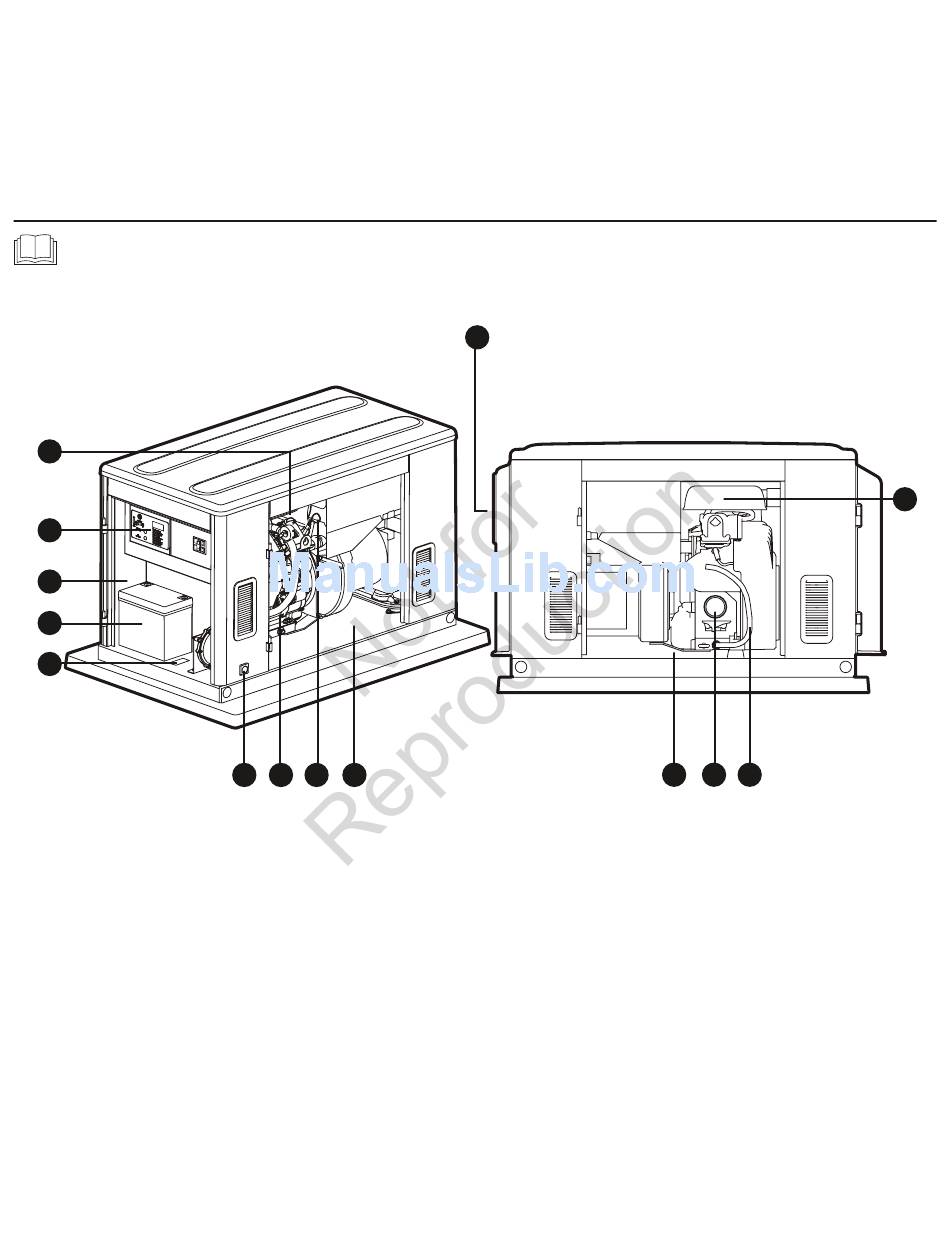

Generator is shown with access covers removed for clarity.
A ‑ Oil Fill Cap — Remove to service the engine with
recommended oil.
B ‑ Control Panel — Used for various test, operation and
maintenance functions. See System Control Panel.
C ‑ Control Panel Door opening — Provides access to control
panel and battery.
D ‑ Battery (installer supplied) — 12 Volt DC, valve-regulated,
rechargeable battery provides power to start the engine.
E ‑ ID Label (located on base) — Identifies unit by model and
serial number.
F ‑ Fuel Inlet — Fuel supply is connected here.
F G H J
P
G ‑ Engine Label — Identifies engine model and type.
H ‑ Oil Dip Stick — Used to check the engine oil level.
J ‑ Oil Fill Door opening — Provides access for engine servicing.
K ‑ Oil Drain Door opening — Provides access for
engine servicing.
L ‑ Oil Filter — Filters engine oil to prolong system life.
M ‑ Oil Drain Hose — Provided to facilitate oil changing.
N ‑ Air Cleaner — Protects engine by filtering dust and debris
out of intake air.
P ‑ Exhaust Port — High-performance muffler lowers engine
noise to comply with most residential codes.
K L M
N
