2 Digia II
User Manual

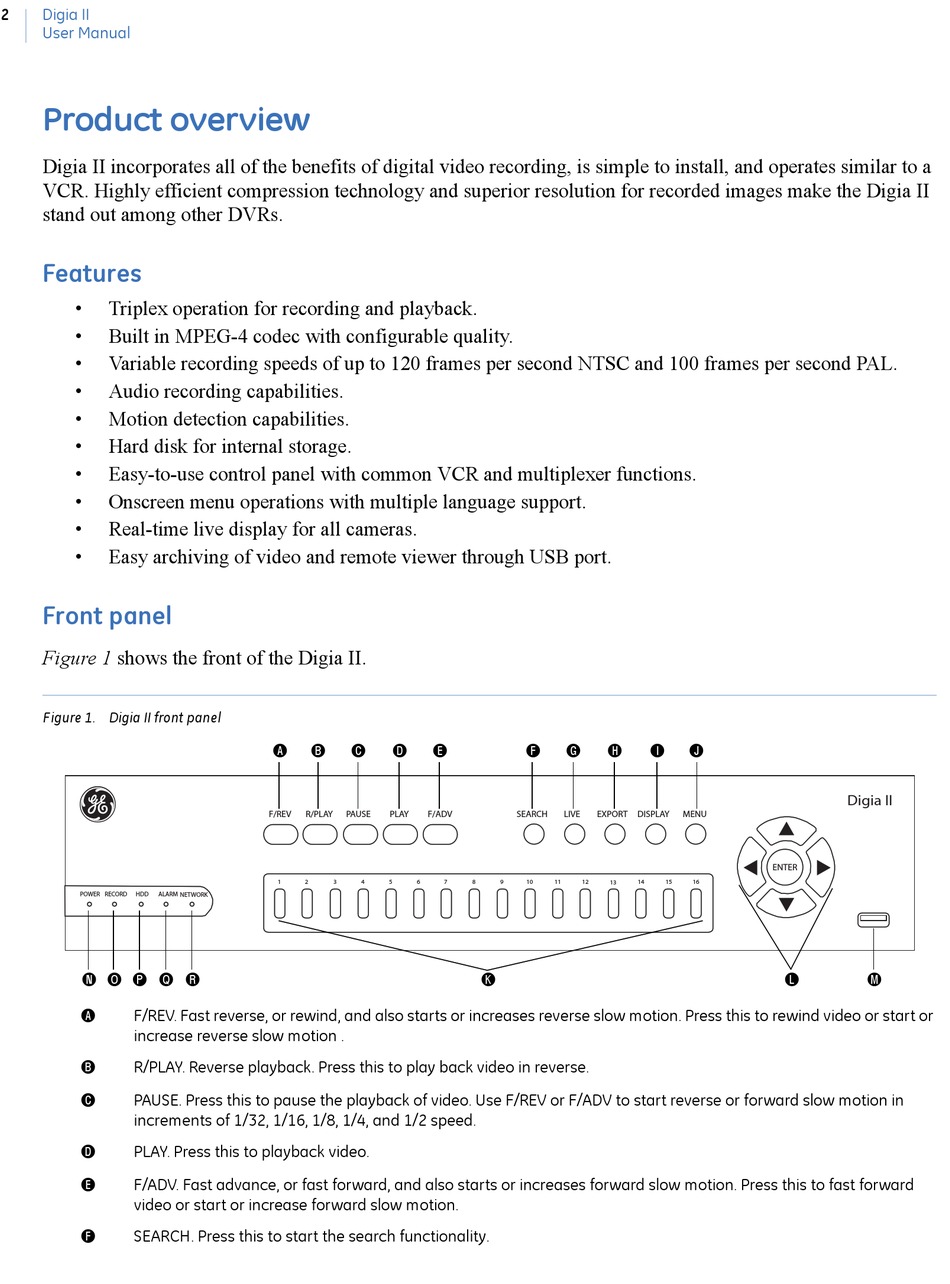

Product overview

Digia II incorporates all of the benefits of digital video recording, is simple to install, and operates similar to a
VCR. Highly efficient compression technology and superior resolution for recorded images make the Digia II
stand out among other DVRs.

Features

• Triplex operation for recording and playback.
• Built in MPEG-4 codec with configurable quality.
• Variable recording speeds of up to 120 frames per second NTSC and 100 frames per second PAL.
• Audio recording capabilities.
• Motion detection capabilities.
• Hard disk for internal storage.
• Easy-to-use control panel with common VCR and multiplexer functions.
• Onscreen menu operations with multiple language support.
• Real-time live display for all cameras.
• Easy archiving of video and remote viewer through USB port.

Front panel

Figure 1 shows the front of the Digia II.
Figure 1. Digia II front panel
g
POWER RECORD HDD ALARM NETWORK
N O P Q R
F/REV. Fast reverse, or rewind, and also starts or increases reverse slow motion. Press this to rewind video or start or
A
increase reverse slow motion .
R/PLAY. Reverse playback. Press this to play back video in reverse.
B
PAUSE. Press this to pause the playback of video. Use F/REV or F/ADV to start reverse or forward slow motion in
C
increments of 1/32, 1/16, 1/8, 1/4, and 1/2 speed.
PLAY. Press this to playback video.
D
F/ADV. Fast advance, or fast forward, and also starts or increases forward slow motion. Press this to fast forward
E
video or start or increase forward slow motion.
SEARCH. Press this to start the search functionality.
F
A B C D E
F/REV R/PLAY PAUSE PLAY F/ADV
1 2 3 4 5 6 7
F G H I
SEARCH LIVE EXPORT DISPLAY
8 9 10 11 12 13 14
K
J
MENU
ENTER
15 16
L
Digia II
M
