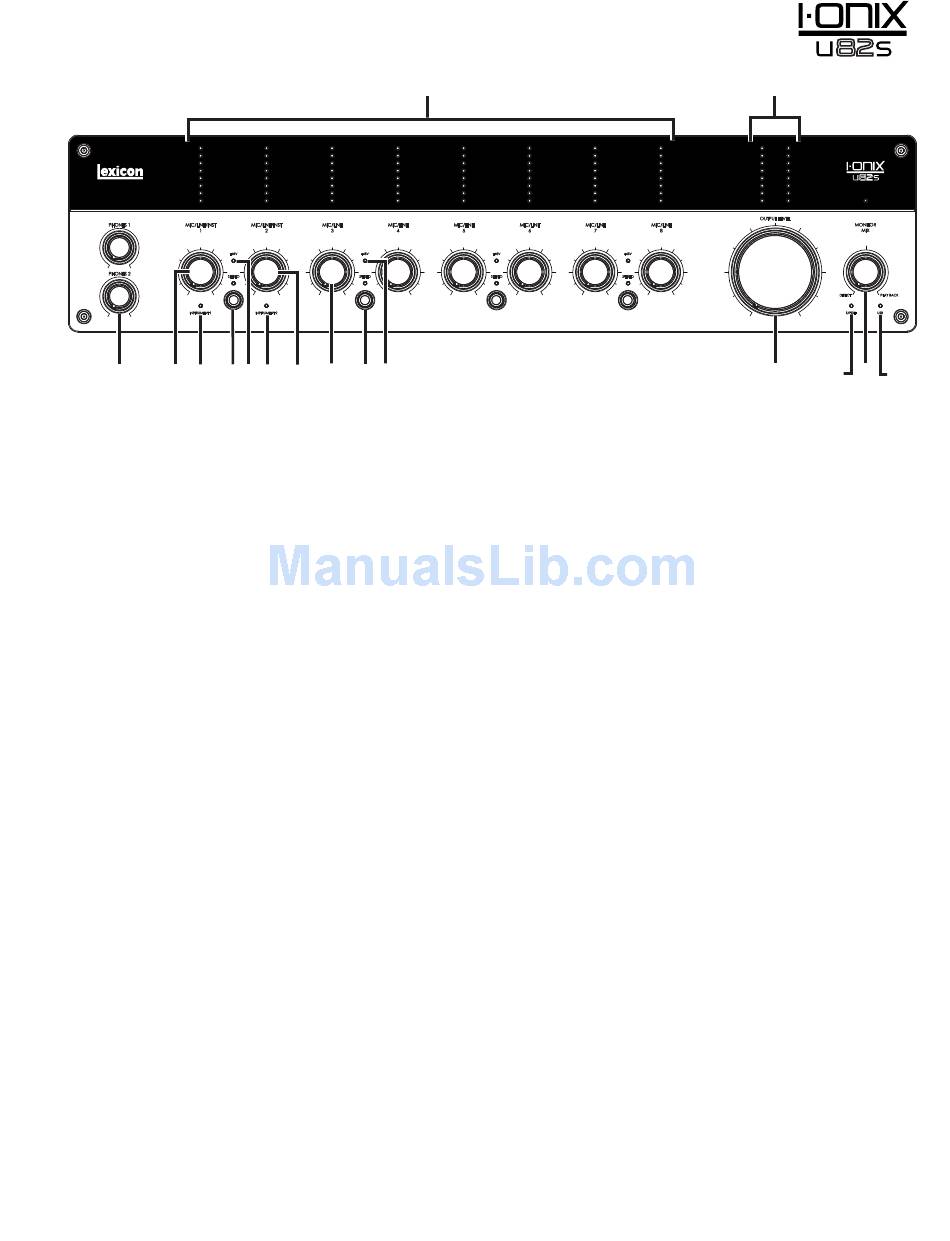

front Panel

3 4 5 6 7 8 9 10 1112
1. InPut LeveL LeDS
These indicate signal level for each input by showing the remaining head-
room before clipping. Their values are:
Red Clipping
Yellow –3dB
Green –6dB
Green –9dB
Green –12dB
Green –18dB
Green –24dB
Green –30dB
2. MOnItOr MIX LeveL LeDS
These indicate signal level for each monitor mix output by showing the
remaining headroom before clipping. Their values are:
Red Clipping
Yellow –4dB
Green –8dB
Green –13dB
Green –17dB
Green –25dB
Green –34dB
Green –42dB
3. PhOneS 1 anD PhOneS 2 LeveL KnOBS
Adjust headphone output signal level here. The Phones 1 knob controls the
Phones 1 level, and the Phones 2 knob controls the Phones 2 level.
4. MIc/LIne/InSt 1 GaIn KnOB
Adjusts the input gain level for Mic/Line 1 or Instrument 1.
5. InStruMent 1 LeD
Lights when a 1/4" plug is inserted into the Instrument 1 jack on the right
side panel.
