Information on the sensor label

315549/A
The sensor label provides the following information.

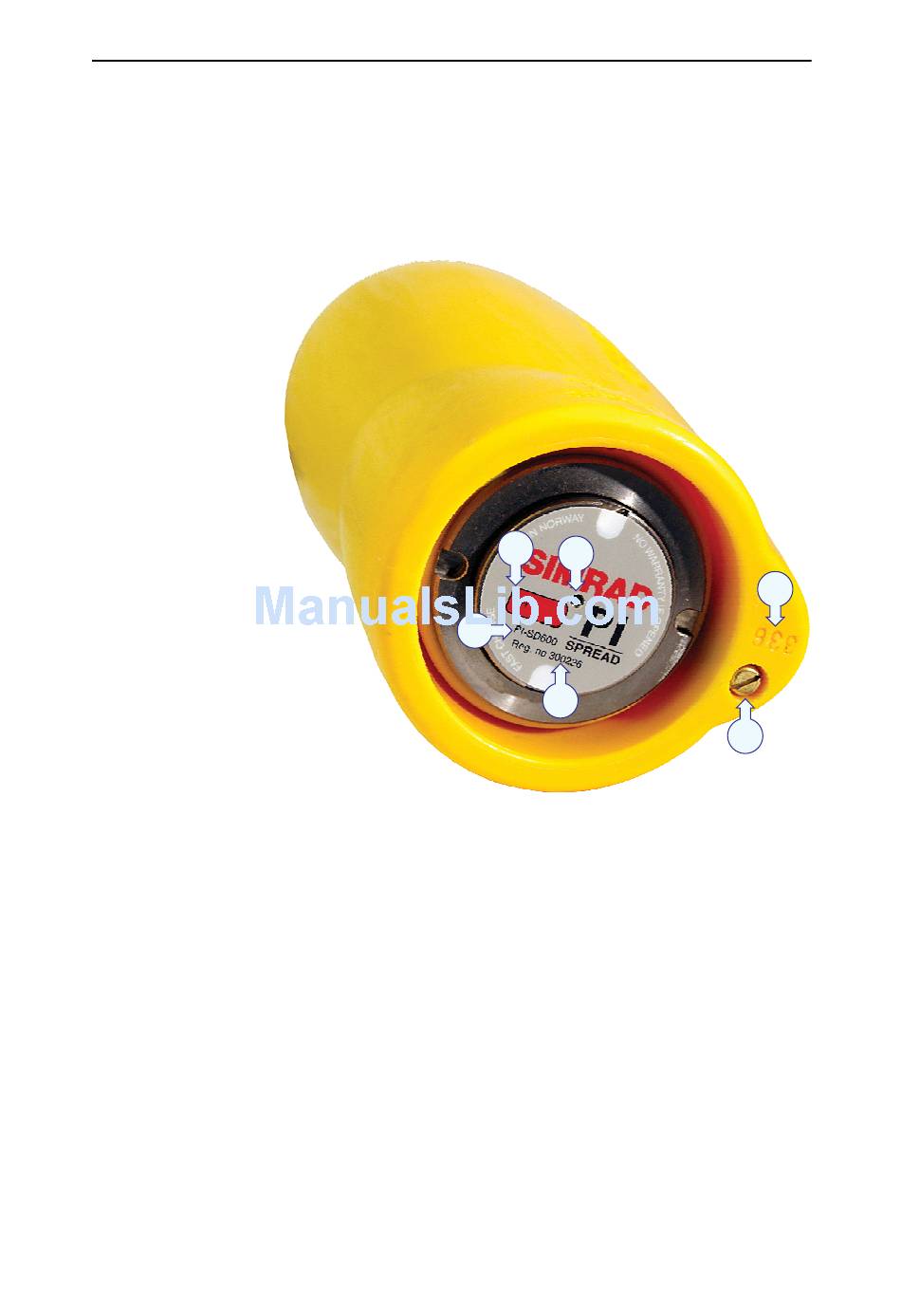

Figure 3 The PI Spread/Depth sensor label
(CD012200N)
(A) Channel identification. You must write down the channel
currently used by the sensor to communicate with the PI system.
The red background colour on the label is chosen to remind you
that the sensor is mounted on the port trawl door.
(B) This information identifies the sensor type. Three types are
available:
• PI-SD300: PI Spread/Depth for maximum depth 300 m
• PI-SD600: PI Spread/Depth for maximum depth 600 m
• PI-SD1000: PI Spread/Depth for maximum depth 1000 m
(C) Order number.
(D) Opening for the water to access the pressure sensor.
(E) Water switch. This is a sacrificial bolt. Check it from time to
time to make sure that it has not worn out.
(F) The sensor's serial number.
A
D
B
C
Introduction
F
E
