RichAuto S & T Co., Ltd
JK0801-A Connection Board

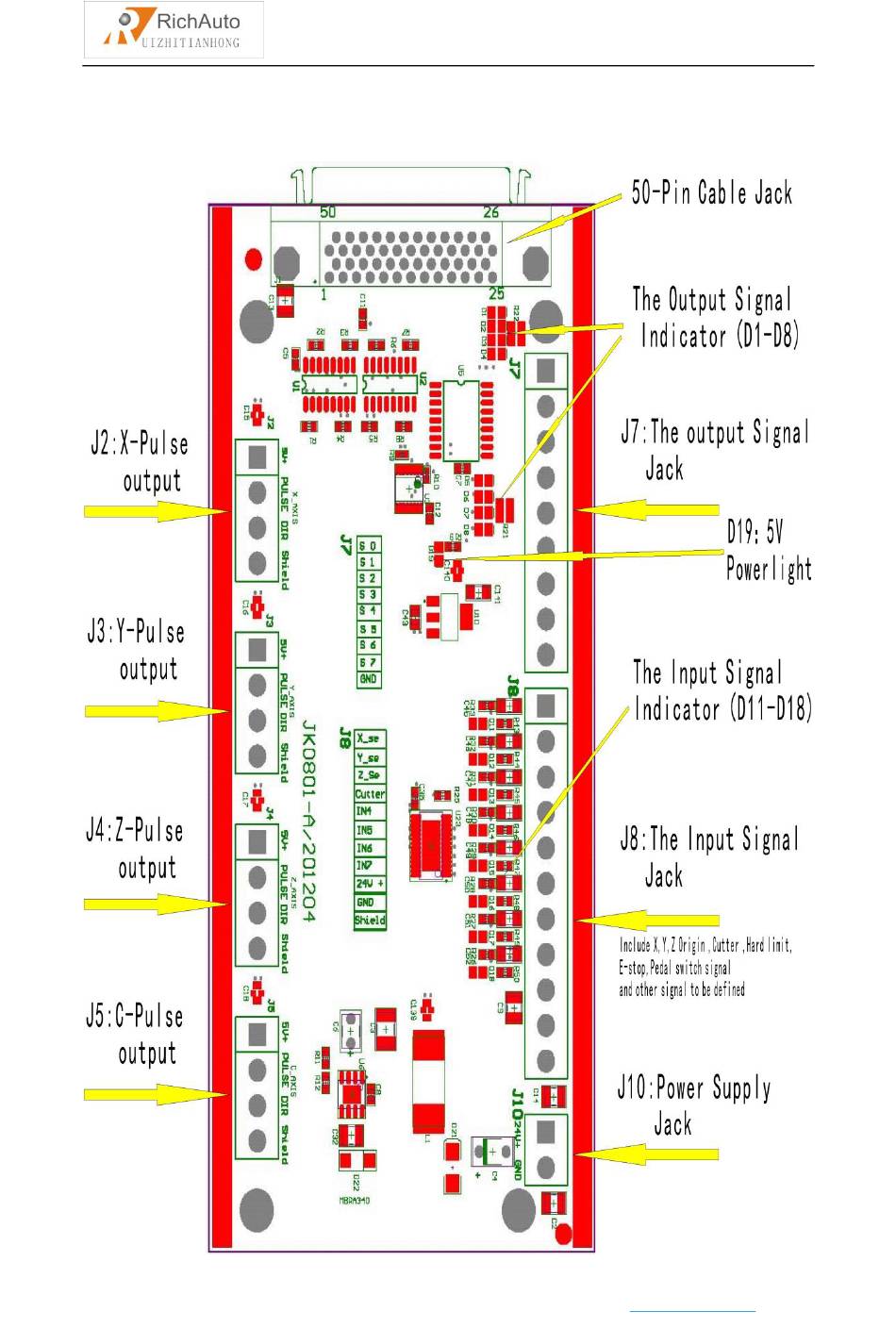

Board sketch map(50-pin upwards)
Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China
Tel：010-53275118
Fax：010-53275110/53275111
Web
site：www.richnc.com.cn
Advertisement
Related Manuals for RichAuto JK0801-A
Summary of Contents for RichAuto JK0801-A
- Page 1 RichAuto S & T Co., Ltd JK0801-A Connection Board Board sketch map(50-pin upwards) Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118 Fax：010-53275110/53275111 site：www.richnc.com.cn...
- Page 2 RichAuto S & T Co., Ltd I/O State: Port label Port Pin functions Notes definition Definition and parameters System main power supply terminal Power area： System System ， Main main power interface board give DC DC10V~DC24V/3A 5V for system。When F3...
- Page 3 RichAuto S & T Co., Ltd Port label Port Pin functions Notes definition Definition and parameters Were Z-axis drive common impose positive anode power supply voltage on this pin signal terminal 5V output output port Pulse signal Z-axis drive pulse signal...
- Page 4 RichAuto S & T Co., Ltd Port label Port Pin functions Notes definition Definition and parameters Y1： connect Control Arc switch by Output Arc switch relay Low level signal Y2： speed 1 Connect to inverter to Output control speed Low level signal Y3：...
- Page 5 RichAuto S & T Co., Ltd Port Port Pin Definition Pin functions Notes label definition and parameters X1:X_se：X origin X origin sensor signal Input level sensor Signal Input input terminal signals X2:Y_se：Y origin Y origin sensor signal Input low level...
- Page 6 RichAuto S & T Co., Ltd Port label Port Pin functions Notes definition Definition and parameters Status X origin status indicator Light after indicator power. Input Status Y origin status indicator level signal, indicator lights Status Z origin status indicator...
- Page 7 RichAuto S & T Co., Ltd Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118 Fax：010-53275110/53275111 site：www.richnc.com.cn...
- Page 8 RichAuto S & T Co., Ltd Stepper Motor Driver&NPN(NO): Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118 Fax：010-53275110/53275111 site：www.richnc.com.cn...
- Page 9 RichAuto S & T Co., Ltd Different Stepper Motor Drivers: Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118 Fax：010-53275110/53275111 site：www.richnc.com.cn...
- Page 10 RichAuto S & T Co., Ltd Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118 Fax：010-53275110/53275111 site：www.richnc.com.cn...
- Page 11 RichAuto S & T Co., Ltd YASKAWA SERVO MOTOR: Input Control Terminal J8 sensor input ○ Mechanical(Y,Z are the same as X) Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118...
- Page 12 RichAuto S & T Co., Ltd NPN(NO): Y and Z are the same as X ○ PNP(NO) : X and Z are the same as Y ○ Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118...
- Page 13 RichAuto S & T Co., Ltd 2 X5-X8 Driver alarm,Hard limit,E-stop, Pedal Switch signal J 10 Main power wiring: Output Control Terminal J2 X pulse signal wiring （Y、Z the same as X） Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118...
- Page 14 RichAuto S & T Co., Ltd J7 output control terminal 1、 2 axis- Cylinder delay 2、 2 axis Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118 Fax：010-53275110/53275111 site：www.richnc.com.cn...
- Page 15 RichAuto S & T Co., Ltd 3、 3 axis Output Y5-Alarm LED and Y6-WORK LED: Add: 5th floor, No.4 building, No 4. Yard, life Rd, life science park, beiqing St., changping district Beijing, China Tel：010-53275118 Fax：010-53275110/53275111 site：www.richnc.com.cn...
