LED Bulkhead Wall Lamp
Models: 65-113, 65-114
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
WARNING: To reduce the risk of electrical shock, fire, or injury to persons; read and follow all warnings and installation instructions
before installing. All installation should be performed by a qualified electrician.
RISK OF ELECTRIC SHOCK: Prior to inspection and installation turn power off via circuit breaker panel. Only to be performed
by certified personnel conformed to local electrical and codes.
RISK OF FIRE: This fixture is rated for 100–277 VAC at 60Hz only installation must be performed to the following instructions
containing in this manual.
FOR YOUR SAFETY: While performing installations described,
gloves, safety glasses or goggles should be worn.
Do not make or alter any open holes in an enclosure of wiring
or electrical components during installation.
To prevent wiring damage or abrasion, do not expose wiring
to edges of sheet metal or other sharp objects.
Do not alter, relocate, or remove wiring, lampholders, power
supply, or any other electrical component.
SUITABLE FOR WET LOCATIONS.
INSTALLATION

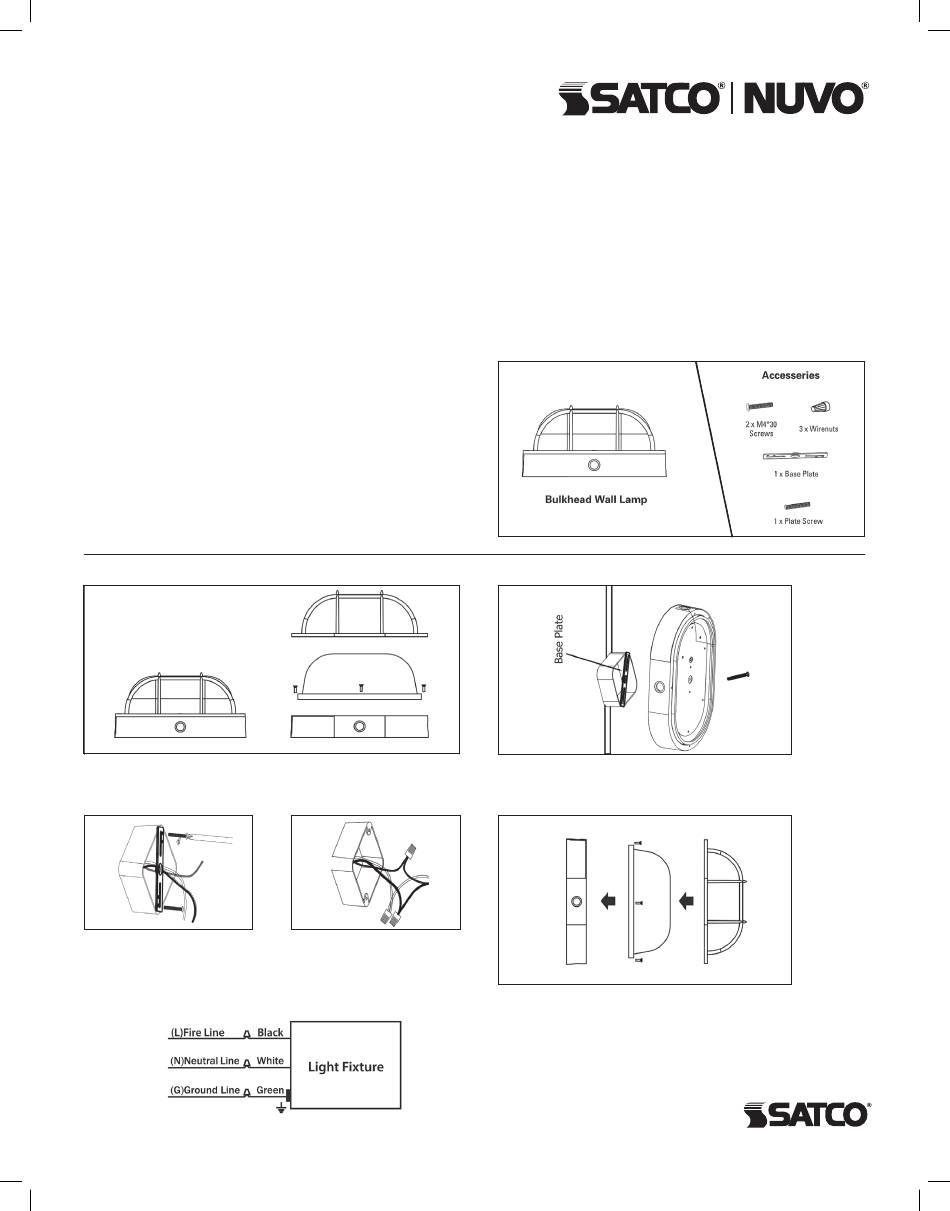

Exploded view of completed
assembly with components.
STEP 1. Take out led lamp and make sure it is intact. Separate
the lamp shade and the base.
STEP 2. Attach the Base Plate
to the junction box with the
M4 screws.
© Copyright 2017 Satco Products, Inc. 3/17
STEP 3. Connect the LED
fixture to 100–277 VAC 60Hz
in accordance to local codes,
support fixture while making
connections.
IN THE BOX
STEP 4. Align mounting holes of lamp body to base
plate and secure with provided fasteners.
STEP 5. Install lamp shade back to the base.
