NOTE:
Please consult a qualified electrician if you are not certain of the installation or servicing.
CAUTION:
Before starting the installation or servicing, disconnect power by turning off the circuit breaker
or by removing the fuse at the fuse box.

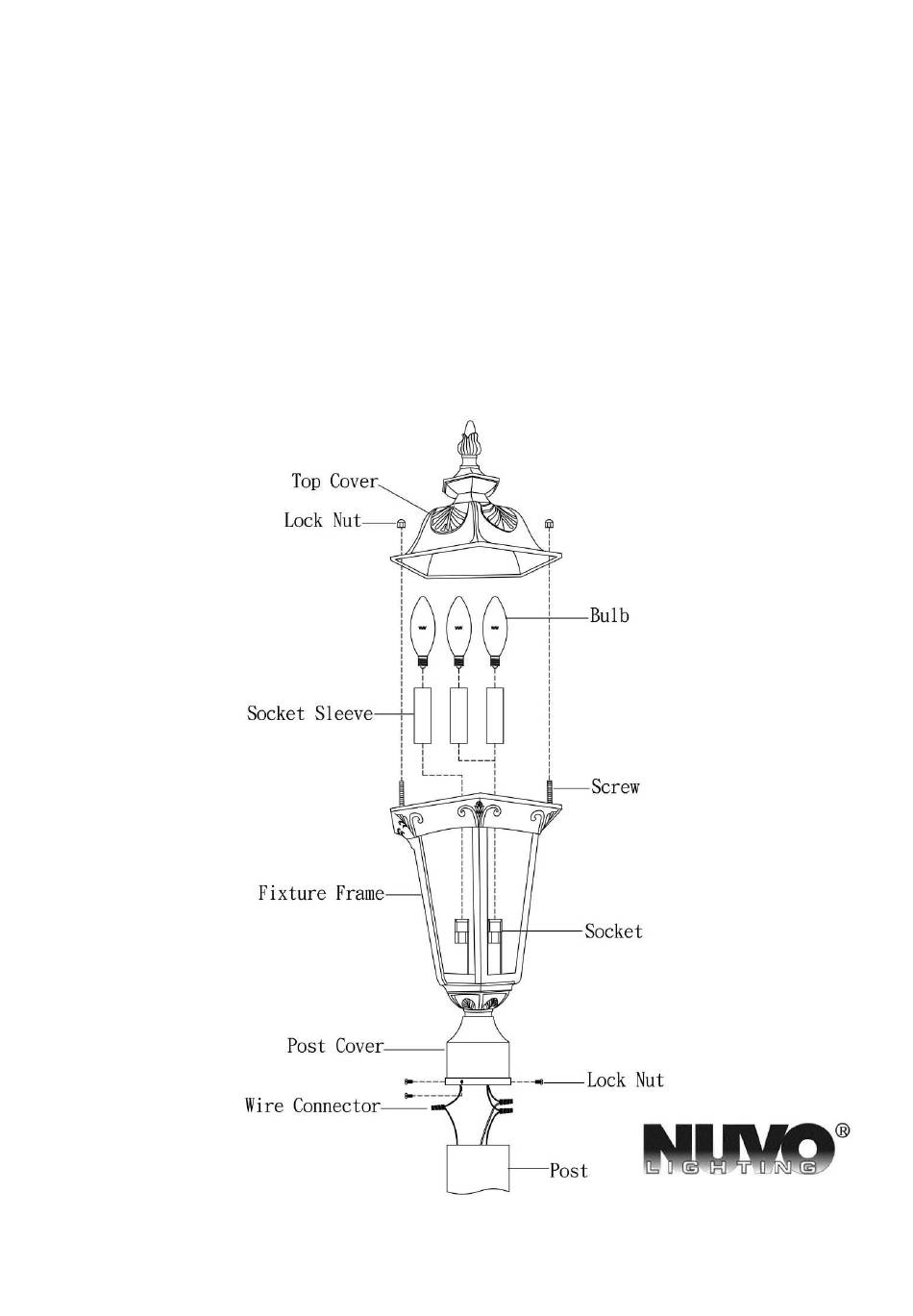

1.
Carefully unpack the fixture, lay out all parts on a clean surface.
2.
Connect wires white to white and black to black, and then tie ground wires from the fixture and from the
Post together. Cover the connections using the provided Wire Connectors.
3.
Fasten the Post Cover onto Post by using the Lock Screws.
4.
Attach the Socket Sleeves to the Sockets. Install bulbs (Not included).
5.
Place the Top Cover over the Screws of Fixture Frame, using 2 Lock Nuts to secure it.
6.
Turn on power.
ASSEMBLY INSTRUCTION
SKU#60/2040
A Satco Product
