Satco Nuvo 60/5691 Assembly Instruction

NOTE:

Please consult a qualified electrician if you are not certain of the installation or service.

CAUTION:

Before starting the installation or service, disconnect the power by turning off the circuit
breaker or by removing the fuse at the fuse box.

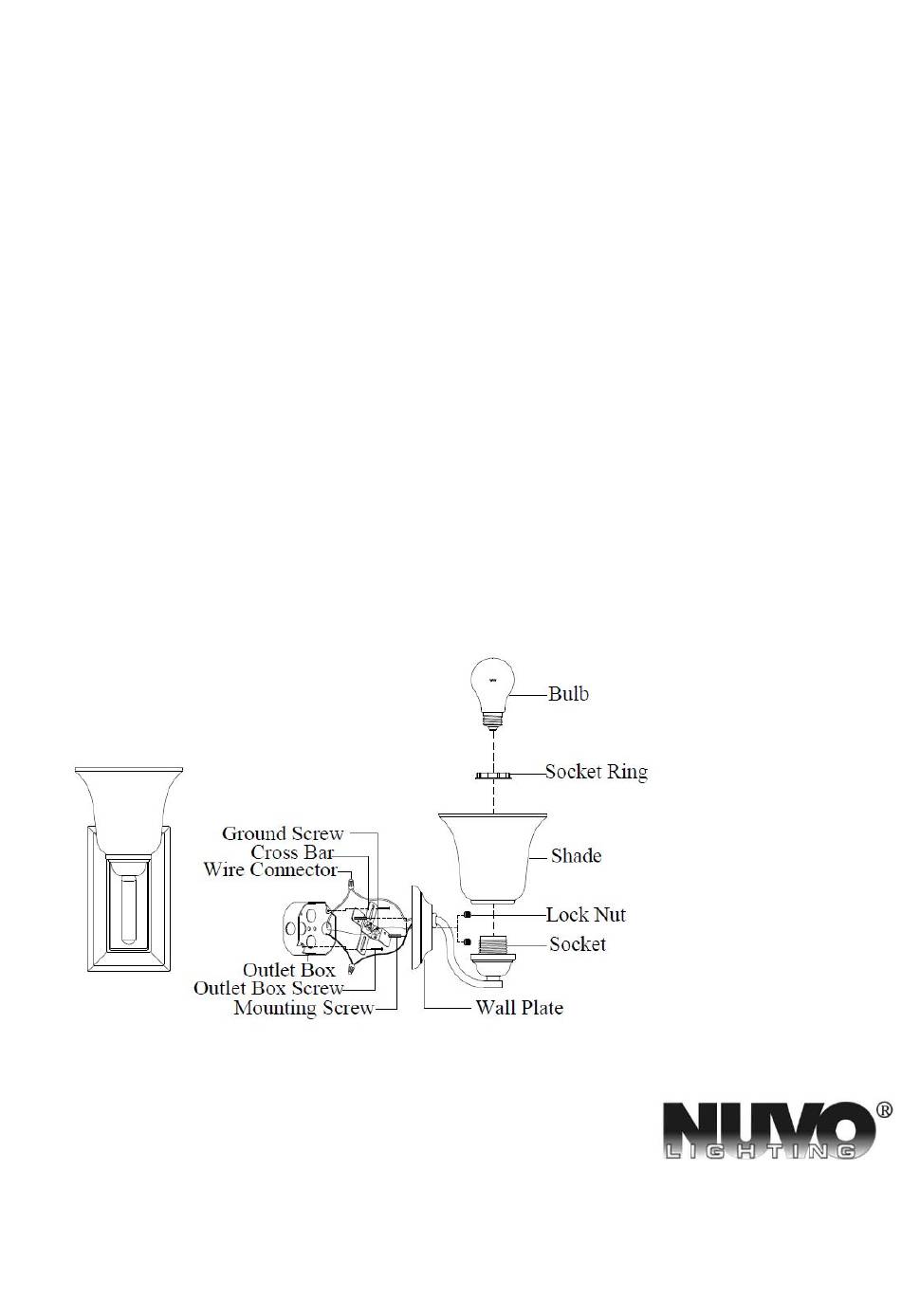

1. Carefully unpack the fixture, lay out all parts on a clean surface.
2. Fasten the cross bar onto the outlet box by using provided 2 outlet box screws.
3. Tie ground wire from outlet box and from fixture to the ground screw on the cross bar. Connect white
wire from fixture to white wire (neutral wire) from supply circuit. Connect black wire from fixture to
black wire (live wire) from supply circuit. Cover connections using provided wire connectors.
4. Place the fixture body to the wall by aligning the protruding mounting screws all the way through the
wall plate and tighten lock nuts to the mounting screws until the fixture body is held firmly against the
wall.
5. Unscrew the socket ring from the socket. Place the shade over the socket; refasten the socket ring to
secure the shade.
6. Install the bulb (Not included).
7. Turn on the power. This fixture can be installed as an up-light or a down-light position.
ASSEMBLY INSTRUCTION
SKU#60/5691, 60/5591
A Satco Product
