Satco Nuvo Lighting 60/639 Assembly Instruction

NOTE:
Please consult a qualified electrician if you are not certain of the installation.
CAUTION:
Before starting the installation, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box. Caulk to mounting surface at top and sides.

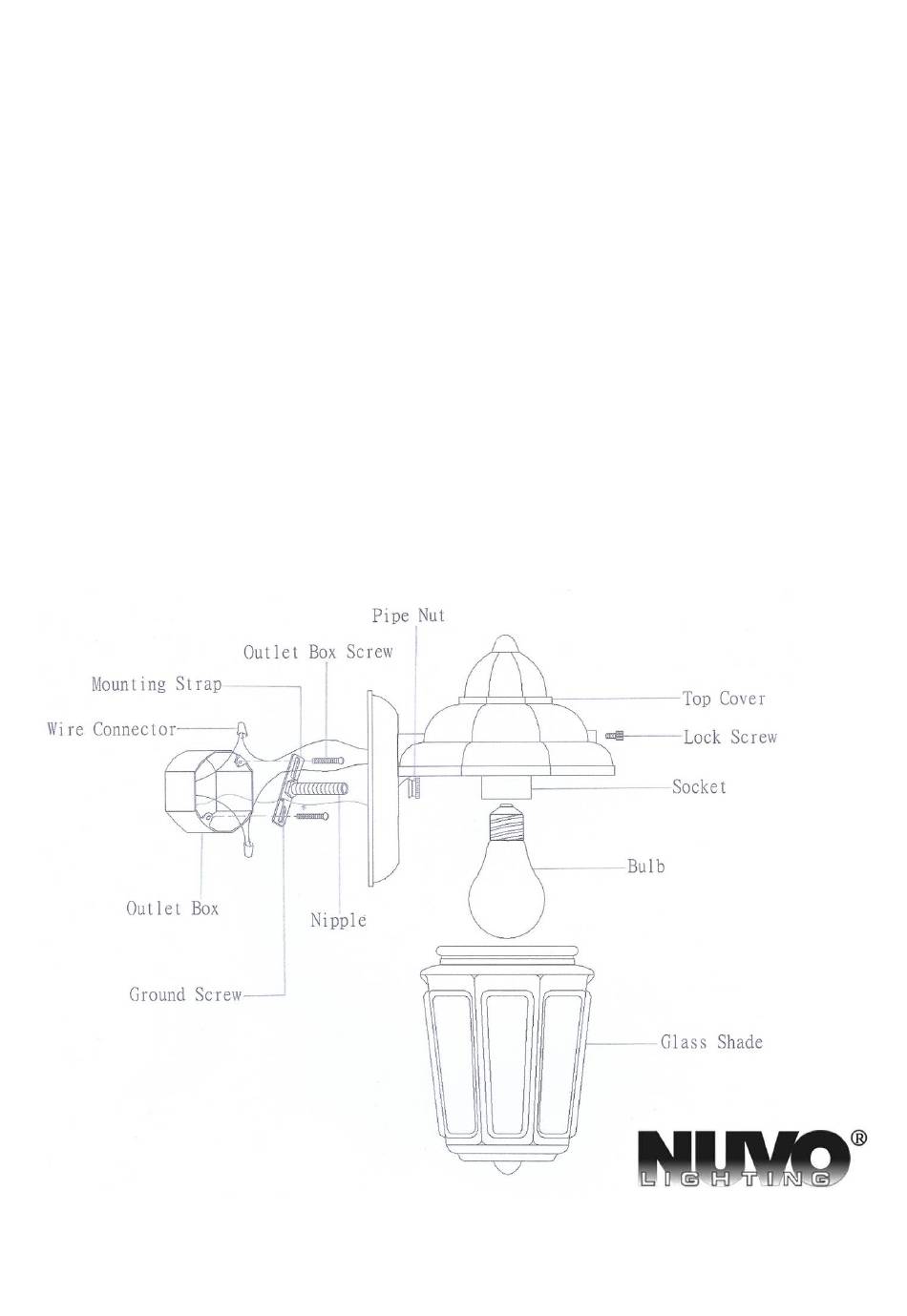

1. Fasten Nipple to Mounting Strap by screwing Hex Nut and adjust desired length.
2. Fasten Mounting Strap onto Outlet Box using 2 Outlet Box Screws.
3. Connect wires with white to white and black to black, cover the connections by using the Wire Connectors
provided. Take the ground wire from the house, wrap it around the Ground Screw on the Mounting Strap
so that the end of the ground wire is still loose, tighten the Ground Screw, and connect the ground wire
from the fixture to the loose end of the ground wire from the house by twisting the ends together with
pliers.
4. Place the Wall Plate against the wall by aligning the Nipple all the way through the Wall Plate and tighten
it using Pipe Nut provided.
5. Install bulb (Not included).
6. Tight the Glass Shade onto the Top Cover with the Lock Screw provided.
7. Turn on the power.
ASSEMBLY INSTRUCTION
SKU#60/639/640/641
A Satco Product
